Multi Spindle Heads

  • Custom Fixed Multi Spindle Heads
  • Custom Fixed Multi Spindle Heads
Custom Fixed Multi Spindle HeadsCustom Fixed Multi Spindle Heads

Custom Fixed Multi Spindle Heads

  • Max. Drill Size: 7.5mm 10mm or 15mm
  • Max. Tapper Size: M8 M10 or M15
  • No. of Spindle: 2-20
  • Type: Drilling or Tapping
  • Product description: Custom Fixed Multi Spindle Heads, AutomaticDrill have a large selection of multi spindle heads to satisfy your drilling & tapping needs, Multi-spindle equipment allow you to reduce the time needed to
  • INQUIRY

We are manufacture and suppliers of Multi Spindle Drill & Tapper Head that are fabrictaed using high grade raw material acquired from the trustworthy sources.The design comprises of helical gears that ensure noiseless and smooth operations.Our range of heads is used in a situation in which multiple drilling & tapping head is required on a compenent.

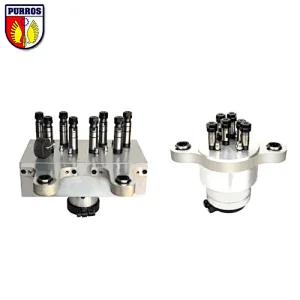

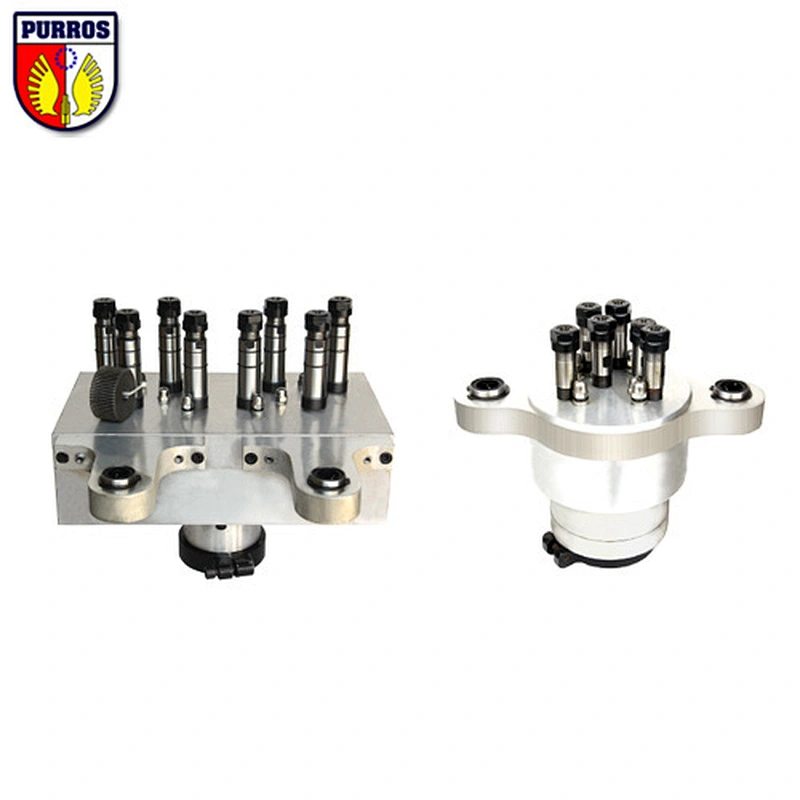

Custom 8 Spindle Fixed Multi-Drill Spindle Head

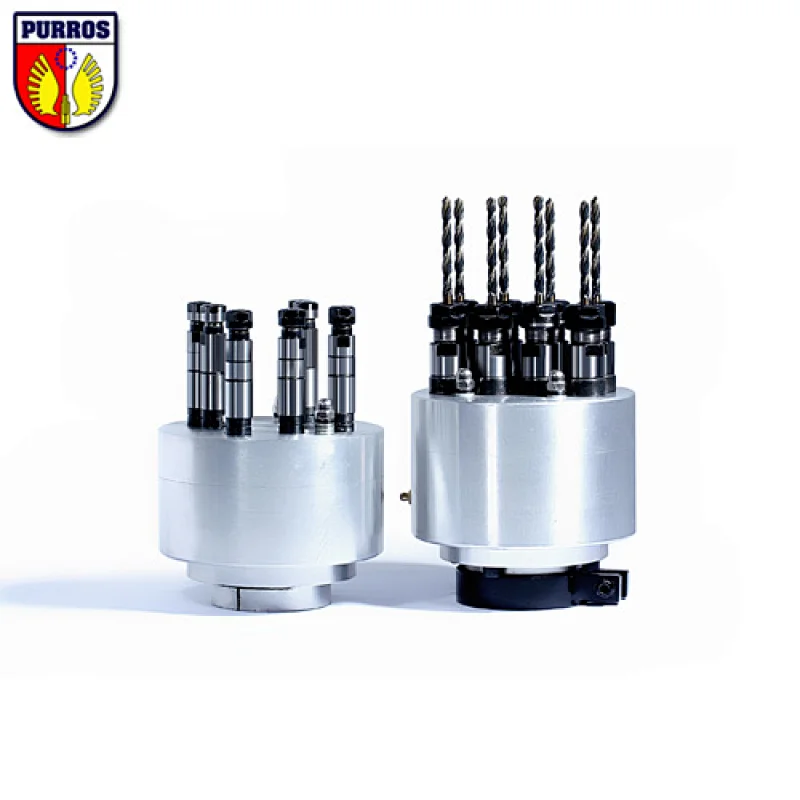

Fixed Multi Spindle Heads

Advantages & Features:

1.The Heads are designed to allow maximum efficiency, high production and low operating cost on a wide variety of jobs with quick delivery.
2.Designed suitable for most drill, tap or feed units.
3.Compact housings are made of aluminum casting for light weight.
4.Different spindle configurations available.
5.1:1 speed ratios.
6.Properly heat treated quiet, efficient helical gears and spindles for long life and smooth operation.
7.Extremely precise tolerances on all rotating parts.
8.Spindle design suitable for high precision industry standard ER collect system.
9.Micromatic scales for easy center distance adjustment.
10.Rigid bearing housing & short overhang spindle design for rugged operation & continuous use.
11.Can be mounted at any positio.

Inquiry Inputs from customer to understand requirement clearly:
1.Material to be machined.
2.Size of holes.
3.Number of holes.
4.Operation to be performed.
5.Center distance between holes.
6.Fixed center distance or adjustable Center distance.
7.Drawing/sketch of Hole pattern.
8.Spindle out put rpm.
9.Motor HP of Machine on which head to be mounted.

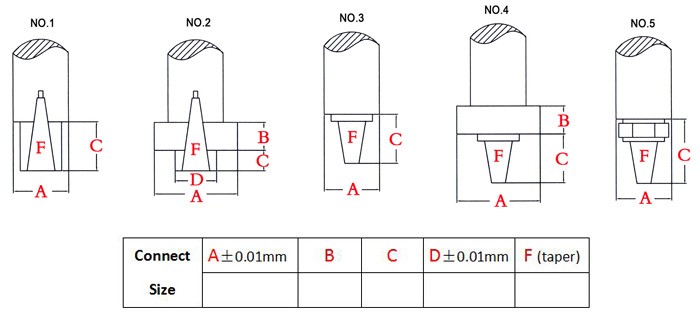

Connect Size

A: Spindle sleeve diameter
B: Spindle sleeve exposed length
C: Spindle rotating part exposed length
D: Spindle rotating part diameter
F: Connection type

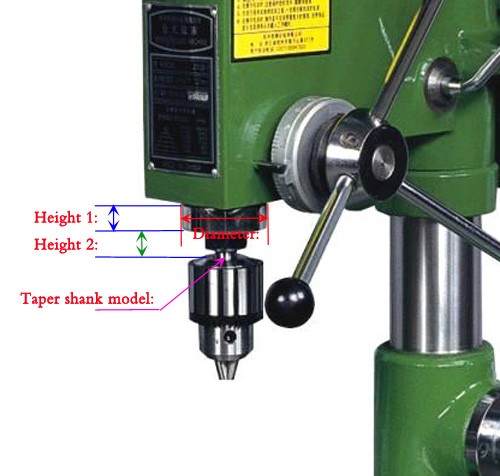

Bench Machine Connect Size

Please send Connect size(Diameter,Height 1,Height 2,Taper shank model) and bench drilling machine & tapping machine images to our email


Multi Spindle Heads apply to Special Purpose Machine

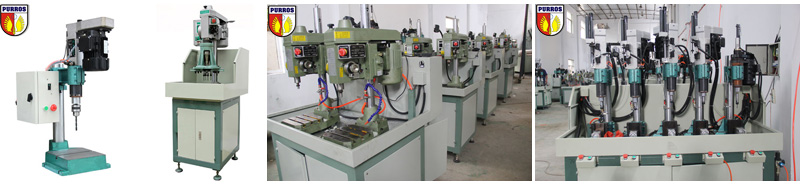

Multiple Drilling or Tapping Machine

Multiple Drilling or Tapping Machine

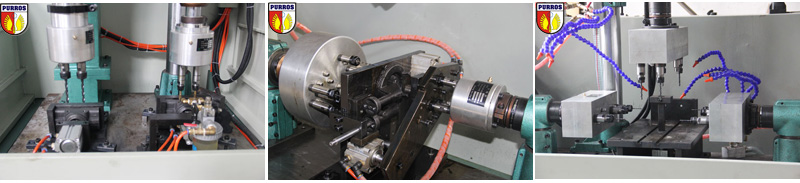

Multi Station Drilling or Tapping Machine

Multi Station Drilling or Tapping Machine

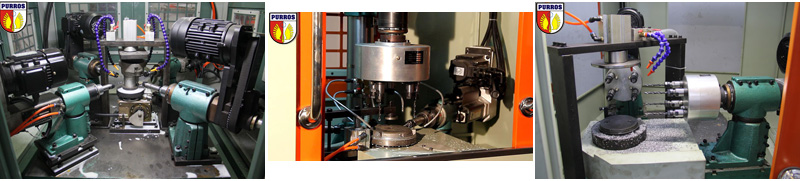

Rotary Index Drives Special Purpose Machine

Rotary Index Drives Special Purpose Machine

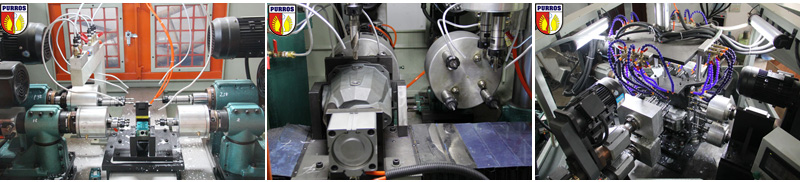

Sliding Table Special Purpose Machine

Sliding Table Special Purpose Machine

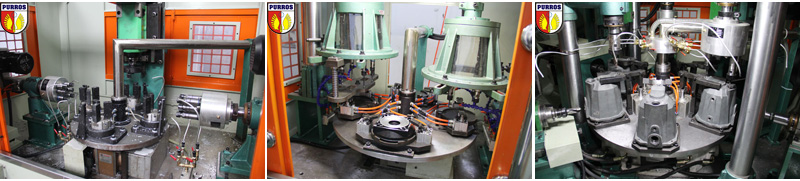

Rotary Table Special Purpose Machine

Rotary Table Special Purpose Machine
