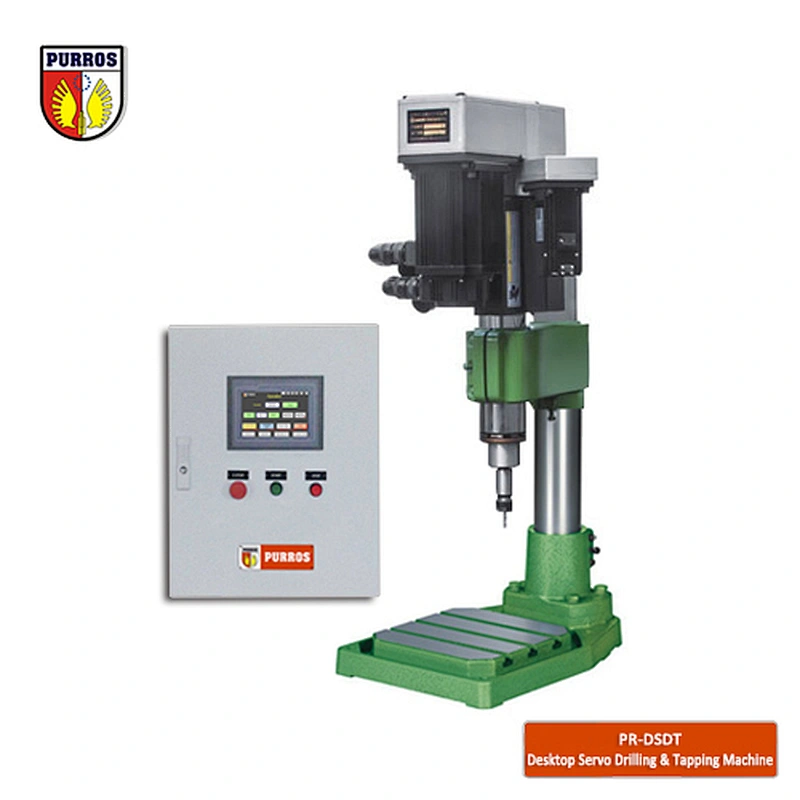

PR-DSDT Desktop Servo Drilling & Tapping Machine

PR-DSDT Desktop Servo Drilling & Tapping Machine

  • Spindle motors: 1.8 kw
  • Feed motors: 0.4 kw
  • Standard stroke: 100mm
  • Processing capacity: S45C/10mm/M12
  • Product description: PR-DSDT Desktop Servo Drilling & Tapping Machine, 100mm Stroke, S45C/10mm/M12, can set the spindle rotation speed, depth, pitch and feed rate freely by touch screen within the program.
  • INQUIRY

Description:

PR-DSDT Desktop Servo Drilling & Tapping Machine have two servo motor & servo control system can set the spindle rotation speed, depth, pitch and feed rate freely by touch screen within the program, ideal for hole drilling or tapping. Furthermore, as cycle time can be greatly reduced using a second home position, accuracy and efficiency of drilling or tapping dramatically improves. It is possible to attach multi spindle head & automatic fixture to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.


Parameter:
MODEL PR-DSDT3 PR-DSDT5
Machine tool dimension 300×450×900mm 300×450×1000mm
Working table effective size 230×230mm 230×230mm
Column diameter Φ74mm Φ104mm
Spindle diameter Φ50mm Φ70mm
Spindle taper JT6 B18
Spindle nose to table 180mm 220mm
Spindle full stroke 100mm 100mm
Spindle speed 0-3000rpm 0-3000rpm
Spindle Motor power 1.8Kw 2.3Kw
Feed Motor power 0.4Kw 0.75Kw
Drilling capacity S45C/10mm S45C/13mm
Tapping capacity S45C/M12 S45C/M16
Fixture system Optional Optional
Control system PLC PLC
Control panel Touch Screen Touch Screen
Total weight 70Kg 100Kg
