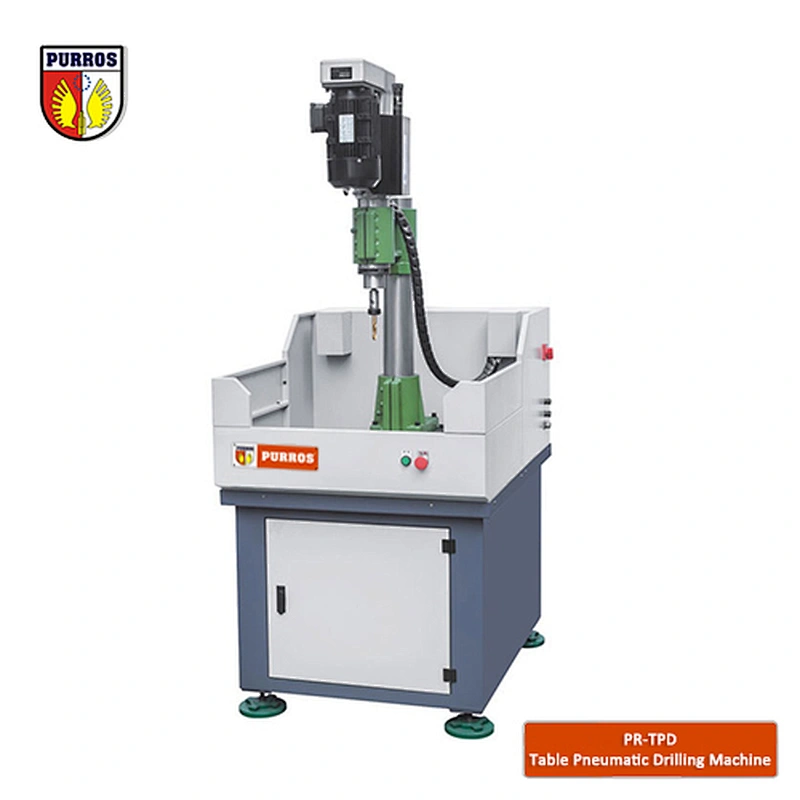

PR-TPD3 Table Pneumatic Drilling Machine

PR-TPD3 Table Pneumatic Drilling Machine

  • Spindle motors: 0.75 kw
  • Spindle speed: 600-7500 rpm
  • Standard stroke: 80mm
  • Drilling capacity: S45C/8.5mm
  • Product description: PR-TPD3 Table Pneumatic Drilling Machine can improve the processing efficiency: fast arrival at the workpiece, adjustable drilling feed speed with hydro speed regulator, fast return.
  • INQUIRY
Description:
PR-TPD3 Table Pneumatic Drilling Machine can improve the processing efficiency: fast arrival at the workpiece, adjustable drilling feed speed with hydro speed regulator, fast return. Same-day operation can be carried out by simply supplying a connection of power and air. The machine makes effective use of processing areas because it is equipped with an up-down adjustment and swing mechanism. It is possible to attach multi spindle head, automatic fixture & cooling system to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:
MODEL PR-TPD3 PR-TPD3L
Machine tool dimension 600×750×1800mm 600×750×2000mm
Working table effective size 230×230mm 230×230mm
Column diameter Φ74mm Φ74mm
Spindle diameter Φ50mm Φ50mm
Spindle taper JT6 JT6
Spindle nose to table 180mm 180mm
Spindle full stroke 80mm 150mm
Feed stroke control 30/60mm 30/60/80/100mm
Spindle speed Optional Optional
Spindle Motor power 0.55/0.75Kw 0.55/0.75Kw
Drilling capacity S45C/8.5mm S45C/8.5mm
Cooling system Optional Optional
Fixture system Optional Optional
Standard working pressure 0.5MPa 0.5MPa
Total weight 110Kg 130Kg
