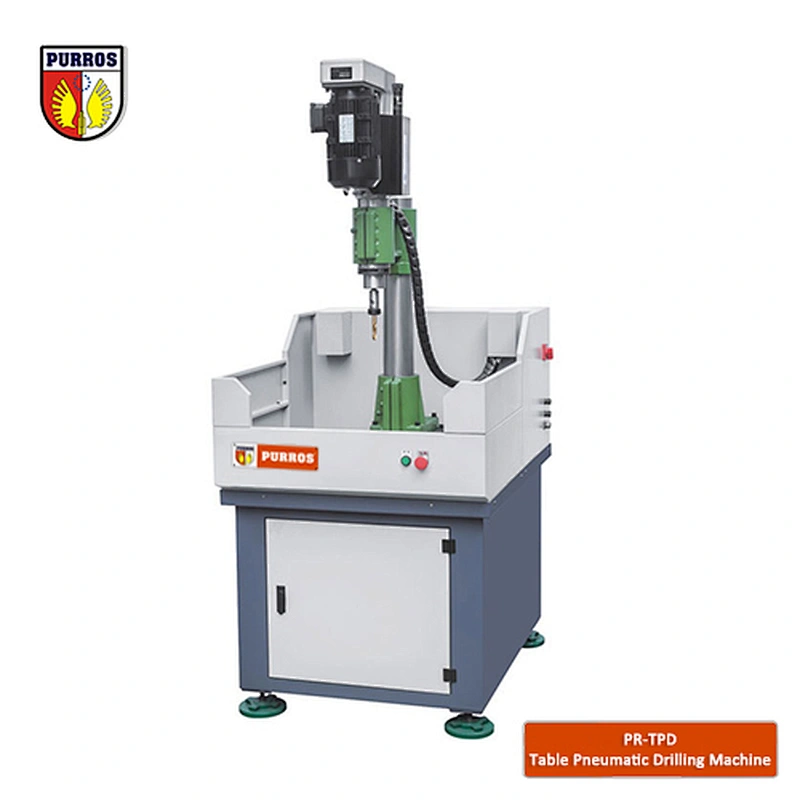

PR-TPD4 Table Pneumatic Drilling Machine

PR-TPD4 Table Pneumatic Drilling Machine

  • Spindle motors: 1.1 kw
  • Spindle speed: 600-7500 rpm
  • Standard stroke: 100mm
  • Drilling capacity: S45C/13mm
  • Product description: PR-TPD4 Table Pneumatic Drilling Machine can improve the processing efficiency: fast arrival at the workpiece, adjustable drilling feed speed with hydro speed regulator, fast return.
  • INQUIRY
Description:
PR-TPD4 Table Pneumatic Drilling Machine can improve the processing efficiency: fast arrival at the workpiece, adjustable drilling feed speed with hydro speed regulator, fast return. Same-day operation can be carried out by simply supplying a connection of power and air. The machine makes effective use of processing areas because it is equipped with an up-down adjustment and swing mechanism. It is possible to attach multi spindle head, automatic fixture & cooling system to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:
MODEL PR-TPD4 PR-TPD4L
Machine tool dimension 600×750×1800mm 600×750×2000mm
Working table effective size 230×230mm 230×230mm
Column diameter Φ92mm Φ92mm
Spindle diameter Φ50mm Φ50mm
Spindle taper JT6 JT6
Spindle nose to table 180mm 180mm
Spindle full stroke 100mm 150mm
Feed stroke control 40/60/80mm 40/60/80/100/130mm
Spindle speed Optional Optional
Spindle Motor power 1.1Kw 1.1Kw
Drilling capacity S45C/13mm S45C/13mm
Cooling system Optional Optional
Fixture system Optional Optional
Standard working pressure 0.5MPa 0.5MPa
Total weight 180Kg 190Kg
