Automatic Drilling Machines

  • PR-TPD5 Table Pneumatic Drilling Machine

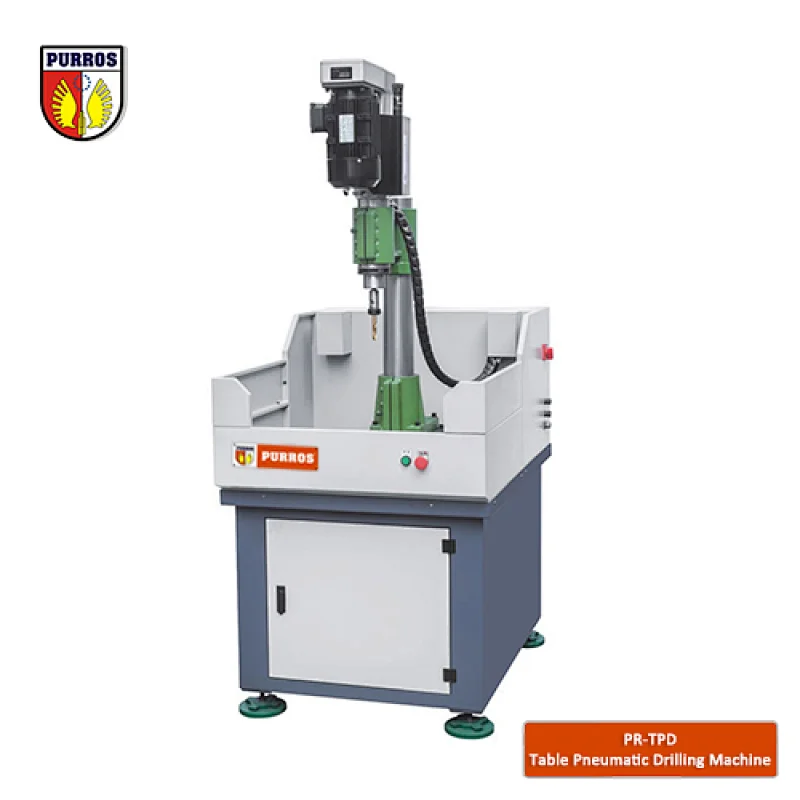

PR-TPD5 Table Pneumatic Drilling Machine

PR-TPD5 Table Pneumatic Drilling Machine

  • Spindle motors: 1.5 kw
  • Spindle speed: 600-7500 rpm
  • Standard stroke: 100mm
  • Drilling capacity: S45C/16mm
  • Product description: PR-TPD5 Table Pneumatic Drilling Machine can improve the processing efficiency: fast arrival at the workpiece, adjustable drilling feed speed with hydro speed regulator, fast return.
  • INQUIRY
Description:
PR-TPD5 Table Pneumatic Drilling Machine can improve the processing efficiency: fast arrival at the workpiece, adjustable drilling feed speed with hydro speed regulator, fast return. Same-day operation can be carried out by simply supplying a connection of power and air. The machine makes effective use of processing areas because it is equipped with an up-down adjustment and swing mechanism. It is possible to attach multi spindle head, automatic fixture & cooling system to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:
MODEL PR-TPD5 PR-TPD5L
Machine tool dimension 850×1050×2000mm 850×1050×2000mm
Working table effective size 420×620mm 420×620mm
Column diameter Φ104mm Φ104mm
Spindle diameter Φ70mm Φ70mm
Spindle taper JT6 JT6
Spindle nose to table 220mm 220mm
Spindle full stroke 100mm 150mm
Feed stroke control 40/60/80mm 40/60/80/100/130mm
Spindle speed Optional Optional
Spindle Motor power 1.5Kw 1.5Kw
Drilling capacity S45C/16mm S45C/16mm
Cooling system Optional Optional
Fixture system Optional Optional
Standard working pressure 0.5MPa 0.5MPa
Total weight 300Kg 320Kg
