Automatic Drilling Machines

  • PR-TSD Table Servo Drilling Machine

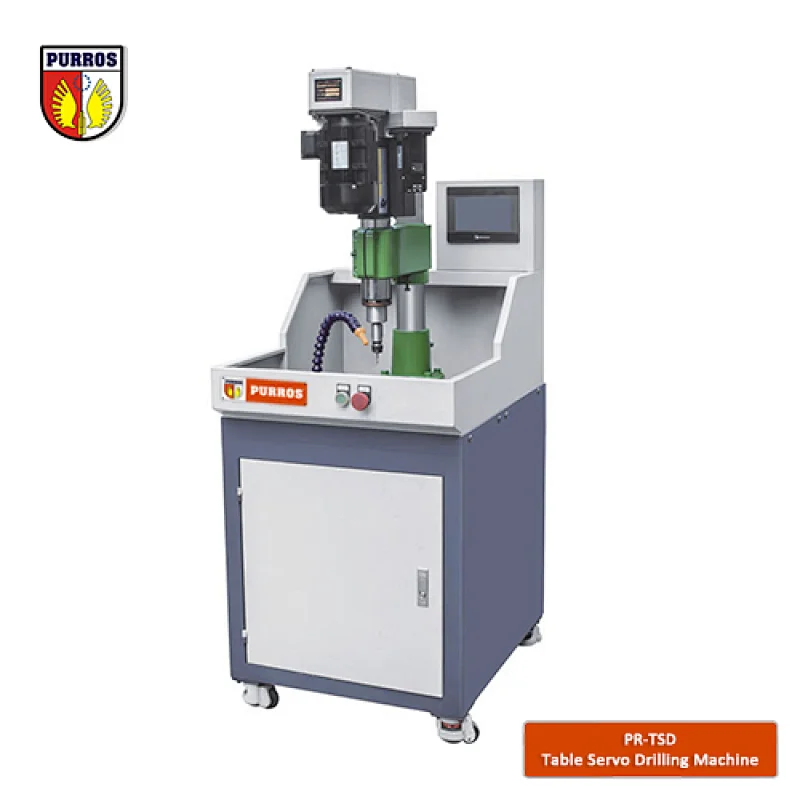

PR-TSD Table Servo Drilling Machine

PR-TSD Table Servo Drilling Machine

  • Spindle motors: 0.55 kw
  • Spindle speed: 600-7500 rpm
  • Standard stroke: 100mm
  • Drilling capacity: S45C/8.5mm
  • Product description: PR-TSD Table Servo Drilling Machine consists of spindle motor and servo feed motor. The spindle speed is set before delivery or adjusted by belt pulley. can set the drilling depth and feed rate freely
  • INQUIRY
Description:
PR-TSD Table Servo Drilling Machine consists of spindle motor and servo feed motor. The spindle speed is set before delivery or adjusted by belt pulley. can set the drilling depth and feed rate freely by touch screen within the program, ideal for small diameter, deep hole drilling, chamfering etc. Furthermore, as cycle time can be greatly reduced using a second home position, accuracy and efficiency of drilling dramatically improves. It is possible to attach multi spindle head, automatic fixture & cooling system to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:
MODEL PR-TSD3 PR-TSD5
Machine tool dimension 600×750×1800mm 850×1250×2000mm
Working table effective size 230×230mm 420×620
Column diameter Φ74mm Φ104mm
Spindle diameter Φ50mm Φ70mm
Spindle taper JT6 JT6
Spindle nose to table 180mm 220mm
Spindle full stroke 100mm 100mm
Spindle speed Optional Optional
Spindle Motor power 0.55Kw 0.75Kw
Feed Motor power 0.4Kw 0.75Kw
Drilling capacity S45C/8.5mm S45C/12mm
Cooling system Optional Optional
Fixture system Optional Optional
Control system PLC PLC
Control panel Touch Screen Touch Screen
Total weight 180Kg 300Kg
