  • PR-TSDT Table Servo Drilling & Tapping Machine

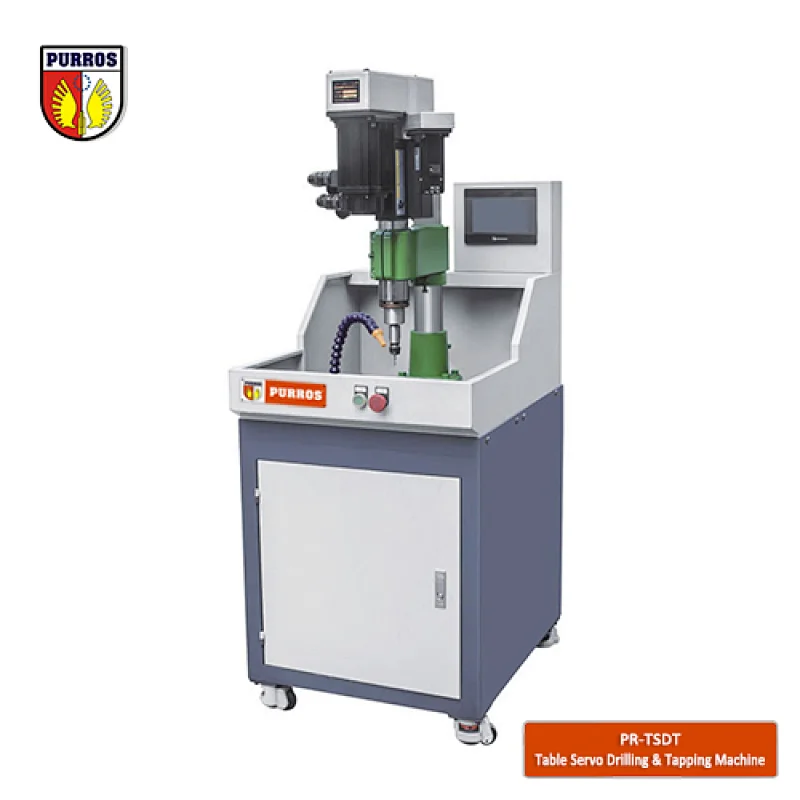

PR-TSDT Table Servo Drilling & Tapping Machine

PR-TSDT Table Servo Drilling & Tapping Machine

  • Spindle motors: 1.8 kw
  • Standard stroke: 100mm
  • Drilling capacity: S45C/10mm
  • Tapping capacity: S45C/M12
  • Product description: PR-TSDT Table Servo Drilling & Tapping Machine have two servo motor & servo control system can set the spindle rotation speed, depth, pitch and feed rate freely by touch screen within the program, ide
  • INQUIRY
Description:

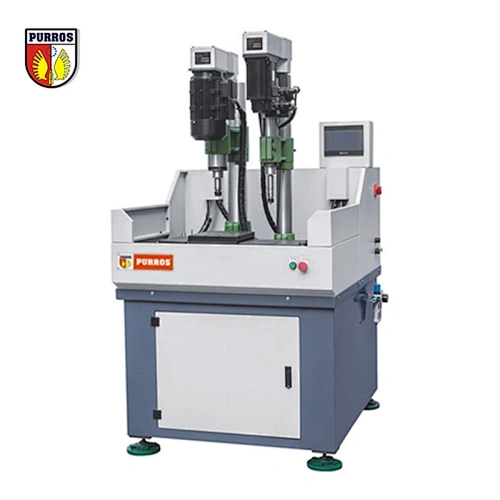

PR-TSDT Table Servo Drilling & Tapping Machine have two servo motor & servo control system can set the spindle rotation speed, depth, pitch and feed rate freely by touch screen within the program, ideal for hole drilling or tapping. Furthermore, as cycle time can be greatly reduced using a second home position, accuracy and efficiency of drilling or tapping dramatically improves. It is possible to attach multi spindle head, automatic fixture & cooling system to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:
MODEL PR-TSDT3 PR-TSDT5
Machine tool dimension 600×750×1800mm 850×1250×2000mm
Working table effective size 230×230mm 420×620
Column diameter Φ74mm Φ104mm
Spindle diameter Φ50mm Φ70mm
Spindle taper JT6 JT6
Spindle nose to table 180mm 220mm
Spindle full stroke 100mm 100mm
Spindle speed 0-3000rpm 0-3000rpm
Spindle Motor power 1.8Kw 2.3Kw
Feed Motor power 0.4Kw 0.75Kw
Drilling capacity S45C/10mm S45C/13mm
Tapping capacity S45C/M12 S45C/M16
Cooling system Optional Optional
Fixture system Optional Optional
Control system PLC PLC
Control panel Touch Screen Touch Screen
Total weight 180Kg 300Kg
