Self Feed Drill Units

  • PR7P Self Feeding Drilling

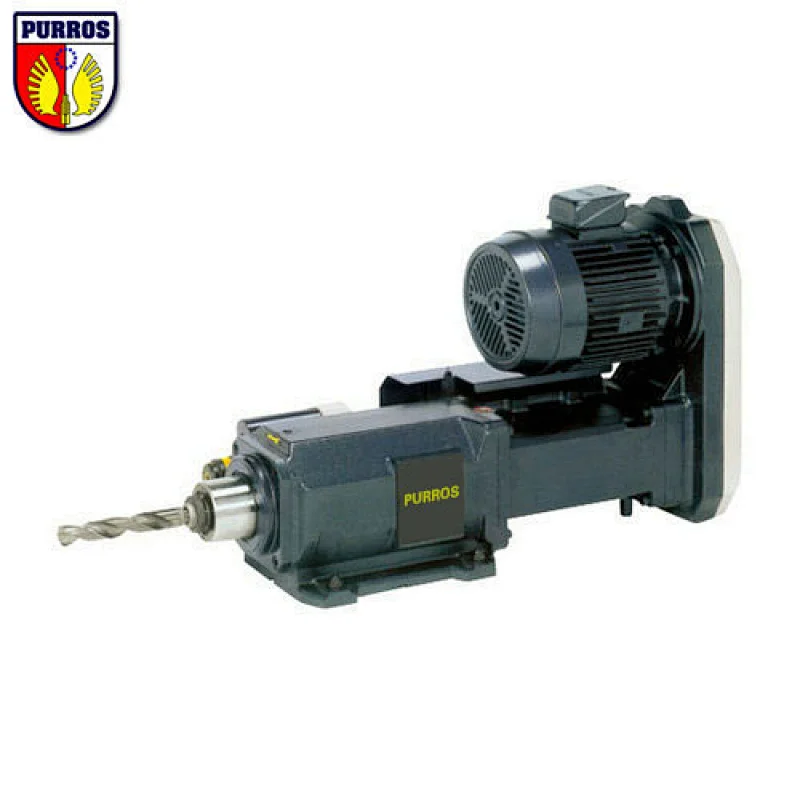

PR7P Self Feeding Drilling

PR7P Self Feeding Drilling

  • Spindle motors: 2.2kw,3.7kw
  • Spindle speed: 340-2900 rpm
  • Standard stroke: 200mm
  • Drilling capacity: Aluminum Φ40, Cast iron Φ32, Steel Φ28
  • Product description: Drilling capacity: Aluminum Φ40, Cast iron Φ32, Steel Φ28. AutomaticDrill provides pneumatic auto feed drilling heads, 2.2 kw, 340-2900 rpm, 200mm Stroke, automated drill equipment and auto drilling s
  • INQUIRY
Self Feed Drill Unit Application

Self Feed Drill Unit & Tapping Spindle Head

PURROS® Self Feeding Drilling Unit Parameters

Model: PR7P
No-load speed: 340-2900R/M
Drilling diameter: Aluminum: 40mm / Cast iron: 32mm / Steel: 28mm
Spindle stroke: 200mm
Cutting feed stroke: 40mm, 60mm, 80mm,100mm,130mm
Motor power: 2.2/3.7kw
Feed thrust: 7800N

Parameters
TYPE

No-Load rotational speed

Specifications
of drill chuck

Drilling capacity

Stroke

Motor

Feed
driving

Air
consumption

Weight

50Hz

60Hz

Aluminum

Castiron

Steel

Full stroke

Cutting feed roke

Power

Number of poles

min-1

mm

mm

mm

mm

kw

P

N

L/Stroke

kg

PR7P-3229

2900

3500

MT2
/
MT3

11

4

3

200

0-100

3.7

4

9400

58

210

PR7P-3222

2200

2700

13

5

4

PR7P-3215

1500

1800

17

7

6

PR7P-3210

1000

1200

20

19

12

2.2

6

PR7P-3206

650

800

25

19

16

PR7P-3205

500

600

31

24

21

PR7P-3203

340

410

40

32

28

NOTE:
1. The selection of models should be based on the shape of the work, material, cutting characteristics, diameter and material of tools, rotation speed (cutting speed), etc.
2. The drilling capacity displayed in the above table is based on values representing a drilling depth of two times the diameter of the drill.
3. The standard attachment for the hydro speed regulator is RB-3140. Please specify an optional Hydro Speed Regulator if required. (Optional Hydro Speed Regulator Models: RB-3160, RB-31100, R-3180A, R-31130A)
4. Maximum weight of the attachment that can be mounted when machining downwards is 100 kg.
5. Make sure to use a collet chuck or spindle nose when the hardness of carbide drills and tool shanks is higher than that of general HSS (high-speed steel) drills.

Features:

1. High-precision
Core technology of Electro Pneumatic Drilling Units is played very well, which completely strengthened the versatility of the product and thus made the high precision of Drilling Units reflected extremely.
2. High rigidity
Axial rail structure is used, which greatly improved the overall rigidity and fully guaranteed the stability of the hole machining.
3. High performance
A unique dual sealing structure and round body that is easy and convenient to be installed are available at the end of spindle, which can meet variety of holes machining requirement.


Products can be equipped with Self Feeding Drilling Unit

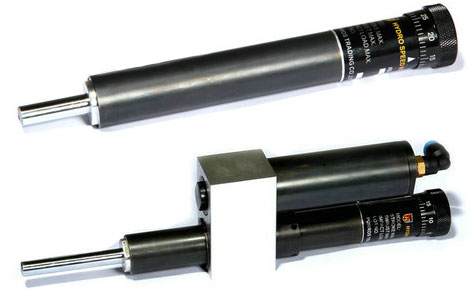

1. Hydro Speed Regulator

Speed can be adjusted arbitrarily from lower to higher by a hydraulic feeding speed control device.

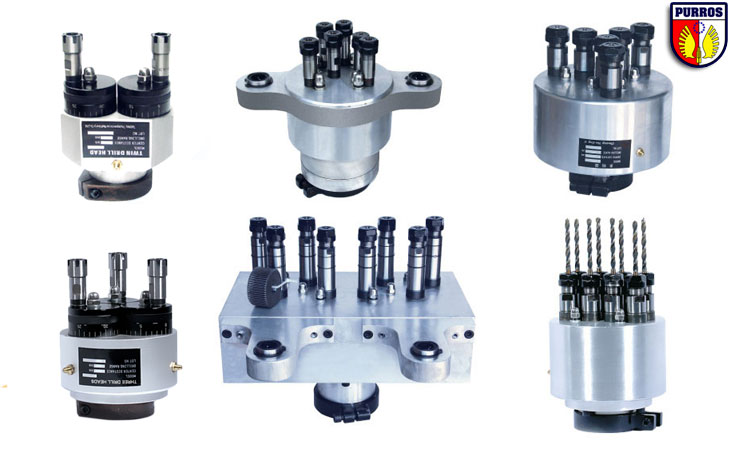

2. Multiple Spindle Heads

Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.

PURROS® Special Purpose Machine

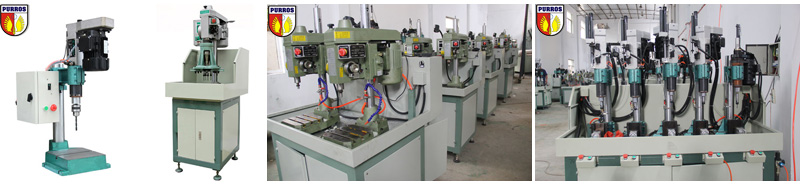

Multiple Drilling or Tapping Machine

Multiple Drilling or Tapping Machine

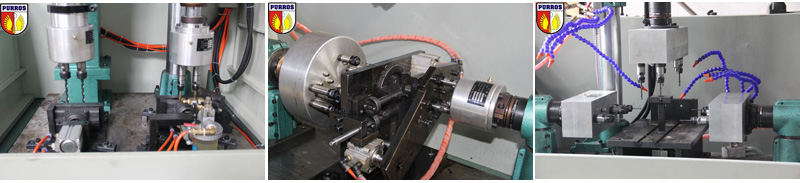

Multi Station Drilling or Tapping Machine

Multi Station Drilling or Tapping Machine

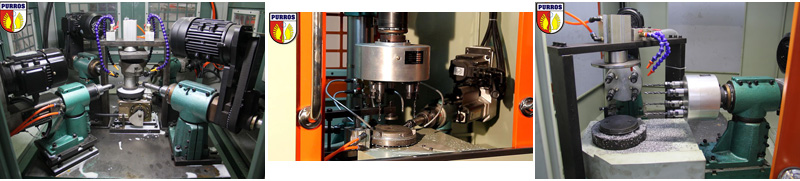

Rotary Index Drives Special Purpose Machine

Rotary Index Drives Special Purpose Machine

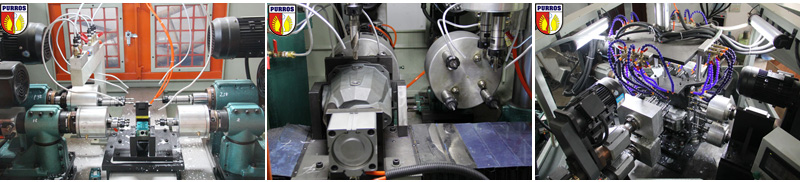

Sliding Table Special Purpose Machine

Sliding Table Special Purpose Machine

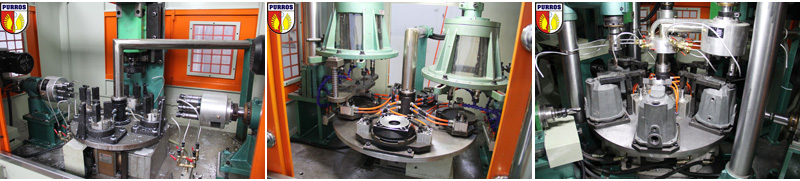

Rotary Table Special Purpose Machine

Rotary Table Special Purpose Machine
