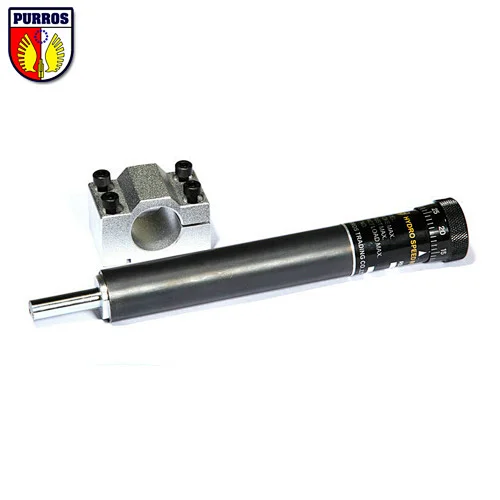

Air Return Hydro Speed Regulator

Model NO.: R-A
Minimum order quantity:: 1

Max stroke: 40mm - 180mm

Load range: 200n - 3000n

Impact energy permitted: 2.3j - 3.5j

Product description: Hydro Speed Regulator Air Return Type is returned by supplying air, Enabled for step feed control,It is a hydraulic feed rate control unit that can be freely adjusted from low to high to regulate the....

Quantity:

Product Description

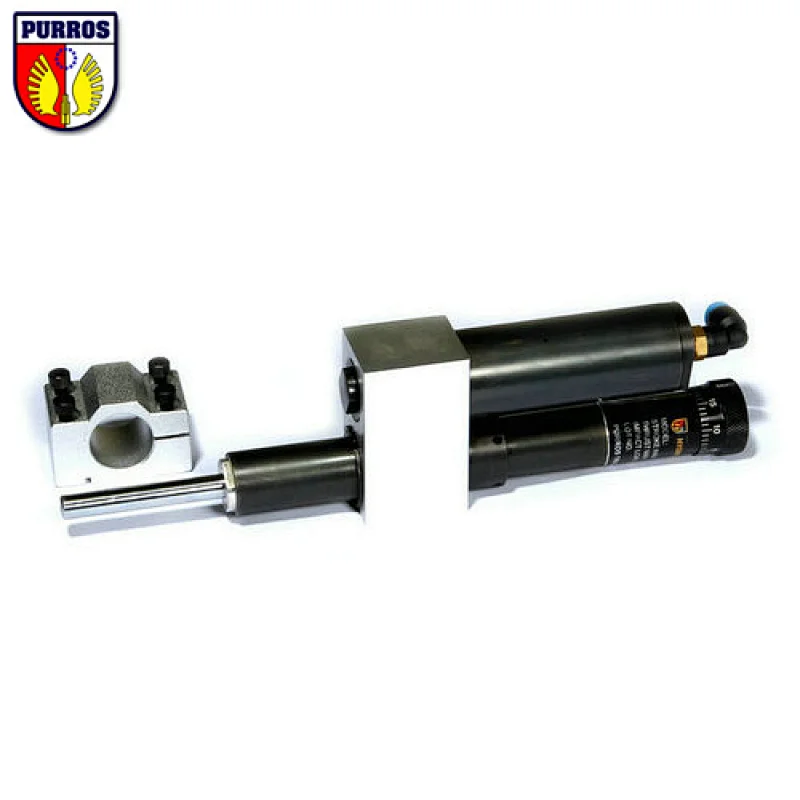

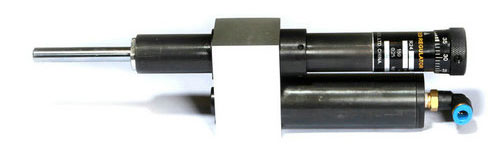

Air return hydro speed regulator serve the same function as the spring return type in that they control the forward speed of the drill. However, the air type requires an air signal at the end of each drilling cycle to return the regulator to its original position. Also, these regulators are required for peck feed drilling as they are capable of holding the drilling depth at the end of each peck feed motion.

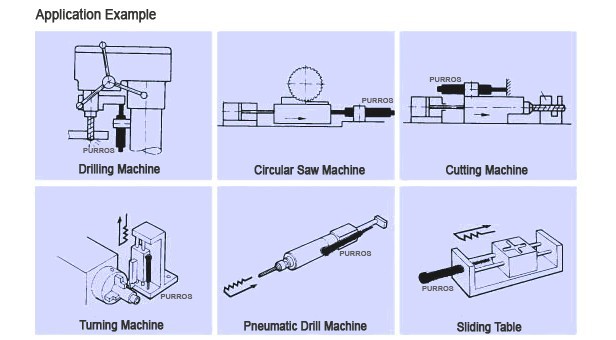

Application example of Hydro Speed Regulator Air Return Type to drill deep hole

All models of Hydro Speed Regulator Air Return Type

Parameters

Model	Max stroke	Load range	Adjusting range of speed	Impact energy permitted	Weight(Basic body)
Air return type	mm	N	Mm/sec	J	Kg
R-2440A	40	200-1,500	F=200N 0.35-5 F=1,000N 0.5-25 F=1,500N 05-50	2.3	1.12
R-2460A	60				1.13
R-2480A	80				1.47
R-24100A	100				1.48
R-3180A	100	500-3,000	F=500N 03-12 F=2,300N 0.5-25 F=3,000N 0.6-50	3.5	2.2
R-31130A	100				2.8
R-31180A	180				3.3

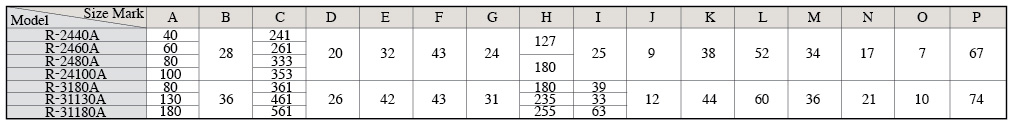

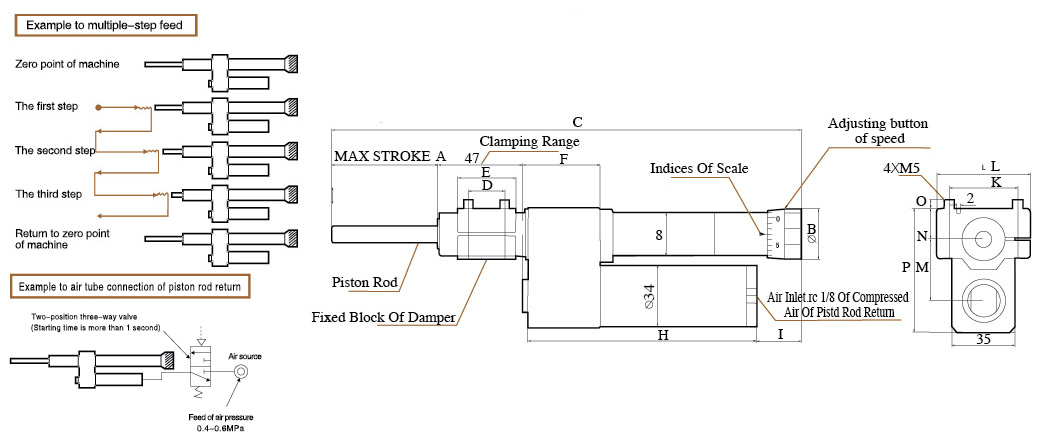

Size (mm)

Purros Machinery also have other models (Maximum Stroke:40-180mm, Load Range:200-3000n, Withstand Impact Energy:2.3-3.5j)

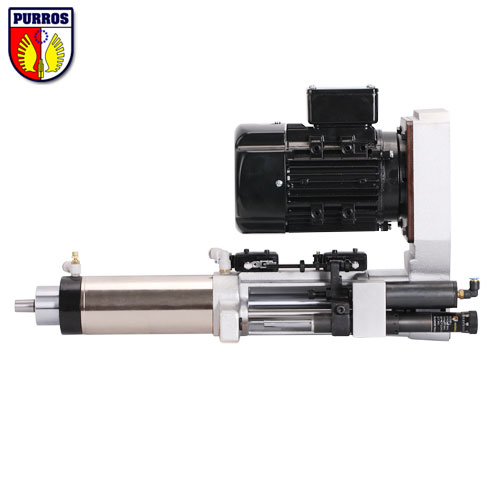

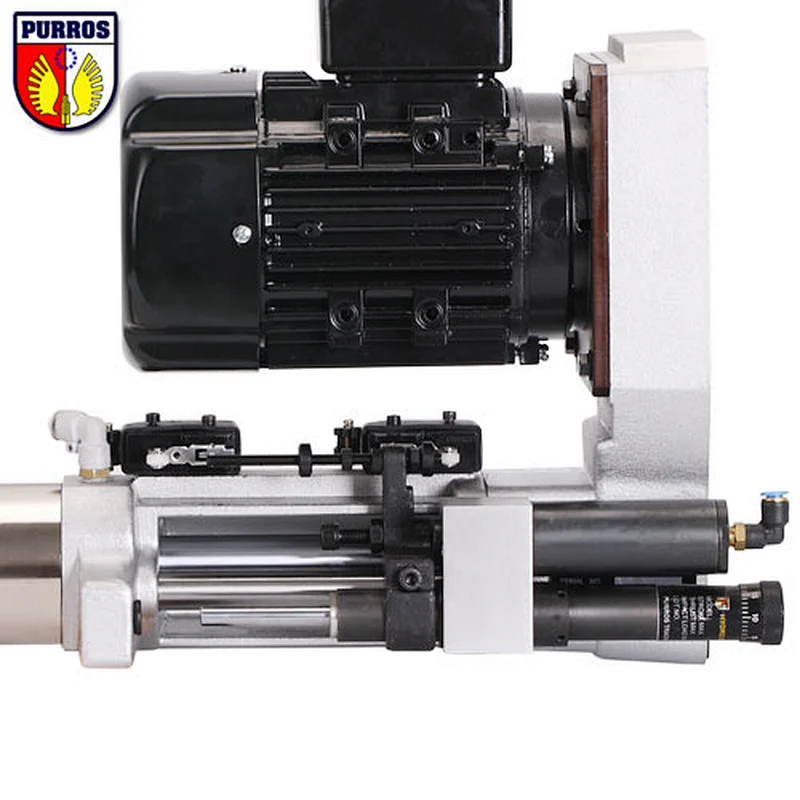

Purros Machinery Hydro speed regulators are designed to control the forward speed (feed rate) of the Electro Pneumatic Drilling Units. Use of a regulator provides adjustable feed rates, faster cycle times, reduces burring, eliminates drill breakage, and prevents sudden forward surges at drill breakthrough. One regulator is required per Electro Pneumatic Drilling Units for drilling operations.

Even if remove the load of piston rod of R-A type hydraulic damper, the piston rod still can stay at original position, only provide compressed air piston rod can return, a multiple setp feed control can be carried out.

Air return regulators serve the same function as the spring return type in that they control the forward speed of the drill. However, the air type requires an air signal at the end of each drilling cycle to return the regulator to its original position. Also, these regulators are required for peck feed drilling as they are capable of holding the drilling depth at the end of each peck feed motion.

Features
1. With the position of the piston rod maintained along the strokes as desired efficient pack feed drilling is possible.
2. Longer strokes available for extended application purpose.
3. Easy to install, Leakproof, No need for piping or wiring.
4. Constant Speed.
5. Life of Millions of cycles without leaking.
