We can provide automatic tapping unit, automatic tapping machine, or customize many kinds of semi-automatic & automatic tapping machine, special purpose tapping machine.

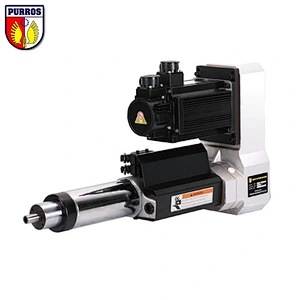

Servo Feed Tapping Units

Servo feed tapping units uses the servo motor to drive the screw rod to control the screw pitch, forward and backward speed and distance
Model Rotating speed Tapping capacity Travel adjustment range Spindle motor power Spindle travel
Fast Forward Cutting Steel Aluminum Full stroke Fast forward
to the trip
Pitch
feed stroke
min-1 kw mm
PRST3 3370 1-1999 M12 M14 MAX.80 MAX.70 MAX.50 1.8 80
PRST5 M16 M20 2.2


Auto Feed Tapping Units

Auto feed tapping units uses the electric motor to drive the screw rod to control the forward and backward distance
Model Rotating speed Tapping capacity Travel adjustment range Spindle motor power Spindle travel
Steel Aluminum Full stroke Pitch
feed stroke
min-1 kw mm
PRMT3 300-1000 M12 M14 MAX.80 MAX.50 0.75 80
PRMT5 M16 M20 1.1
