Servo Drilling Unit PR5PS
Servo Drilling Unit PR5PS

Servo Drilling Unit PR5PS

Model NO.
PR5PS
Rotating speed: 700-7500 rpm

Max. Drilling capacity: Aluminum Φ16, Steel Φ12

Spindle travel: 100mm

Product description: Servo Drilling unit PR5PS consists of spindle motor and servo feed motor. The spindle speed is set before delivery or adjusted by belt pulley. The feed servo motor is used to connect the ball screw, which can accurately control the drilling depth and feed speed through the PLC system.
Quantity:

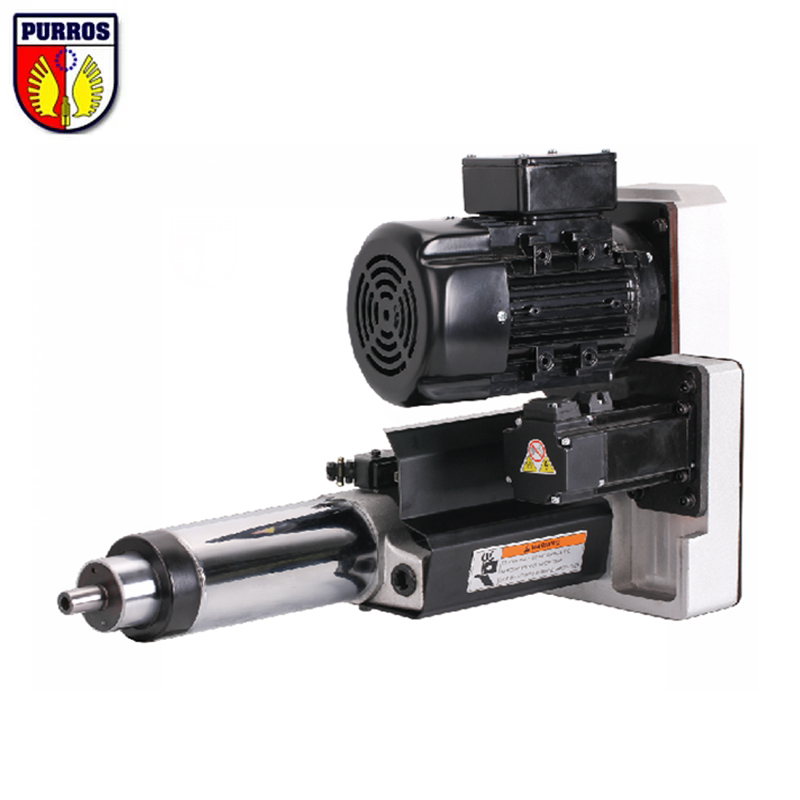

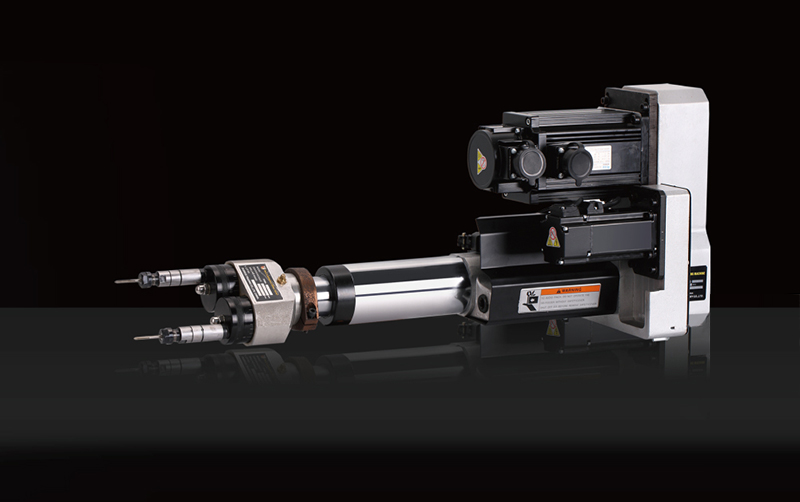

PURROS® Servo Drilling Unit PR5PS

Mode: PR5PS
Rotating speed: 700-7500 rpm
Max. Drilling capacity: Aluminum Φ16, Steel Φ12
Spindle travel: 100mm
Spindle motor: 0.75kw
Feed servo motor: 0.75kw

Servo Drilling unit PR3PS consists of spindle motor and servo feed motor. The spindle speed is set before delivery or adjusted by belt pulley. The feed servo motor is used to connect the ball screw, which can accurately control the drilling depth and feed speed through the PLC system. ideal for small diameter, deep hole drilling, blind hole, chamfering etc.


PURROS® Servo Drilling Unit PR5PS

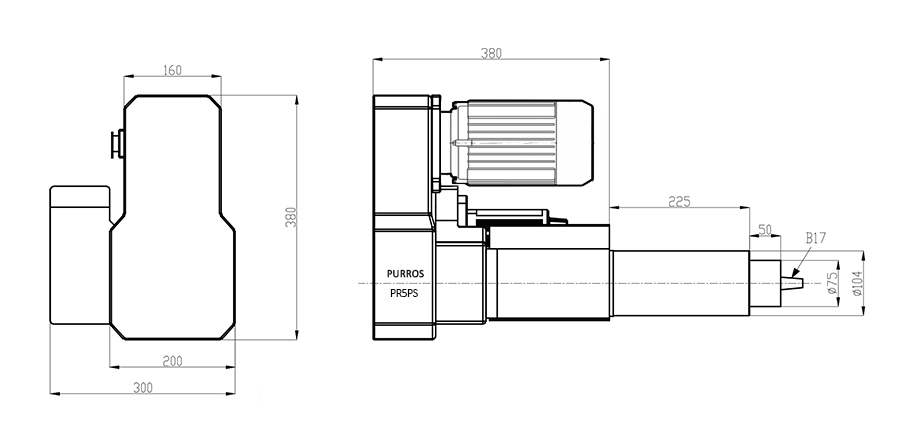

PURROS® Servo Drilling Unit PR5PS Specification

ModelRotating speedSpindle motorFeed servo motorDrilling capacity
Tapping capacity
Feed screwSpindle travel
SteelAluminumguide travel
min-1kwkwmmmmmmmm
PR3PS700-75000.550.48.5125100
PR5PS0.750.751216

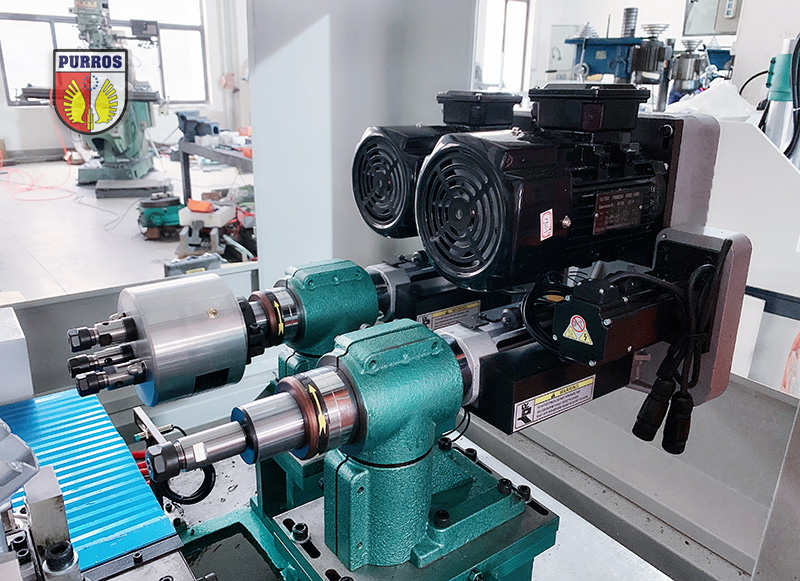

Products can be equipped with Servo Drilling Unit

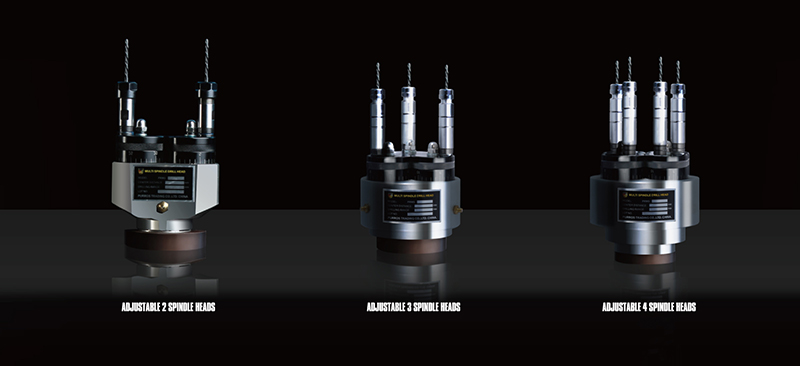

1. Multiple Spindle Heads

Multi-axis machining head can be amounted, which can achieve high efficiency drilling or tapping and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.

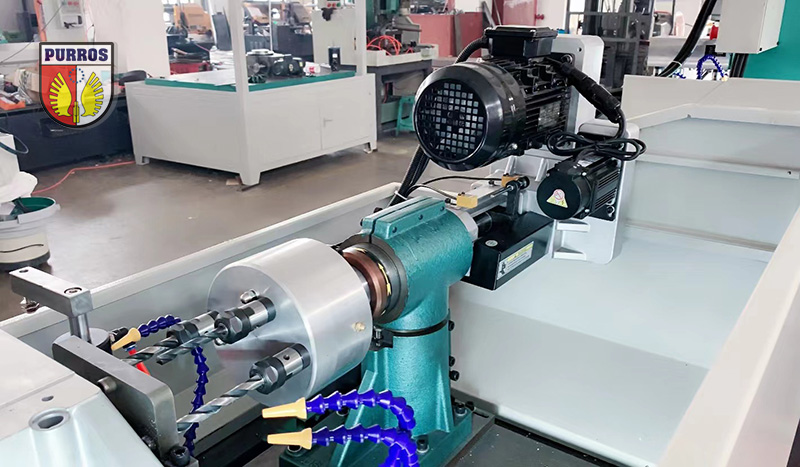

2. Fixed bracket

Such desktop support is suitable for any machining directions, which can fix the Drilling or Tapping Units angle freely.

PURROS® Servo Feed Drilling Unit PR5PS Application





PURROS® Special Purpose Machine

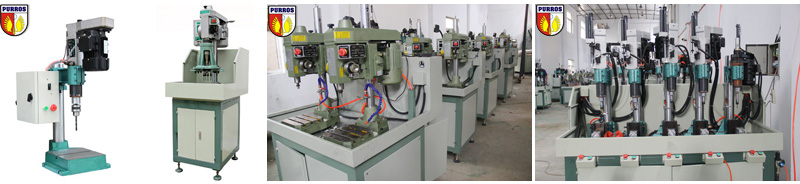

Multiple Drilling or Tapping Machine

Multiple Drilling or Tapping Machine

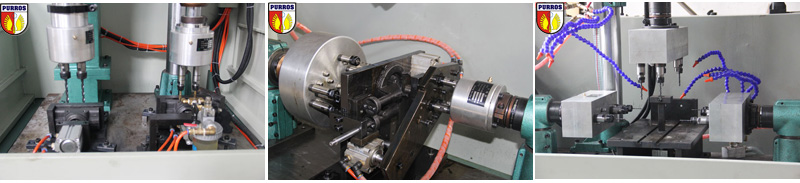

Multi Station Drilling or Tapping Machine

Multi Station Drilling or Tapping Machine

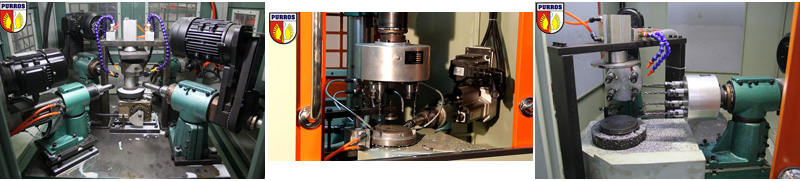

Rotary Index Drives Special Purpose Machine

Rotary Index Drives Special Purpose Machine

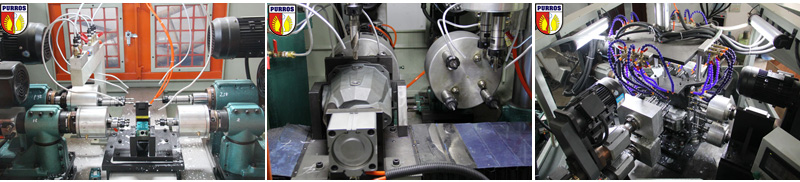

Sliding Table Special Purpose Machine

Sliding Table Special Purpose Machine

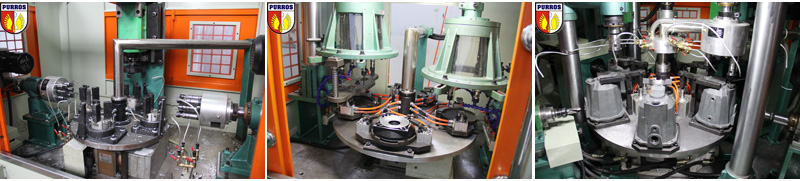

Rotary Table Special Purpose Machine

Rotary Table Special Purpose Machine
