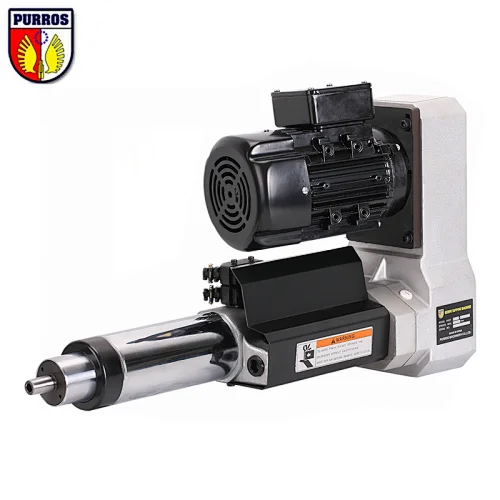

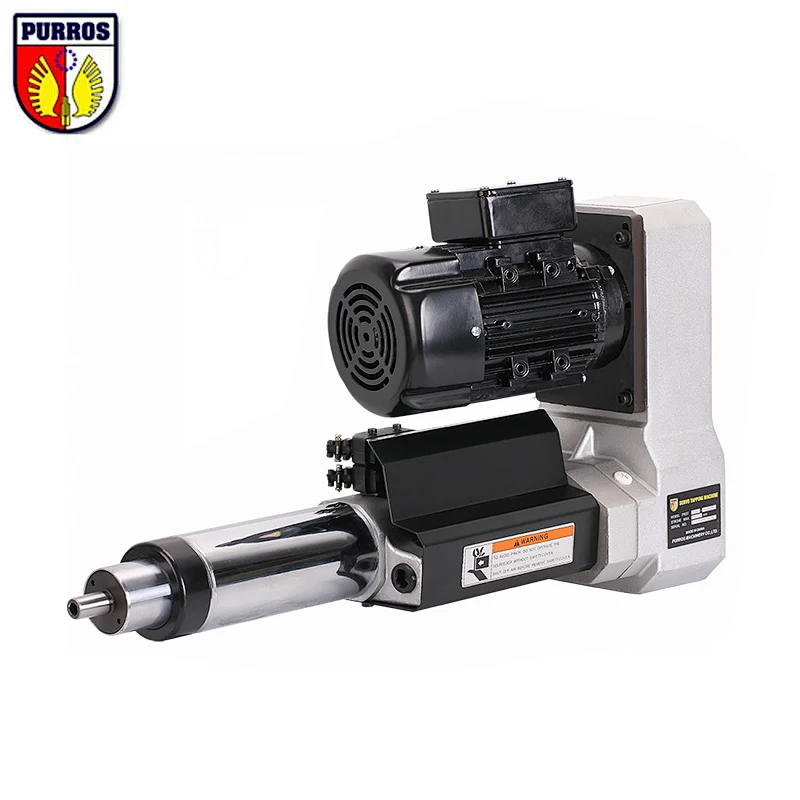

Auto Feed Tapping Units PRMT3
Auto Feed Tapping Units PRMT3

Auto Feed Tapping Units PRMT3

Model NO.
PRMT3
Minimum order quantity:
1
Spindle motors: 1.8kw

Standard stroke: 80mm

Tapping capacity: Aluminum M12, Steel M10

Product description: Tapping capacity: Aluminum M12, Steel M10, 80mm Stroke, 1.8kw, AutomaticDrill provides auto feed tapping units, auto control feed tapping equipment, auto tapping press, auto tapping machine
Quantity:

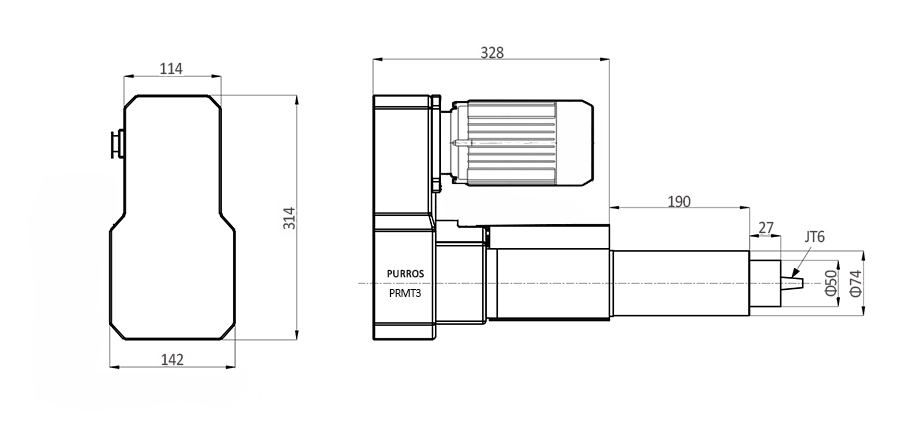

PURROS® Auto Feed Tapping Units PRMT3 Size

PURROS® Auto Feed Tapping Units PRMT3 Specifications

ModelRotating speedTapping capacityTravel adjustment rangeSpindle motor powerSpindle travel
SteelAluminumFull strokePitch
feed stroke
min-1kwmm
PRMT3300-1000M12M14MAX.80MAX.500.7580
PRMT5M16M201.1



Products can be equipped with Auto Feed Tapping Unit PRMT3

1. Multiple Spindle Heads

Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.

2. Fixed bracket

Such desktop support is suitable for any machining directions, which can fix the tapping units angle freely.

PURROS® Special Purpose Machine

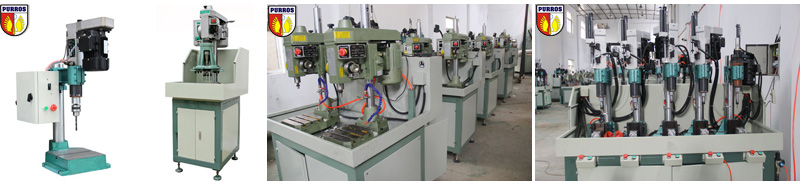

Multiple Drilling or Tapping Machine

Multiple Drilling or Tapping Machine

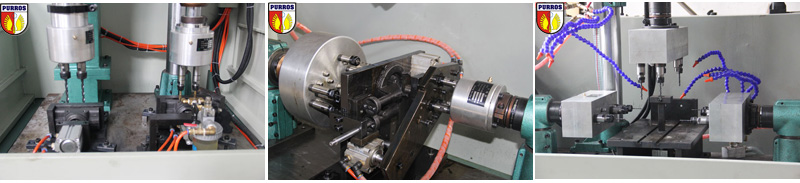

Multi Station Drilling or Tapping Machine

Multi Station Drilling or Tapping Machine

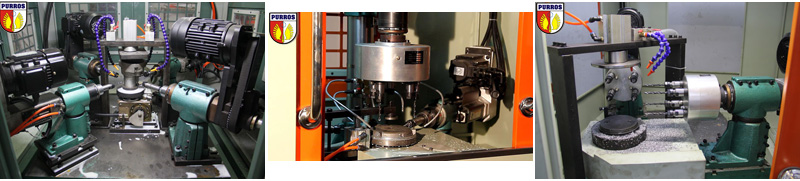

Rotary Index Drives Special Purpose Machine

Rotary Index Drives Special Purpose Machine

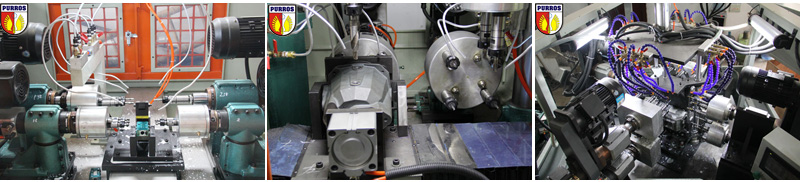

Sliding Table Special Purpose Machine

Sliding Table Special Purpose Machine

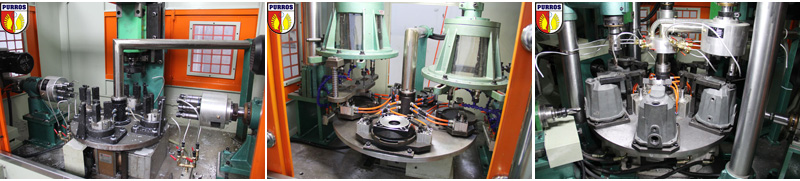

Rotary Table Special Purpose Machine

Rotary Table Special Purpose Machine
