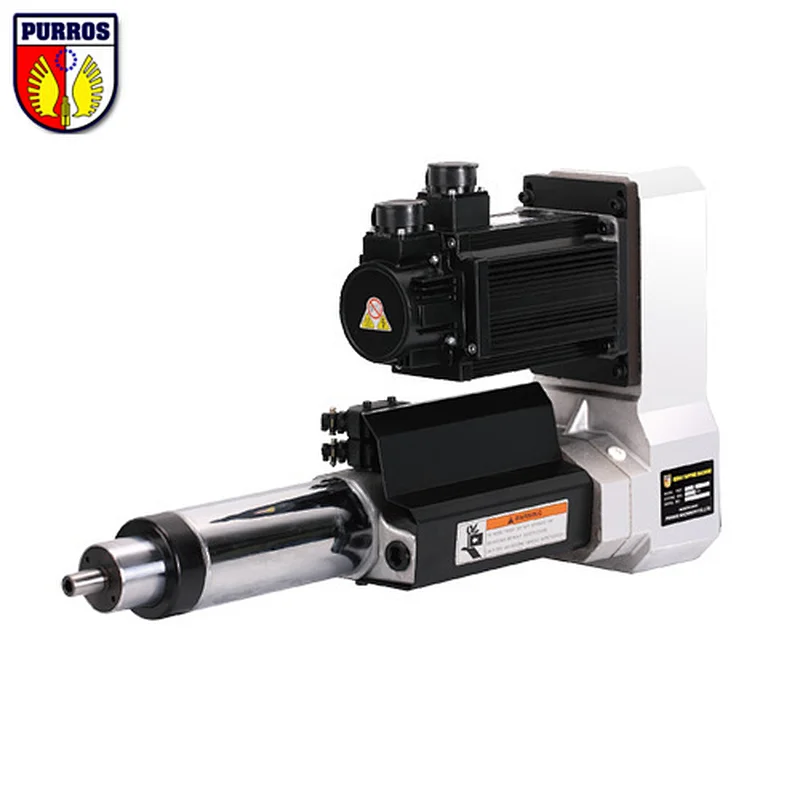

Servo Feed Tapping Units
Servo Feed Tapping Units
Servo Feed Tapping Units

Servo Feed Tapping Units

Model NO.
PRST5
Spindle motors: 2.3kw

Full stroke: 80mm

Rapid feed: 80mm

Tapping capacity: Aluminum M22, Steel M16

Product description: Tapping capacity: Aluminum M22, Steel M16, 80mm Stroke, 2.3kw, AutomaticDrill provides servo feed tapping units, servo control feed tapping equipment, servo tapping press, servo tapping machine
Quantity:

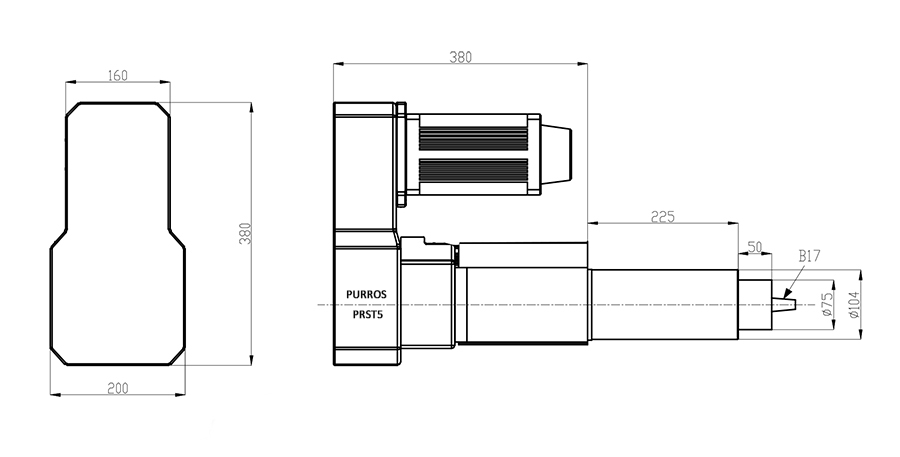

PURROS® Servo Feed Tapping Units Size

PURROS® Servo Feed Tapping Units Specifications

Parameters
TYPE
Rotating speedTapping capacityTravel adjustment rangeServo motor
specifications
The screw thread
Fast ForwardCuttingAluminumSteelFull strokeFast forward
to the trip
Pitch
feed stroke
MetricTeeth number
min-1
PRST3-H108MAX.
3370
Adjustment
range
1-1999
M10M8MAX.
70
MAX.
70
MAX.
50
1.8KW/220V
Three-phase/single-phase

The rated current value

8.0A

0.3
0.5
0.7
0.8
1
1.25
1.5
1.75
40
36
28
26
20
18
16
14
M8M6
PRST3-L108MAX.
1600

Adjustment

range

1-960
M12M12
M12M10
PRST5-H316MAX.
2200
Adjustment
range
1-1980
M14M8MAX.
80
MAX.
80
MAX.
50
2.3KW/220V
Three-phase/single-phase

The rated current value

9.5A

0.5
0.7
0.8
1.0
1.25
1.5
1.75
2.0
2.5
40
36
28
24
18
16
14
12
10
M12M8
PRST5-L316MAX.
875

Adjustment

range

1-780
M22M16
M18M12

Products can be equipped with Servo Feed Tapping Unit

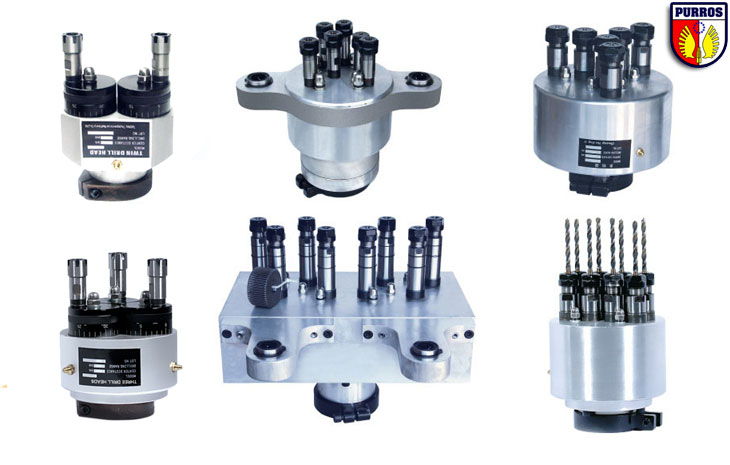

1. Multiple Spindle Heads

Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.

2. Fixed bracket

Such desktop support is suitable for any machining directions, which can fix the tapping units angle freely.

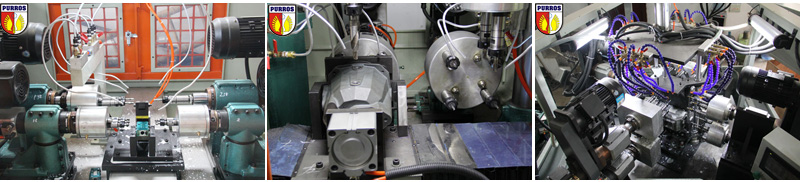

PURROS® Special Purpose Machine

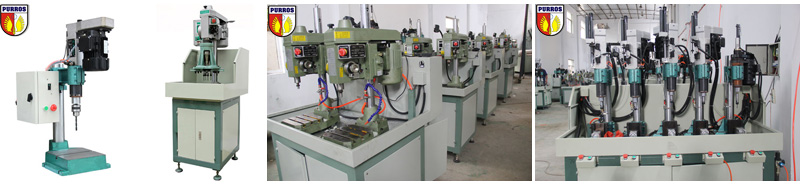

Multiple Drilling or Tapping Machine

Multiple Drilling or Tapping Machine

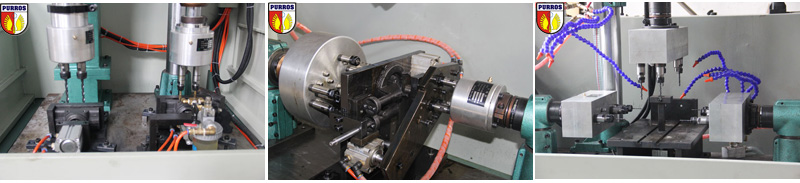

Multi Station Drilling or Tapping Machine

Multi Station Drilling or Tapping Machine

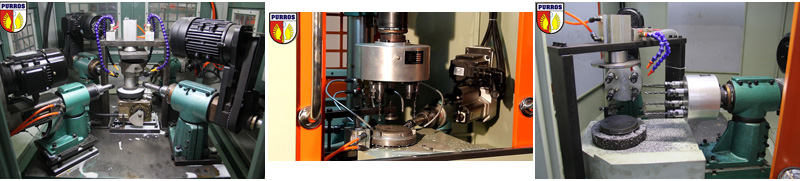

Rotary Index Drives Special Purpose Machine

Rotary Index Drives Special Purpose Machine

Sliding Table Special Purpose Machine

Sliding Table Special Purpose Machine

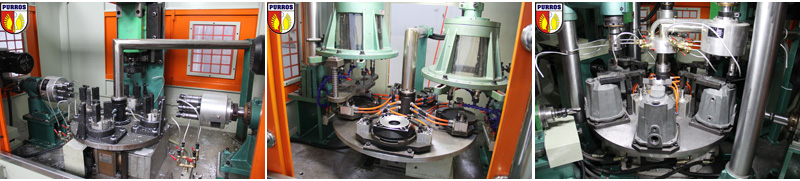

Rotary Table Special Purpose Machine

Rotary Table Special Purpose Machine
