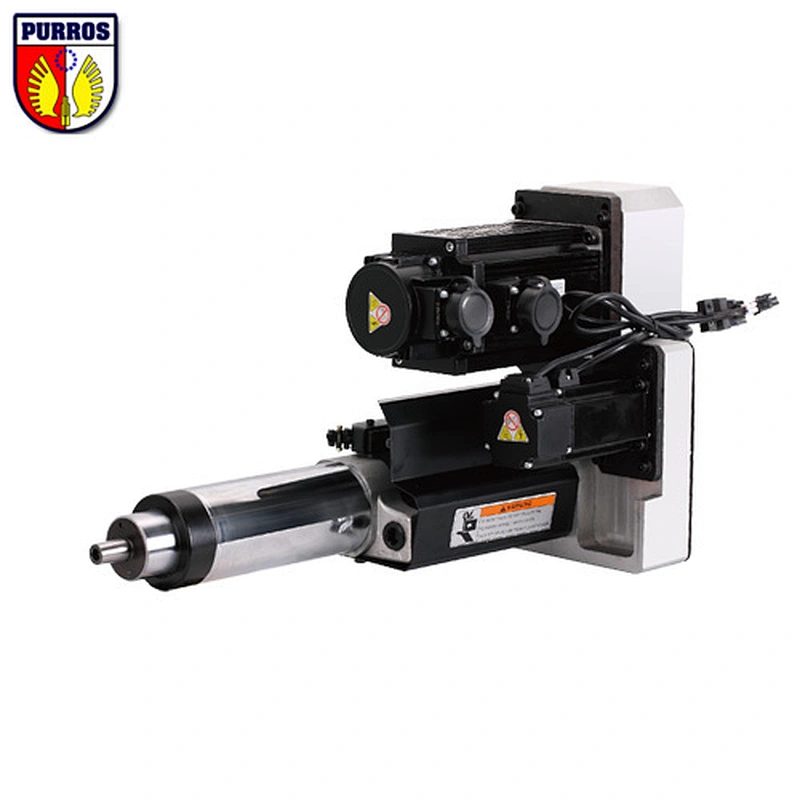

Servo Drilling & Tapping Unit PRST5-S
Servo Drilling & Tapping Unit PRST5-S

Servo Drilling & Tapping Unit PRST5-S

Model NO.
PRST5-S
Minimum order quantity:
1
Rotating speed: 0-5000 rpm

Max. Drilling capacity: Aluminum Φ18, Steel Φ13

Max. Tapping capacity: Aluminum M20, Steel M16

Spindle travel: 100mm

Product description: Drill/Tapper capacity: Aluminum Φ18/M20, Steel Φ13/M16, 100mm Stroke, Two Servo Feed & Speed Drilling Tapping Units, AutomaticDrill provides servo feed drilling units, servo control feed drill equipme
Quantity:

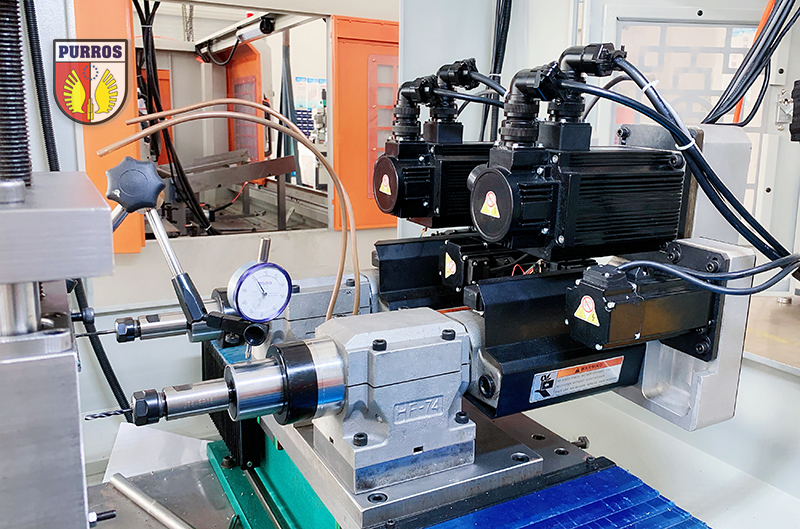

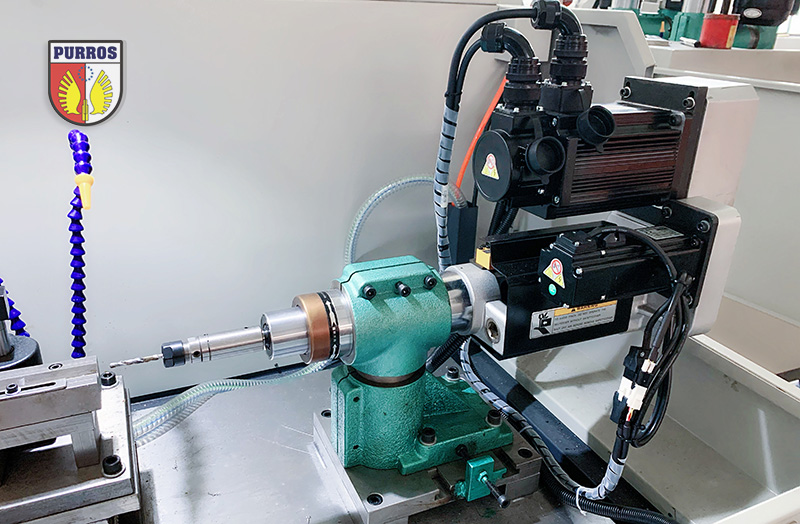

PURROS® Servo Drilling & Tapping Unit

Mode: PRST5-S
Rotating speed: 0-5000 rpm
Max. Drilling capacity: Aluminum Φ18, Steel Φ13
Max. Tapping capacity: Aluminum M20, Steel M16
Spindle travel: 100mm
Spindle motor power: 2.2kw
Feed motor power: 0.75kw

PURROS® Servo Drilling & Tapping Unit



PURROS® Servo Drilling & Tapping Unit Specification

ModelRotating speedSpindle motor powerFeed motor powerDrilling capacityTapping capacityFeed screwSpindle travel
SteelAluminumSteelAluminumguide travel
min-1kwkwmmmmmmmm
PRST3-S0-50001.80.4MAXMAXMAXMAX5100
1014M12M14
PRST5-S2.20.75MAXMAXMAXMAX
1318M16M20

Products can be equipped with Servo Drilling & Tapping Unit

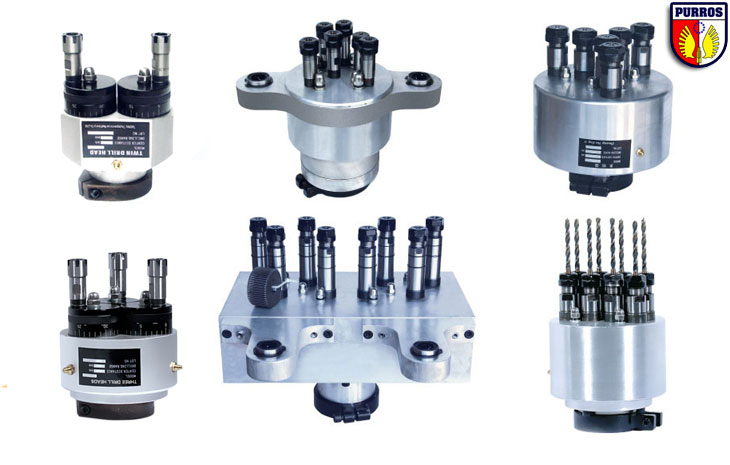

1. Multiple Spindle Heads

Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.

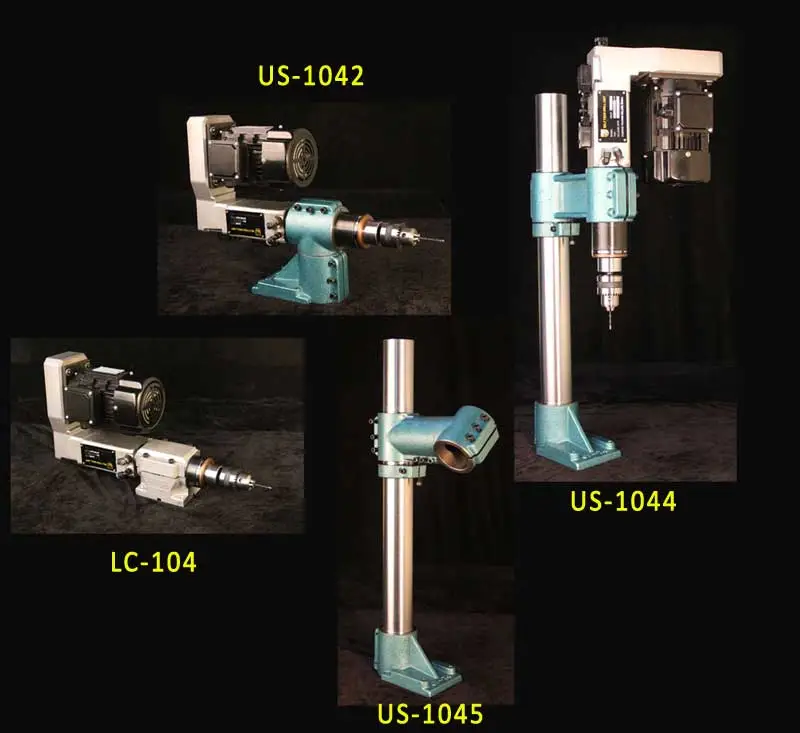

2. Fixed bracket

Such desktop support is suitable for any machining directions, which can fix the tapping units angle freely.

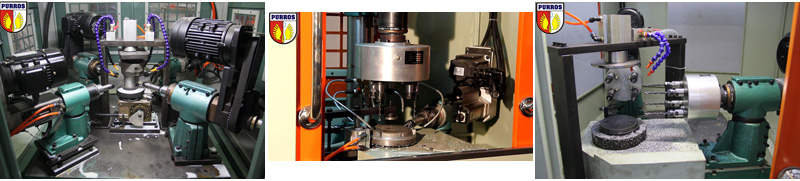

PURROS® Special Purpose Machine

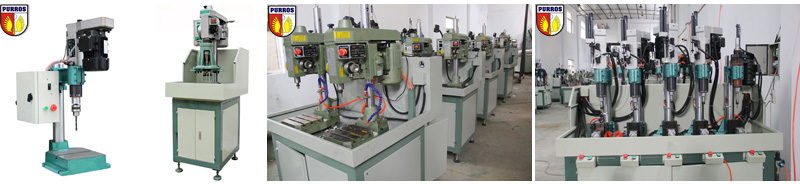

Multiple Drilling or Tapping Machine

Multiple Drilling or Tapping Machine

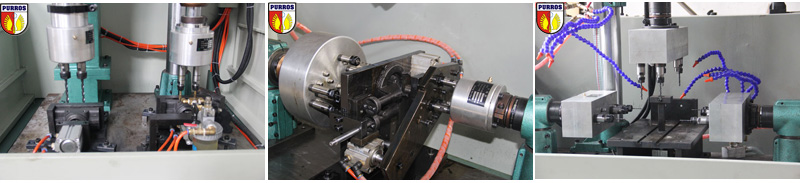

Multi Station Drilling or Tapping Machine

Multi Station Drilling or Tapping Machine

Rotary Index Drives Special Purpose Machine

Rotary Index Drives Special Purpose Machine

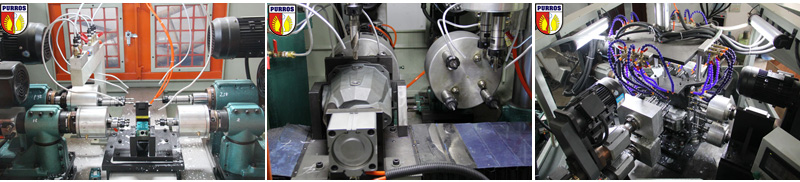

Sliding Table Special Purpose Machine

Sliding Table Special Purpose Machine

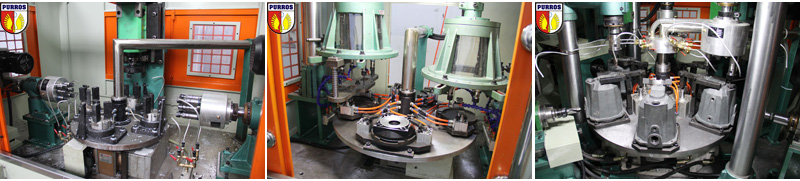

Rotary Table Special Purpose Machine

Rotary Table Special Purpose Machine
