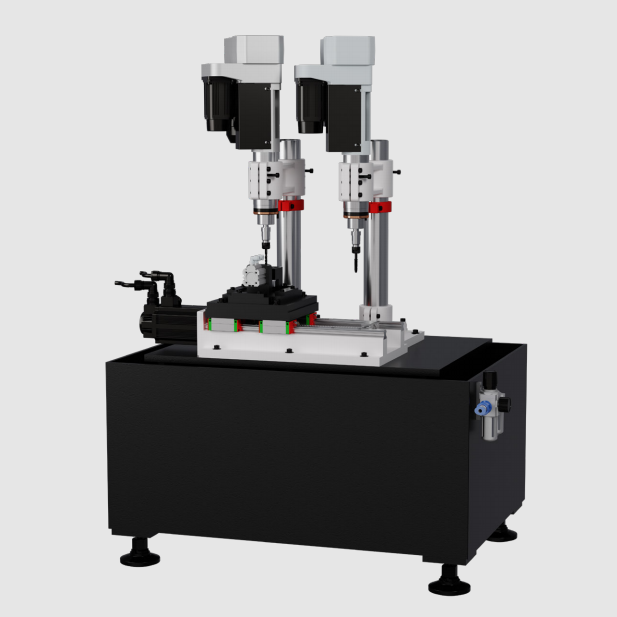

Sliding Table Drilling & Tapping Machine
Sliding Table Drilling & Tapping Machine

Sliding Table Drilling & Tapping Machine

Model NO.
PRMA-2888
Custom sliding table CNC machine for batch production: drilling, tapping, chamfering in one setup. 50% faster cycle times with servo-controlled precision. Specialized solutions for automotive/motorcycle parts, valves, electric tools. Get free configuration design.
Quantity:

Custom Sliding Table Drilling & Tapping Machine for Batch Production

Engineered for precision hole-making in high-volume manufacturing: Integrate drilling, tapping, chamferingandsurface milling in one automated setup. Achieve 0.01mm repeatability with our servo-controlled system - 60% faster than conventional machines.

Precision Engineering Features

Dual Servo-Driven Power Heads

Simultaneous drilling and tapping operations with independent control of:
• Spindle Speed: 100-3,500 RPM (programmable)
• Feed Rate: 10-5,000 mm/min
• Thread Pitch: M1.0-M24 (metric), UNC/UNF options

Smart PLC Control System

7"Touchscreen Interface with:
• 200+ Preset Tooling Parameters
• Real-time Process Monitoring
• Error Diagnostics System
• Multi-language Support (EN/ES/FR/DE)

ParameterStandard MachinesOur Machine
Daily Output (M8 Holes)2,400 pcs6,800 pcs
Tool Change Time8-12 minutes90 seconds
Positioning Accuracy±0.05mm±0.01mm

Proven in Precision Manufacturing

  • 🏍️ Motorcycle: Engine mounts, brake components
  • 🔧 Automotive: Transmission parts, sensor housings
  • ⚙️ Valves/Pumps: Body drilling, flange machining
  • 🔌 Electrical: Motor end shields, connector bodies
  • 🔒 Security Hardware: Lock cores, deadbolt machining
"After implementing XYZ's machine, our valve body production increased from 800 to 2,200 units/day with zero threading defects."- European Valve Manufacturer

Tailored Configuration Options

Multi-Spindle Upgrade

Simultaneously process 4-12 holes:
• 18mm minimum center distance
• Automatic tool compensation

Automated Material Handling

Choose your feeding system:
• Robotic Arm (5-15s cycle time)
• Vibratory Bowl Feeder
• Conveyor Belt System

Specialized Tooling

Available for:
• Drilling (Ø2-20mm)
• Deep-hole drilling (20×D ratio)
• Hardened Materials (HRC 45-55)

SpecificationDetails
Cooling System6MPa High-pressure Coolant with Filtration
Power Supply380V 3PH 50Hz (Other Voltages Available)
Machine Dimensions1,800×900×1,900mm (L×W×H)

Manufacturers Ask About

What's the minimum order quantity for custom machines?

We support both single-unit prototyping and bulk orders. Typical MOQ:
• Standard Config: 1 unit
• Custom Solutions: 1 unit

How long does customization take?

Lead times vary by complexity:
• Pre-engineered solutions: 30-45 days
• Full custom builds: 60-90 days
Expedited production available

Do you provide on-site installation?

Yes! Our global service package includes:
• 5-day factory acceptance test
• Installation & training at your facility
• 24/7 remote monitoring support
