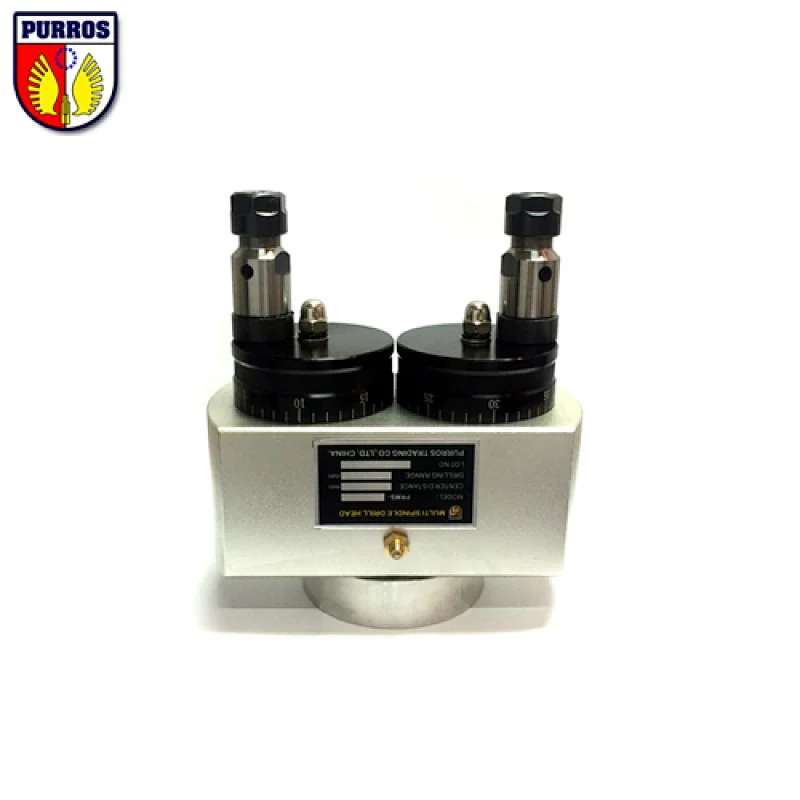

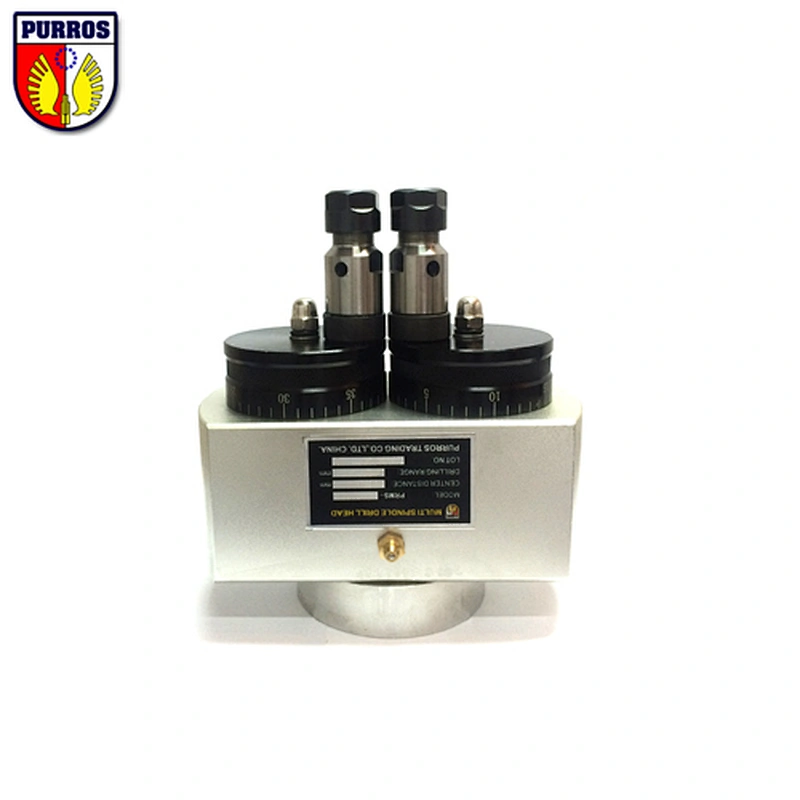

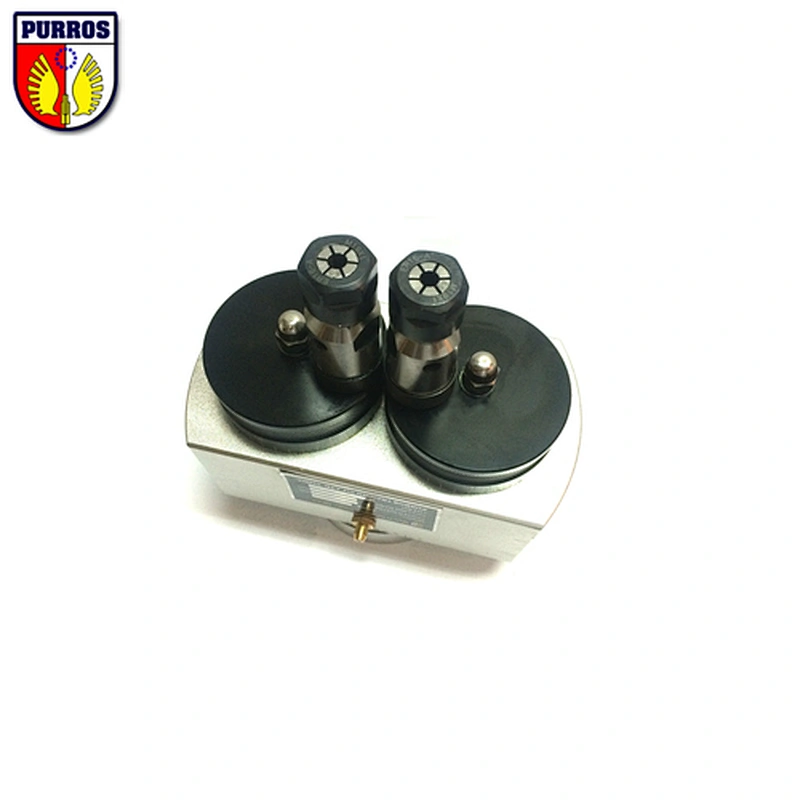

Adjustable Two Spindle Heads
Adjustable Two Spindle Heads
Adjustable Two Spindle Heads
Adjustable Two Spindle Heads
Adjustable Two Spindle Heads
Adjustable Two Spindle Heads
Adjustable Two Spindle Heads

Adjustable Two Spindle Heads

Model NO.
PRMS-223
Minimum order quantity:
1
PRMS-223 - Adj range: 23mm-91mm

PRMS-228 - Adj range: 28mm-120mm

PRMS-240 - Adj range: 40mm-130mm

PRMS-260 - Adj range: 60mm-152mm

Product description: Adjustable Double Spindle Heads, AutomaticDrill have a large selection of multi spindle heads to satisfy your drilling & tapping needs, Multi-spindle equipment allow you to reduce the time needed to
Quantity:

We are manufacture and suppliers of Multi Spindle Drill & Tapper Head that are fabrictaed using high grade raw material acquired from the trustworthy sources.The design comprises of helical gears that ensure noiseless and smooth operations.Our range of heads is used in a situation in which multiple drilling & tapping head is required on a compenent.

Parameter

Models

Spindles

Drill Capacity

Tapper Capacity

Type

Min. Distance

Max. Distance

PRMS-223

2

7.5

M8

Adjustable

23

91

PRMS-228

2

10

M10

Adjustable

28

120

PRMS-240

2

10

M10

Adjustable

40

130

PRMS-262

2

10

M10

Adjustable

62

150

PRMS-9218

2

7

M7

Fixed

18

100

PRMS-9228

2

10

M10

Fixed

28

150

PRMS-9238

2

15

M15

Fixed

38

200

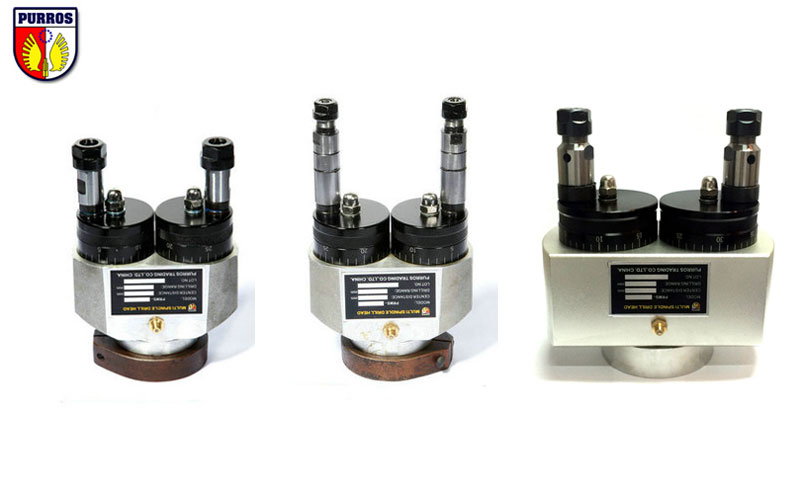

Adjustable Two Spindle Drilling and Tapping Heads

Adjustable Two Spindle Drilling Heads

Adjustable Two Spindle Tapping Heads

Advantages & Features:

1.The Heads are designed to allow maximum efficiency, high production and low operating cost on a wide variety of jobs with quick delivery.
2.Designed suitable for most drill, tap or feed units.
3.Compact housings are made of aluminum casting for light weight.
4.Different spindle configurations available.
5.1:1 speed ratios.
6.Properly heat treated quiet, efficient helical gears and spindles for long life and smooth operation.
7.Extremely precise tolerances on all rotating parts.
8.Spindle design suitable for high precision industry standard ER collect system.
9.Micromatic scales for easy center distance adjustment.
10.Rigid bearing housing & short overhang spindle design for rugged operation & continuous use.
11.Can be mounted at any positio.

Inquiry Inputs from customer to understand requirement clearly:
1.Material to be machined.
2.Size of holes.
3.Number of holes.
4.Operation to be performed.
5.Center distance between holes.
6.Fixed center distance or adjustable Center distance.
7.Drawing/sketch of Hole pattern.
8.Spindle out put rpm.
9.Motor HP of Machine on which head to be mounted.

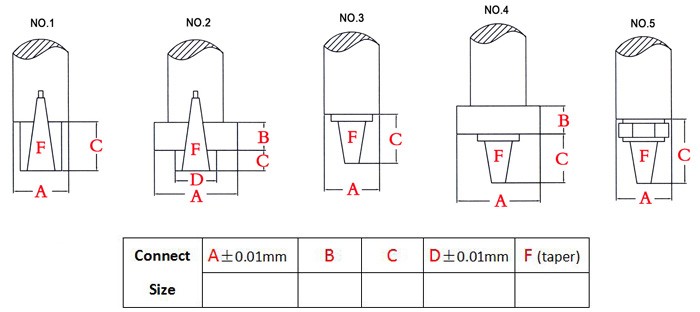

Connect Size

A: Spindle sleeve diameter
B: Spindle sleeve exposed length
C: Spindle rotating part exposed length
D: Spindle rotating part diameter
F: Connection type

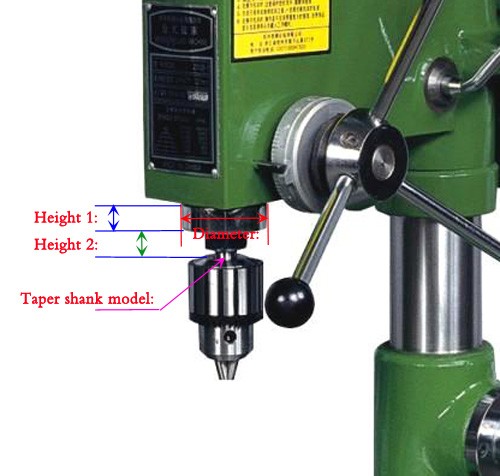

Bench Machine Connect Size

Please send Connect size(Diameter,Height 1,Height 2,Taper shank model) and bench drilling machine & tapping machine images to our email

Multi Spindle Heads apply to Special Purpose Machine

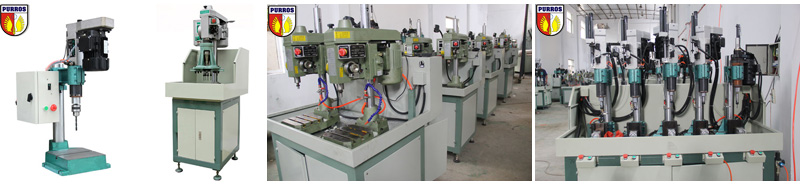

Multiple Drilling or Tapping Machine

Multiple Drilling or Tapping Machine

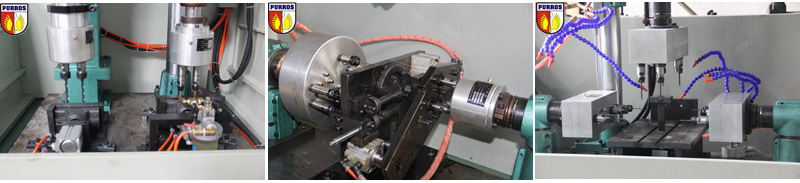

Multi Station Drilling or Tapping Machine

Multi Station Drilling or Tapping Machine

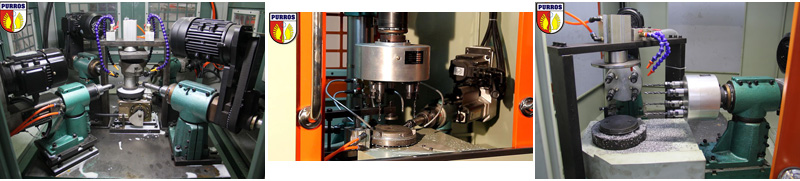

Rotary Index Drives Special Purpose Machine

Rotary Index Drives Special Purpose Machine

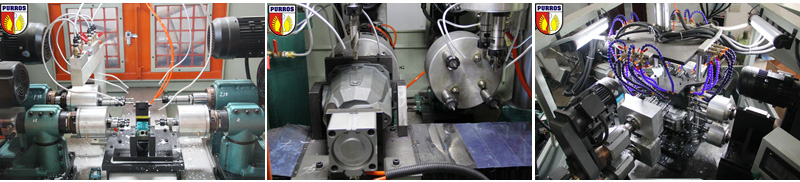

Sliding Table Special Purpose Machine

Sliding Table Special Purpose Machine

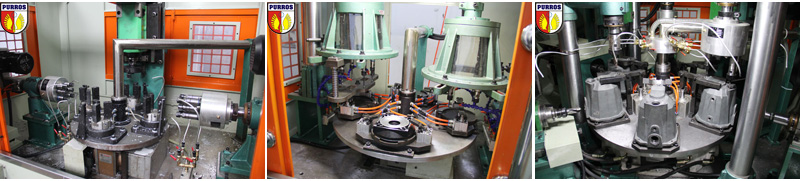

Rotary Table Special Purpose Machine

Rotary Table Special Purpose Machine
