Flex Stand: Horizontal 3 Axis Angle Adjustment (Base Support+Swivel Support)

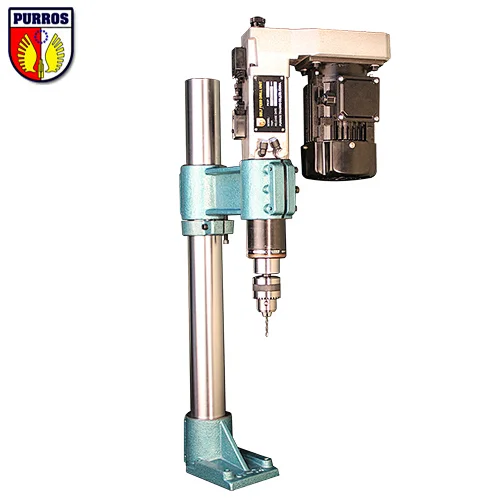

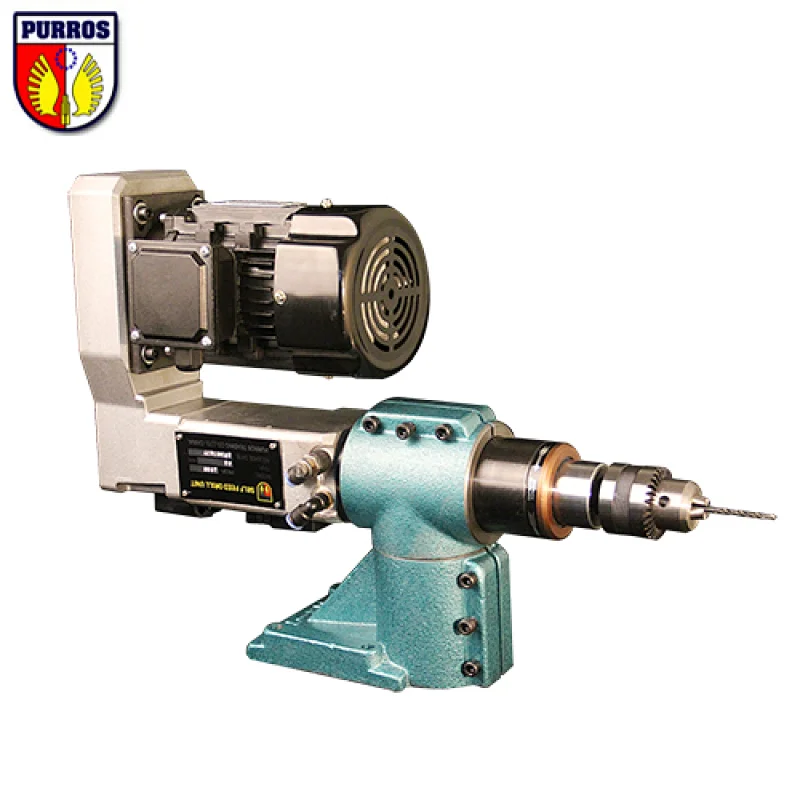

Flex Stand is a jig for securing round-bodied Auto Feed Drill Unit models and Auto Feed Tapping Unit models at any angle.
Flexible/adjustable mounting components engineered for 3 axis angle adjustment providing excellent rigidity.

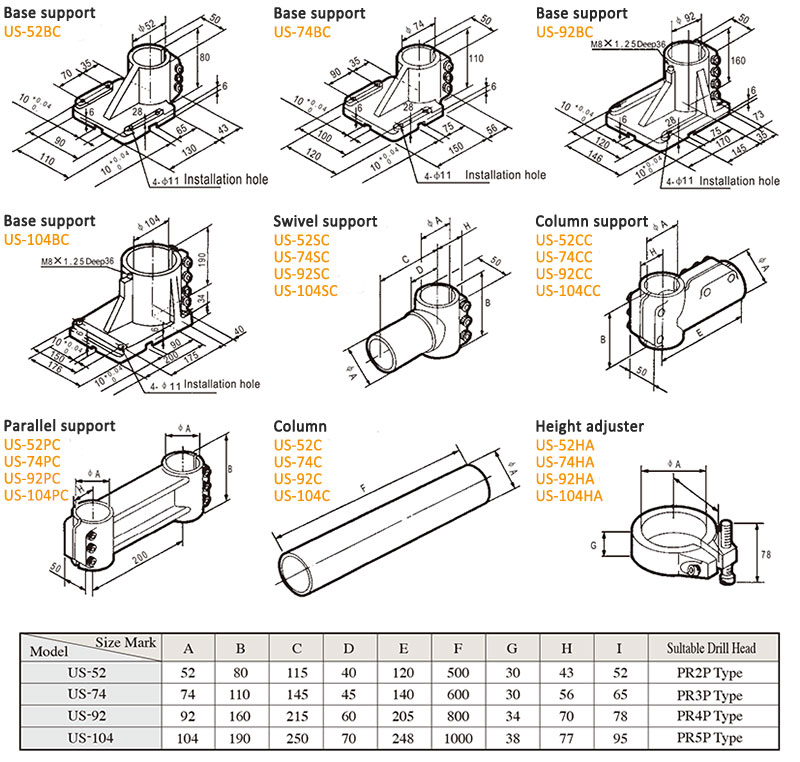

Stand parts examples
There are many other Flex Stand models available.Various combinations can be selected depending on the machine layout.
Flex Stand is a jig for securing round-bodied Auto Feed Drill Unit models and Auto Feed Tapping Unit models at any angle.
Flexible/adjustable mounting components engineered for 3 axis angle adjustment providing excellent rigidity.
Stand parts examples
There are many other Flex Stand models available.Various combinations can be selected depending on the machine layout.
Supported models
| Name | Model | ||

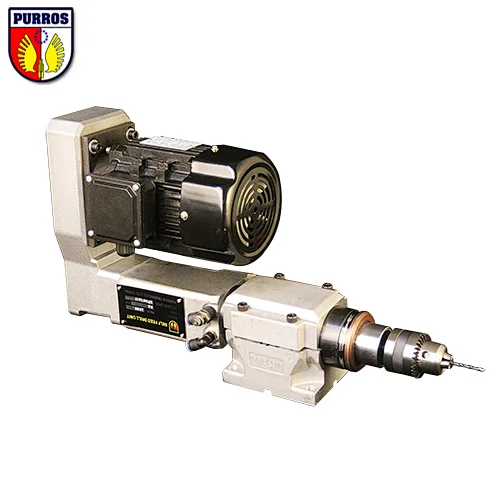

| Self Feed Drilling Unit | PR3P, PR32P | PR4P | PR5P |
| Servo Feed Drilling Unit | PR3PS | PR5PS | |
| Servo Feed Tapping Unit | PRST3 | PRST5 | |
| Auto Feed Tapping Unit | PRMT3 | PRMT5 | |
| Servo Drilling & Tapping Unit | PRST3-S | PRST5-S | |
| Flex Stand Model | US-742 | US-922 | US-1042 |
