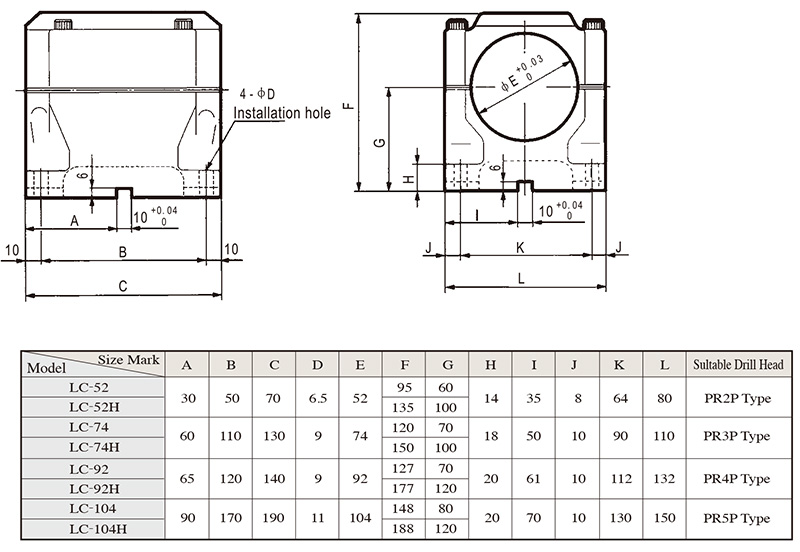

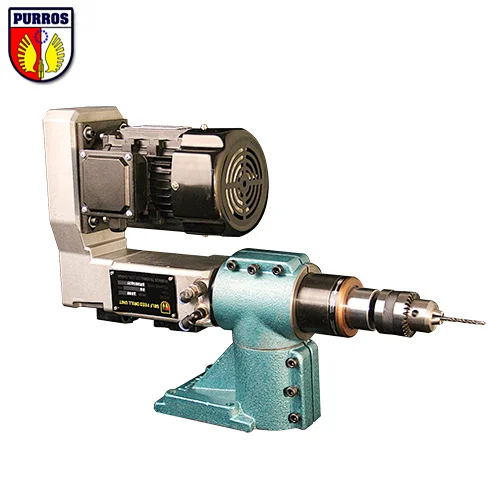

Simplistic mounting block, with precision cross key-way. Most often used on common vertical/horizontal applications or where customers mill angle plates for mounting.

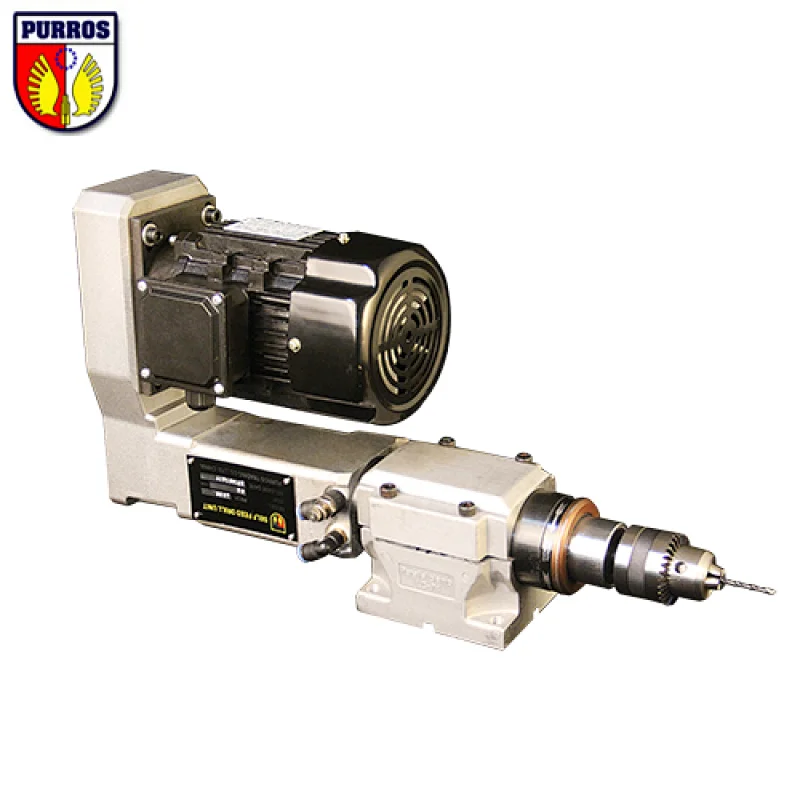

The “Parallel Clamp” is a jig for mounting round-bodied drilling unit & tapping unit parallel to the machine base. two types are ofered according to the axle centre height.
Parallel Clamps are used with the Model PR3P, PR32P, PR3PS, PRST3, PRST3-S, PRMT3, PR4P, PR5P, PR5PS, PRST5, PRST5-S, PRMT5. they provide a simple, accurate and secure drilling unit & tapping unit attachment to the machine base. Crossing keyways on the bottom of the clamp provide accurate alignment.
The “Parallel Clamp” is a jig for mounting round-bodied drilling unit & tapping unit parallel to the machine base. two types are ofered according to the axle centre height.
Parallel Clamps are used with the Model PR3P, PR32P, PR3PS, PRST3, PRST3-S, PRMT3, PR4P, PR5P, PR5PS, PRST5, PRST5-S, PRMT5. they provide a simple, accurate and secure drilling unit & tapping unit attachment to the machine base. Crossing keyways on the bottom of the clamp provide accurate alignment.
Supported models

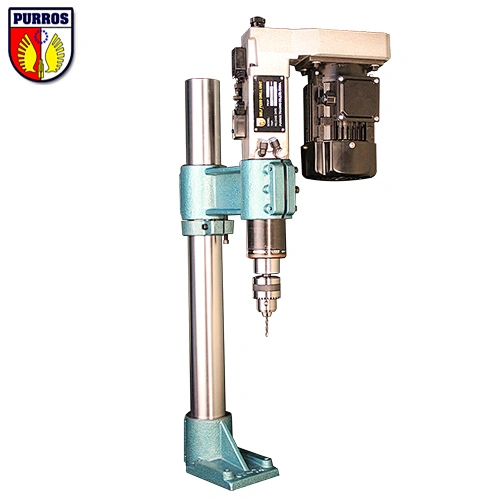

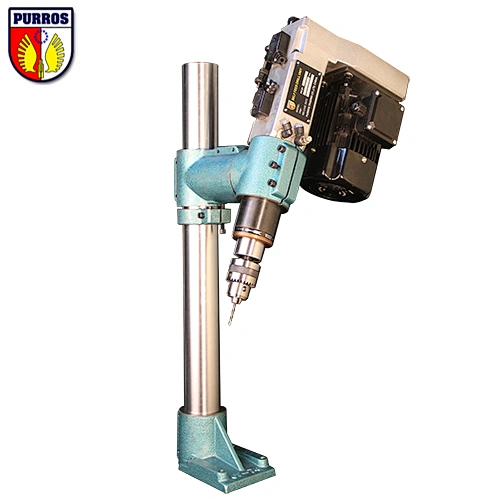

| Name | Model | ||
| Self Feed Drilling Unit | PR3P, PR32P | PR4P | PR5P |
| Servo Feed Drilling Unit | PR3PS | PR5PS | |
| Servo Feed Tapping Unit | PRST3 | PRST5 | |
| Auto Feed Tapping Unit | PRMT3 | PRMT5 | |
| Servo Drilling & Tapping Unit | PRST3-S | PRST5-S | |
| Flex Stand Model | LC-74 | LC-92 | LC-104 |
