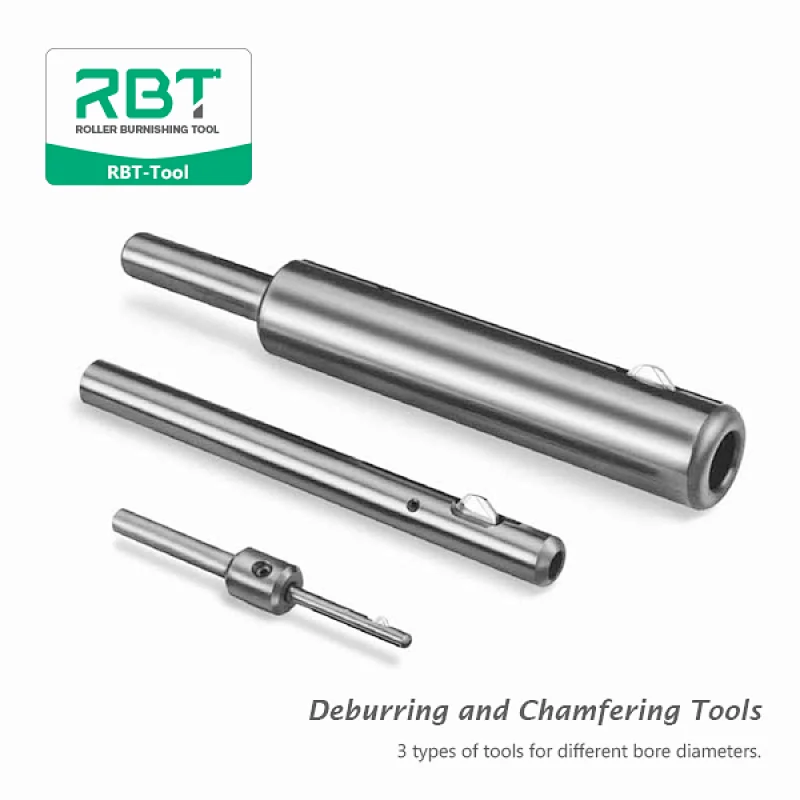

FT Deburring Tools
FT Deburring Tools for smaller sized holes of medical, automotive and electronic applications demanding continually.
RBT’s FT Deburring Tools features are inexpensive, replaceable cartridges which include the arbor and blade, and a holder which accommodates all the different cartridges. The FT Deburring Tools can be set differently in order to deburr various sizes of deburring lags, both sides of even the smallest of holes in one pass. The two-piece construction allows you to remove and replace a cartridge conveniently. The FT Deburring Tools can be used in both CNC machines as well as hand drills – special adjustments are not required.
Features:
• Easy to use on all machines
• Changing the direction of the rotation is not required
• Cost-efficient tools and spare blades
• Easy replacement and long service life of the blades
• Deburring thickness adjustable via spring tension
• Solutions for various applications realizable
• Standard tools from Ø 2,0 to Ø 50,0 from stock

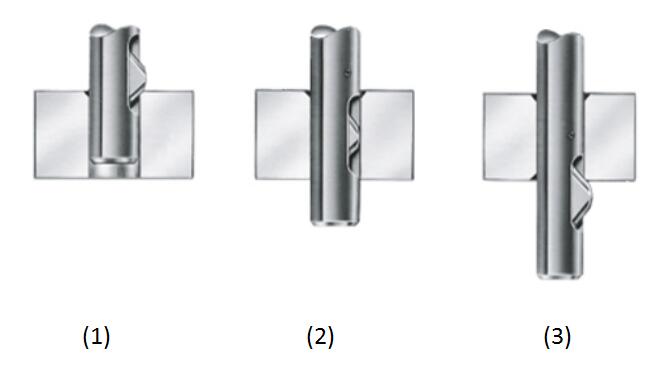

HOW FT DEBURRING TOOLS WORKS?

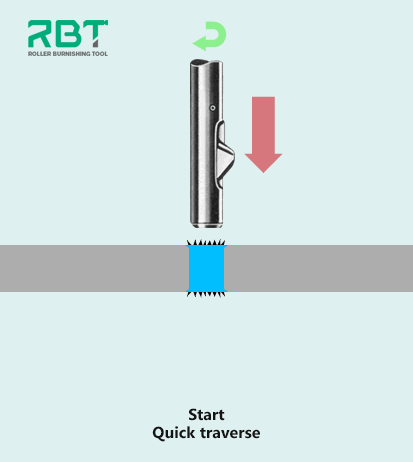

1. Feed-in
Upon entry, the burr on the front side is removed due to the spring tension holds the cutting blade in the extended position.
2. Feed-thru
As the feeding increase, passing through the bore the blade is pressed under spring pressure and retracted automatically. (The crowned and polished top surface of the cutting edge will not mar inside bore surface of workpiece).
3. Feed-out
Through back side of the hole, spring tension again causes the blade to extend as it emerges from the internal of the workpiece. On the return stroke, the burr is deburred on the back side of hole.
Unit (mm)
Unit (mm)
Unit (mm)
FT Deburring Tools for smaller sized holes of medical, automotive and electronic applications demanding continually.
RBT’s FT Deburring Tools features are inexpensive, replaceable cartridges which include the arbor and blade, and a holder which accommodates all the different cartridges. The FT Deburring Tools can be set differently in order to deburr various sizes of deburring lags, both sides of even the smallest of holes in one pass. The two-piece construction allows you to remove and replace a cartridge conveniently. The FT Deburring Tools can be used in both CNC machines as well as hand drills – special adjustments are not required.
Features:
• Easy to use on all machines
• Changing the direction of the rotation is not required
• Cost-efficient tools and spare blades
• Easy replacement and long service life of the blades
• Deburring thickness adjustable via spring tension
• Solutions for various applications realizable
• Standard tools from Ø 2,0 to Ø 50,0 from stock
HOW FT DEBURRING TOOLS WORKS?
1. Feed-in
Upon entry, the burr on the front side is removed due to the spring tension holds the cutting blade in the extended position.
2. Feed-thru
As the feeding increase, passing through the bore the blade is pressed under spring pressure and retracted automatically. (The crowned and polished top surface of the cutting edge will not mar inside bore surface of workpiece).
3. Feed-out
Through back side of the hole, spring tension again causes the blade to extend as it emerges from the internal of the workpiece. On the return stroke, the burr is deburred on the back side of hole.
Unit (mm)

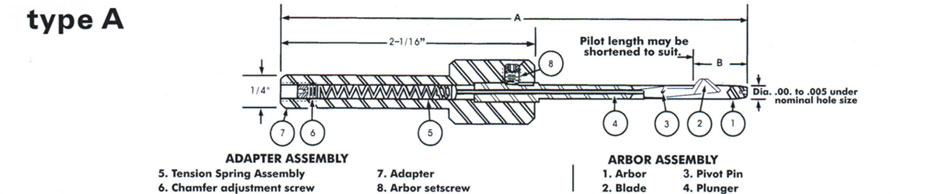

| Tool Model A | Hole Size | Dim.(A) | Dim.(B) | Balde Size | Rotate Speed(RPM) |
| RBT-FT-3 | 3 | 87.5 | 3.5 | sv-1/8# | 800-1000 |
| RBT-FT-4 | 4 | 98 | 3.5 | sv-1/8# | 800-1000 |
| RBT-FT-5 | 5 | 105 | 3.8 | sv-3/16# | 800-1000 |
Unit (mm)

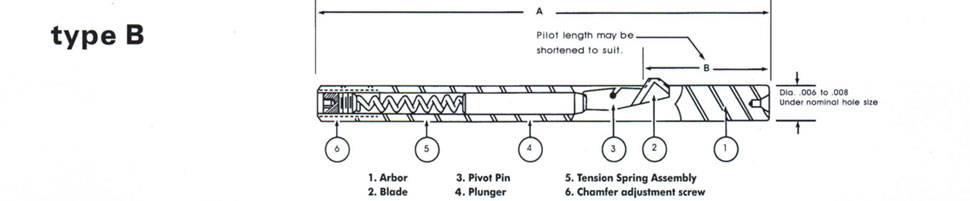

| Tool Model B | Hole Size | Dim.(A) | Dim.(B) | Balde Size | Rotate Speed(RPM) |
| RBT-FT-6 | 6 | 110 | 5 | 1# | 800-1000 |
| RBT-FT-7 | 7 | 110 | 5 | 1# | 800-1000 |
| RBT-FT-8 | 8 | 115 | 5 | 2# | 800-1000 |
| RBT-FT-9 | 9 | 127 | 5 | 3# | 800-1000 |
| RBT-FT-10 | 10 | 127 | 5 | 3# | 800-1000 |
| RBT-FT-11 | 11 | 127 | 5 | 3-1/2# | 600 |
| RBT-FT-12 | 12 | 127 | 5 | 3-1/2# | 600 |
| RBT-FT-13 | 13 | 127 | 10 | 3-1/2# | 600 |
| RBT-FT-14 | 14 | 140 | 10 | 4# | 600 |
| RBT-FT-15 | 15 | 140 | 10 | 4# | 600 |
| RBT-FT-16 | 16 | 155 | 10 | 4# | 600 |
| RBT-FT-17 | 17 | 155 | 10 | 4# | 600 |
| RBT-FT-18 | 18 | 155 | 10 | 4# | 600 |
| RBT-FT-19 | 19 | 180 | 10 | 4# | 600 |
Unit (mm)

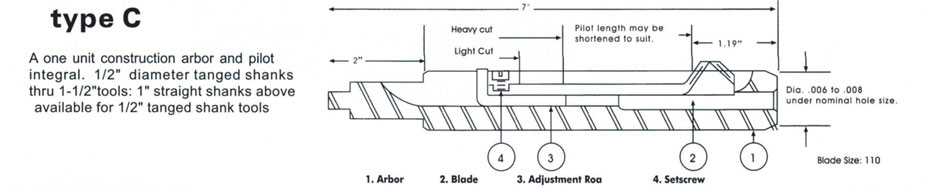

| Tool Model C | Hole Size | Balde Size | Rotate Speed(RPM) |
| RBT-FT-20 | 20 | 5# | 600 |
| RBT-FT-21 | 21 | 5# | 600 |
| RBT-FT-22 | 22 | 5# | 600 |
| RBT-FT-23 | 23 | 5# | 600 |
| RBT-FT-24 | 24 | 5# | 600 |
| RBT-FT-25 | 25 | 5# | 600 |
