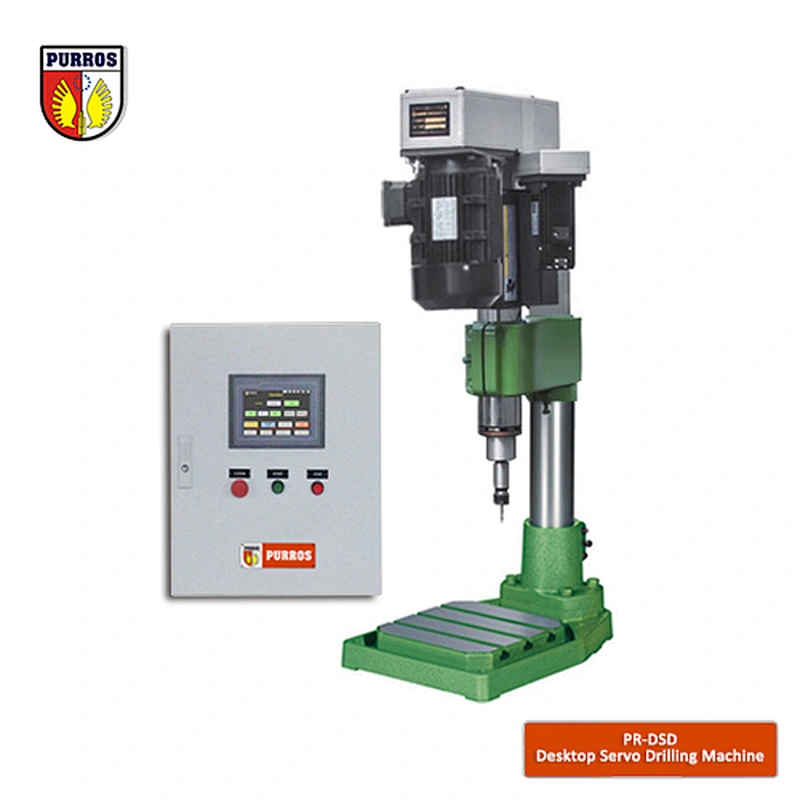

Desktop Servo Drilling Machine
Desktop Servo Drilling Machine

Desktop Servo Drilling Machine

Model NO.
PR-DSD
Spindle motors: 0.55 kw

Feed motors: 0.4 kw

Standard stroke: 100mm

Drilling capacity: S45C/8.5mm

Product description: PR-DSD Desktop Servo Drilling Machine, 100mm Stroke, S45C/8.5mm, can set the drilling depth and feed rate freely by touch screen within the program.
Quantity:
Description:

PR-DSD Desktop Servo Drilling Machine consists of spindle motor and servo feed motor. The spindle speed is set before delivery or adjusted by belt pulley. can set the drilling depth and feed rate freely by touch screen within the program, ideal for small diameter, deep hole drilling, chamfering etc. Furthermore, as cycle time can be greatly reduced using a second home position, accuracy and efficiency of drilling dramatically improves. It is possible to attach multi spindle head & automatic fixture to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.

Parameter:
MODELPR-DSD3PR-DSD5
Machine tool dimension300×450×900mm300×450×1000mm
Working table effective size230×230mm230×230mm
Column diameterΦ74mmΦ104mm
Spindle diameterΦ50mmΦ70mm
Spindle taperJT6B18
Spindle nose to table180mm220mm
Spindle full stroke100mm100mm
Spindle speedOptionalOptional
Spindle Motor power0.55Kw0.75Kw
Feed Motor power0.4Kw0.75Kw
Drilling capacityS45C/8.5mmS45C/12mm
Fixture systemOptionalOptional
Control systemPLCPLC
Control panelTouch ScreenTouch Screen
Total weight70Kg100Kg
