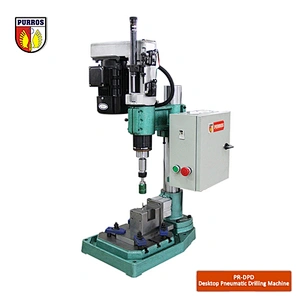

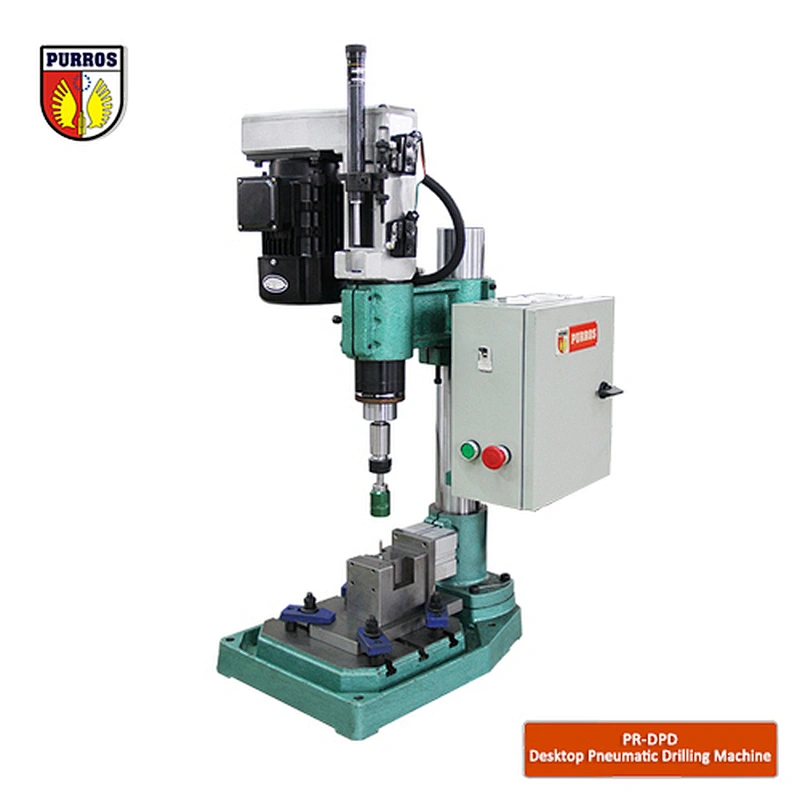

Desktop Pneumatic Drilling Machine
Desktop Pneumatic Drilling Machine
Desktop Pneumatic Drilling Machine

Desktop Pneumatic Drilling Machine

Model NO.
PR-DPD3
Spindle motors: 0.55 kw

Spindle speed: 600-7500 rpm

Standard stroke: 80mm

Drilling capacity: S45C/8.5mm

Product description: PR-DPD3 Desktop Pneumatic Drilling Machine, 0.55 kw, S45C/8.5mm, 600-7500 rpm, 80mm Stroke, fast arrival at the workpiece, adjustable drilling feed speed with hydro speed regulator, fast return.
Quantity:
Description:

PR-DPD3 Desktop Pneumatic Drilling Machine can improve the processing efficiency: fast arrival at the workpiece, adjustable drilling feed speed with hydro speed regulator, fast return. Same-day operation can be carried out by simply supplying a connection of power and air. The machine makes effective use of processing areas because it is equipped with an up-down adjustment and swing mechanism. It is possible to attach multi spindle head & automatic fixture to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.

Parameter:
MODELPR-DPD3PR-DPD3L
Machine tool dimension300×450×900mm300×450×1000mm
Working table effective size230×230mm230×230mm
Column diameterΦ74mmΦ74mm
Spindle diameterΦ50mmΦ50mm
Spindle taperJT6JT6
Spindle nose to table180mm180mm
Spindle full stroke80mm150mm
Feed stroke control30/60mm30/60/80/100mm
Spindle speedOptionalOptional
Spindle Motor power0.55/0.75Kw0.55/0.75Kw
Drilling capacityS45C/8.5mmS45C/8.5mm
Fixture systemOptionalOptional
Standard working pressure0.5MPa0.5MPa
Total weight70Kg80Kg
