Auto drilling chamfering & tapping machine for hinges
Auto drilling chamfering & tapping machine for hinges

Auto drilling chamfering & tapping machine for hinges

Model NO.
PR-CA93

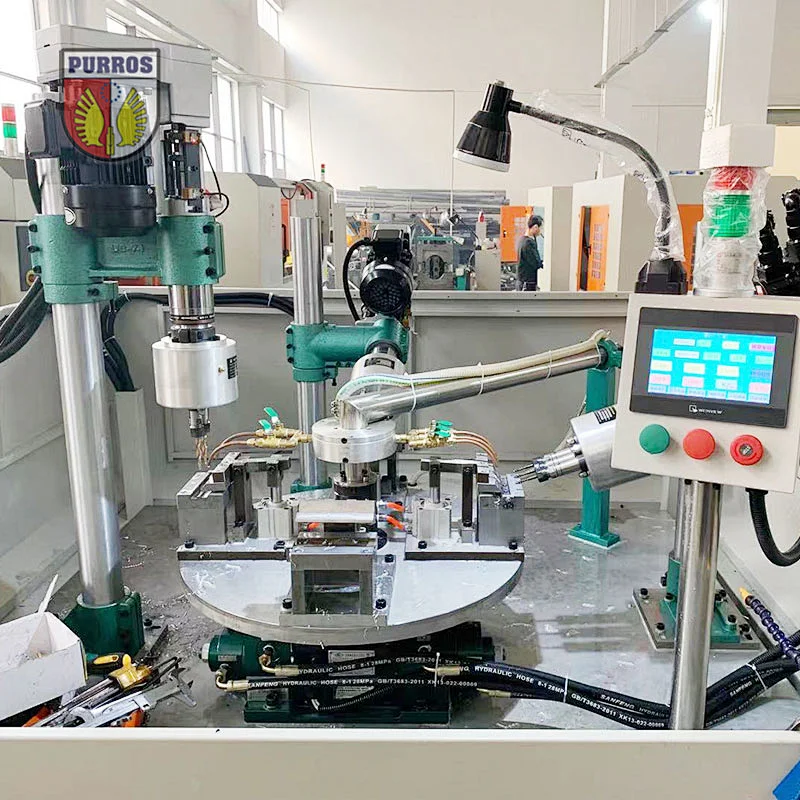

Automatic drilling & tapping machine for aluminum door and window hinges adopts self feed drilling machine, servo feed tapping machine with multi-spindle Heads, oil pressure rotary table, one-time clamping and PLC control. Ordinary people can quickly use the machine to complete the drilling chamfering & tapping processing of products with high efficiency and high precision
Quantity:

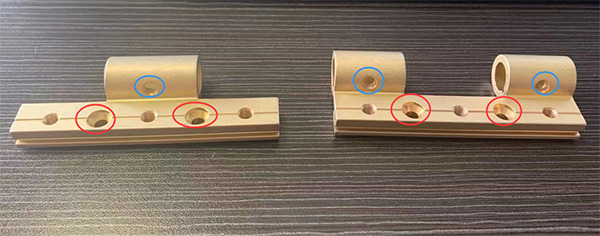

This is the hinge of doors and windows. There are two products. One product has two holes to be drilled and chamfered, and two holes on the arc need to be drilled and tapped; Another product is that two holes need to be drilled and chamfered, and one hole on the arc needs to be drilled and tapped. The machine can be used for both products

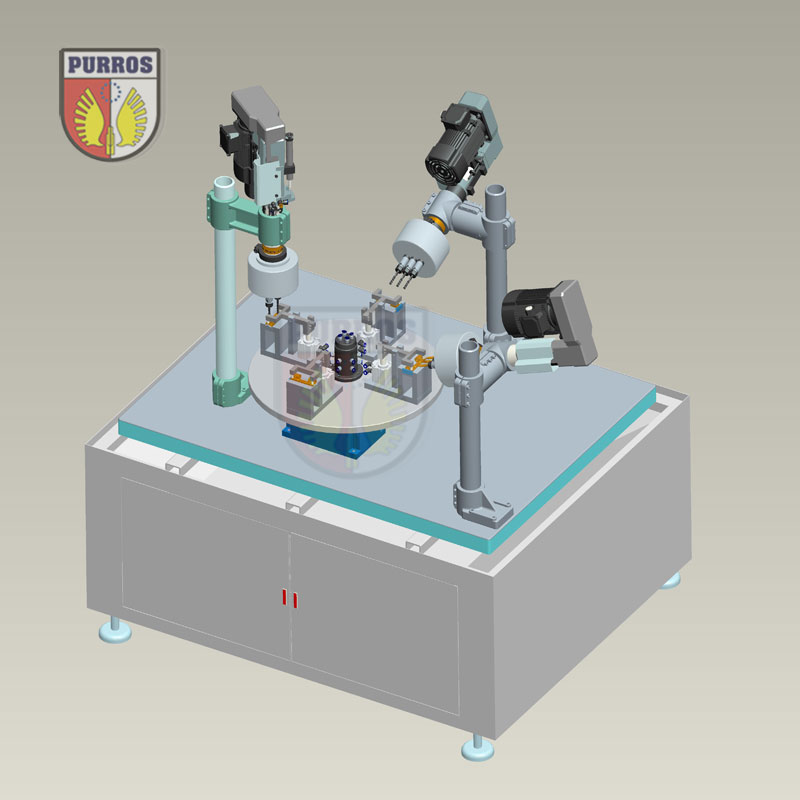

Therefore, we have designed the following schemes for customers:



The specific processing steps are as follows:

Put the aluminum hinges into the automatic pneumatic fixture, the fixture will clamp automatically, pneumatic automatic drilling unit  with 2-spindles drilling head will start drilling & chamfering, rotary table rotation, then pneumatic automatic drilling unit  with 3-spindles drilling head will start drilling, rotary table rotation, servo tapping machines  with 3-spindles tapping head will start tapping, rotary table rotation and the fixture will open automatically.


Auto drilling & tapping machine for aluminum door and window hinges Processing video




Subscribe to PURROS YouTube channels and see more special purpose machine videos


Purros can designs and builds a wide variety of Multiaspect Special Purpose drilling & tapping chamfering Machines to suit customer's product needs.
If you also want to know whether the special purpose machine is suitable for your product, please send drawings or product pictures to our email (sale@purros.com) or Send Inquiry to us, and the engineer will reply to you at the first time and provide machine design, consultation and quotation of the scheme for free.

Our Service

1. Before payment
a. Fastly and professional reply to you about your questions for our special purpose machine.
b. Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
c. Free professional design for each customer especially.
d. Welcome to visit our factory.

2. After-Sales Service
We will send engineers / technicians to make commissioning at buyer’s factory, train the machine works well, and also supply the technical support for free and spare parts at good price always.

3. Guarantee Period
One year. During the guarantee period, the seller guarantee to solve all problems may occur due to machine’s quality or wrong design, and to provide all necessary spare parts for repair, Seller can send the technician to buyer’s factory on seller’s account if problem is serious and can’t be solved by Buyer.

4. Payment Terms
30% as deposit, 70% after the machine is ready before delivery.

5. Lead Time
Our delivery time generally it is 30-40 days if the machines are in stock, or it is 70-90 days if the machines are not in stock, it is according to quantity.
