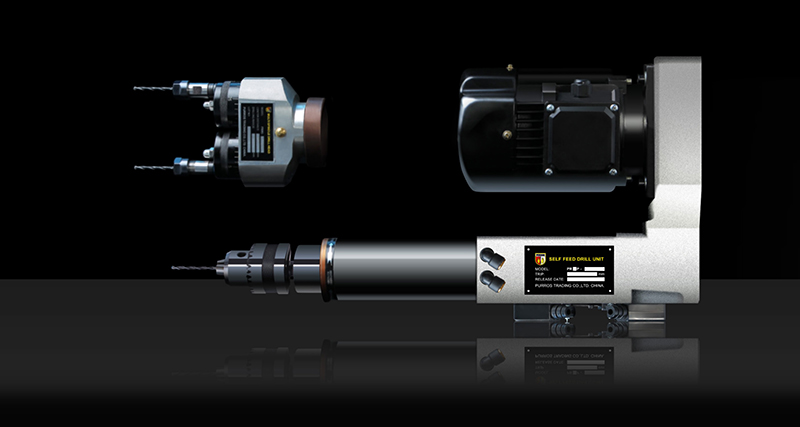

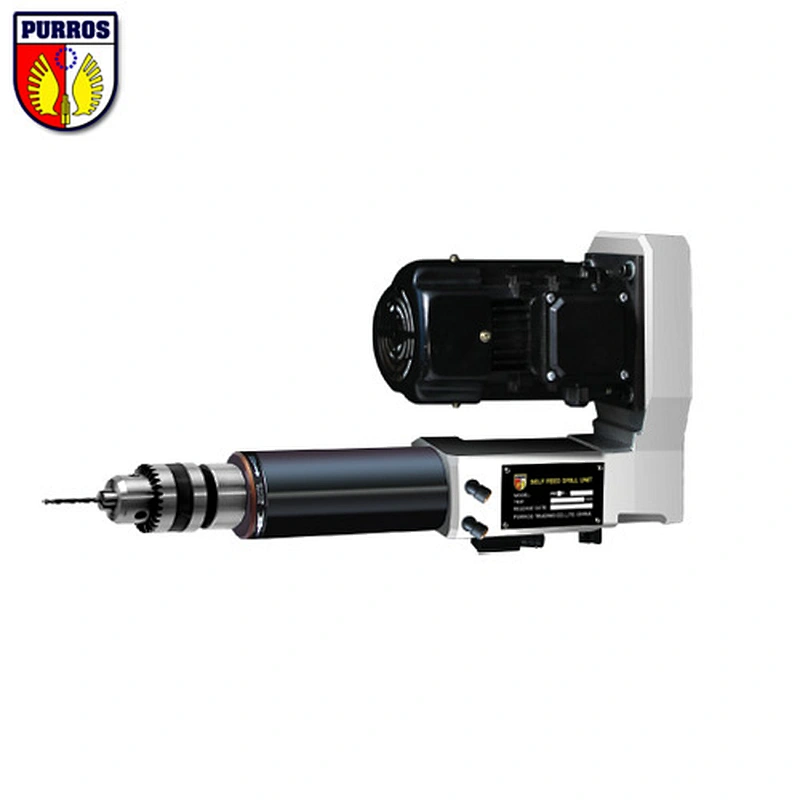

Self Feed Drill Units PR3P
Self Feed Drill Units PR3P

Self Feed Drill Units PR3P

Model NO.
PR3P
Spindle motors: 0.75 kw

Spindle speed: 700-7500 rpm

Standard stroke: 80mm, 120mm

Drilling capacity: Aluminum Φ12, Cast iron Φ9.5, Steel Φ8.5

Product description: Drilling capacity: Aluminum Φ12, Cast iron Φ9.5, Steel Φ8.5. AutomaticDrill provides pneumatic auto feed drilling heads, 0.75 kw, 700-7500 rpm, 80mm Stroke, automated drill equipment and auto drilling
Quantity:

PURROS® Self Feed Drilling Unit PR3P Parameters

Model: PR3P
No-load speed: 700-7500R/M
Drilling diameter: Aluminum: 3.3-12mm / Cast iron: 1.5-9.5mm / Steel: 1.5-8.5mm
Spindle stroke: 80mm/120mm
Cutting feed stroke: 30mm, 60mm, 80mm, 100mm
Motor power: 0.75kw
Feed driving: 1200N
Air consumption: 3-6L

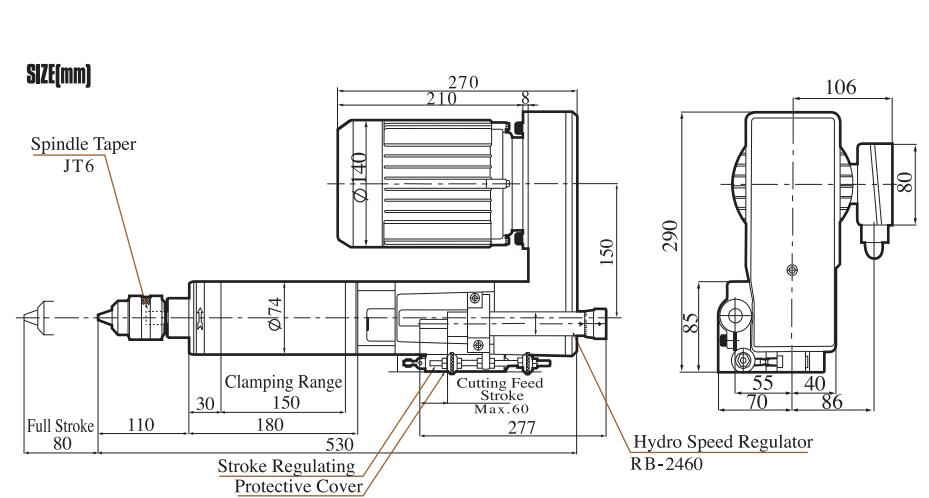

PURROS® Self Feed Drilling Unit PR3P Size

PURROS® Self Feed Drilling Unit PR3P Parameters

Model
number
No-Load rotational speedChucking
capacity
Drilling capacityStrokeMotorThrustWeight
50 Hz60 HzAlIronSteelTotal
stroke
Cutting
stroke
OutputPoles
number
min-1mmmmmmmmkwPNkg
PR3P-3075750090006.53.31.51.580600.552120021
PR3P-3075L12010025
PR3P-3060600072004.21.61.6806021
PR3P-3060L12010025
PR3P-6049490059005.52.22.2806021
PR3P-6049L12010025
PR3P-6034340041006.53.23.2806021
PR3P-6034L12010025
PR3P-1326260032001383.83.8806021
PR3P-1326L12010025
PR3P-13181800220095.54.580600.75421
PR3P-1318L12010025
PR3P-131414001700106.56806021
PR3P-1314L12010025
PR3P-13101000120010.58.57.5806021
PR3P-1310L12010025
PR3P-1307700800129.58.5806021
PR3P-1307L12010025


NOTE:
1. The selection of models should be based on the shape of the work, material, cutting characteristics, diameter and material of tools, rotation speed (cutting speed), etc.
2. The drilling capacity displayed in the above table is based on values representing a drilling depth of two times the diameter of the drill.
3. The standard attachment for the hydro speed regulator is RB-2430. Please specify an optional Hydro Speed Regulator if required. (Optional Hydro Speed Regulator Models: RB-2460, R-2460A)
4. Maximum weight of the attachment that can be mounted when machining downwards is 12 kg.
5. Make sure to use a collet chuck or spindle nose when the hardness of carbide drills and tool shanks is higher than that of general HSS (high-speed steel) drills.

Features:

1. High-precision
Core technology of Electro Pneumatic Drilling Units is played very well, which completely strengthened the versatility of the product and thus made the high precision of Drilling Units reflected extremely.
2. High rigidity
Axial rail structure is used, which greatly improved the overall rigidity and fully guaranteed the stability of the hole machining.
3. High performance
A unique dual sealing structure and round body that is easy and convenient to be installed are available at the end of spindle, which can meet variety of holes machining requirement.


Products can be equipped with Self Feeding Drilling Unit PR3P

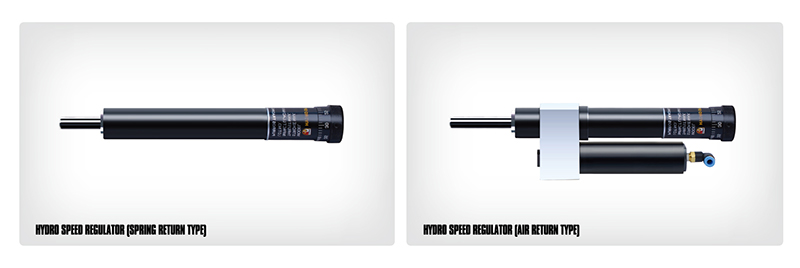

1. Hydro Speed Regulator
Speed can be adjusted arbitrarily from lower to higher by a hydraulic feeding speed control device.

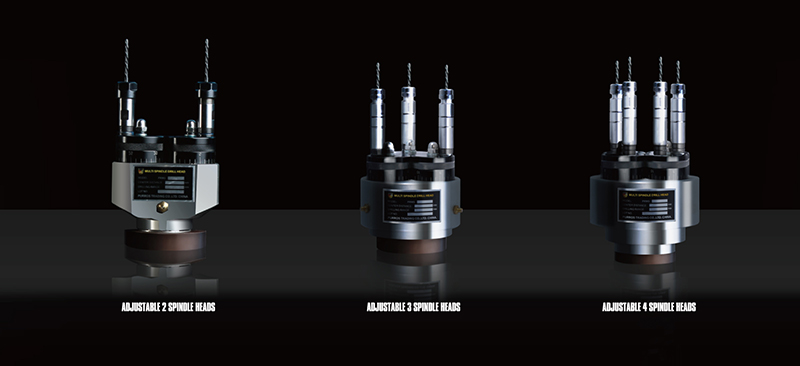

2. Multiple Spindle Heads

Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.

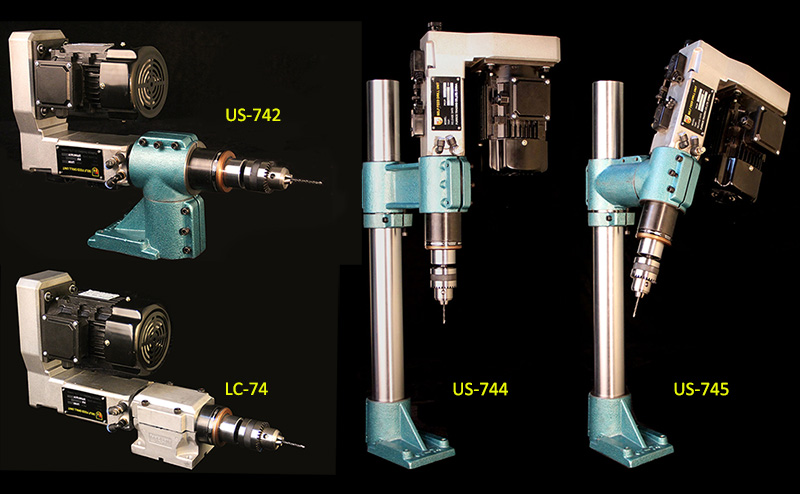

3. Fixed bracket

Such desktop support is suitable for any machining directions, which can fix the Drilling Units angle freely.


PURROS® Self Feed Drilling Unit PR3P Application


PURROS® Special Purpose Machine

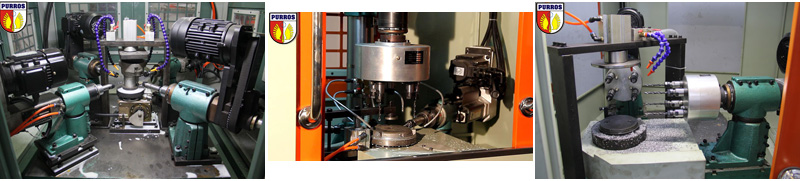

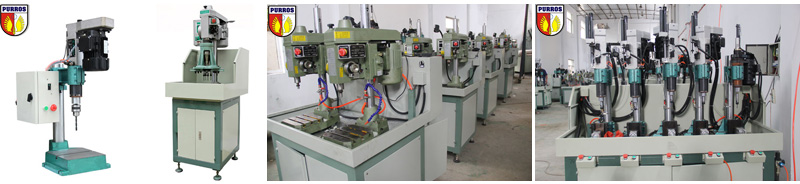

Multiple Drilling or Tapping Machine

Multiple Drilling or Tapping Machine

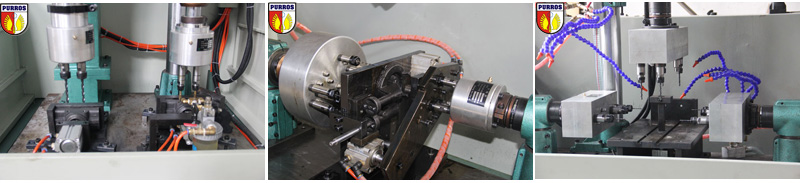

Multi Station Drilling or Tapping Machine

Multi Station Drilling or Tapping Machine

Rotary Index Drives Special Purpose Machine

Rotary Index Drives Special Purpose Machine

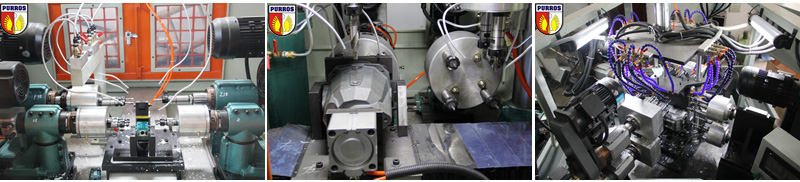

Sliding Table Special Purpose Machine

Sliding Table Special Purpose Machine

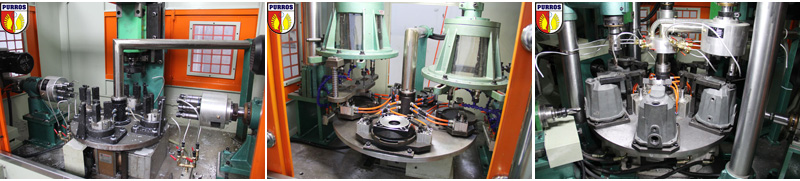

Rotary Table Special Purpose Machine

Rotary Table Special Purpose Machine
