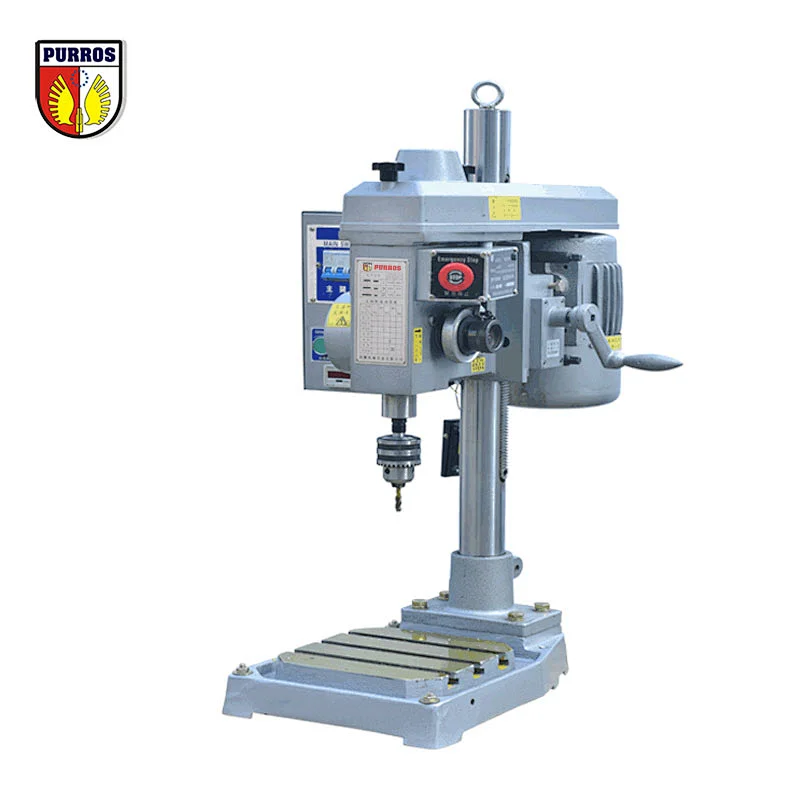

Fully automatic tapping and retracting. The workpiece won't lift, which does not require special hold-down to simplify jig. Suitable for tapping soft and hard materials. The gear type fully automatic tapping machine is especially ideal for workpiece needs to be inspected by thread gauge.

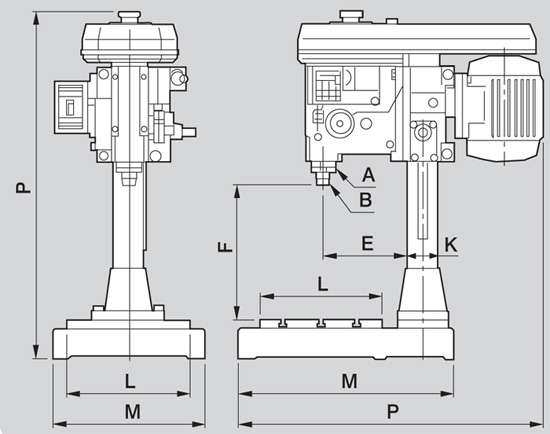

| unit : mm | ||||
| MODEL | ITEM | PR-DGT3 | PR-DGT4 | PR-DGT5 |
| A | Diameter of quill | Ø42 | Ø70 | Ø85 |
| B | Spindle taper | JT 2# | MT 2# | MT 3# |
| C | Swing | 330 | 430 | 460 |
| D | Spindle travel | 45 | 65 | 65 |
| E | Spindle to column | 184 | 237 | 252 |
| F | Spindle to table | 350 | 470 | 600 |
| G | Thread pitch | Upon request | Upon request | Upon request |
| H | Tapping capacity | Ø1-Ø8 | Ø3-Ø16 | Ø8-Ø32 |
| K | Column diameter | Ø52 | Ø85 | Ø95 |
| L | Table size | 225×230 | 340×360 | 420×375 |
| M | Base sizes | 415x300 | 580x425 | 600x480 |
| N | Speed 50Hz | 1340/760/420rpm | 560/400/260rpm | 280/150/80rpm |
| O | Motor | 0.75-1.1Kw | 1.5Kw | 2.2Kw |
| P | Machine sizes | 615x330x755 | 825x425x1040 | 825x480x1200 |
| Q | Machine weight | 145Kg | 310Kg | 380Kg |
