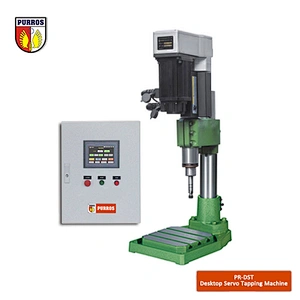

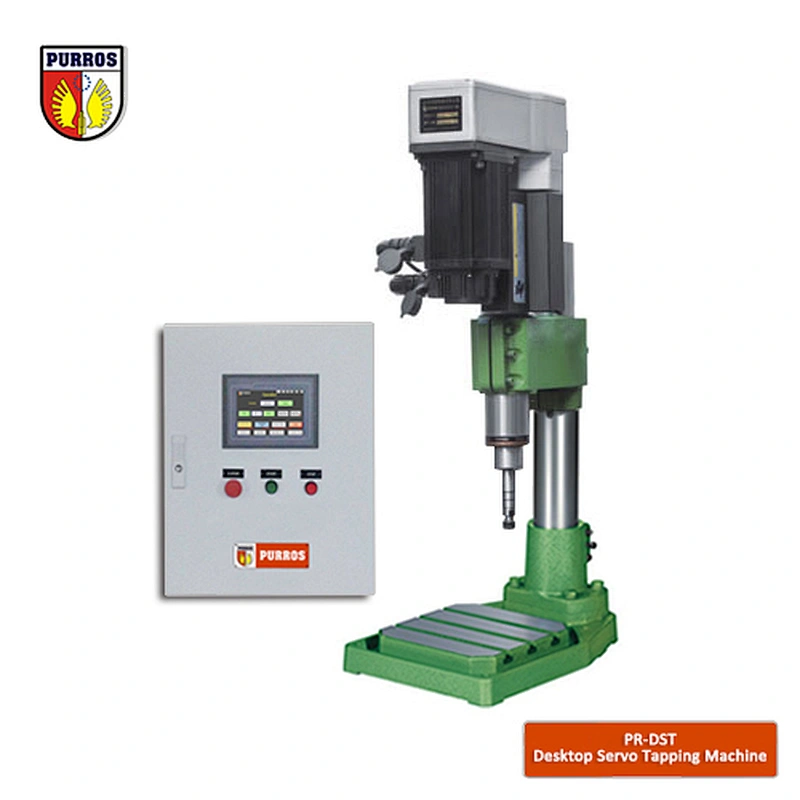

Desktop Servo Tapping Machine PR-DST
Desktop Servo Tapping Machine PR-DST

Desktop Servo Tapping Machine PR-DST

Model NO.
PR-DST
Spindle motors: 2.3 kw

Standard stroke: 80mm

Processing capacity: S45C/M16

Product description: PR-DST Desktop Servo Tapping Machine spindle adopts servo motor, when the spindle motor rotates, it drives the feed screw rod forward and backward. It can set the spindle rotation speed, depth
Quantity:
Description:
PR-DST Desktop Servo Tapping Machine spindle adopts servo motor, when the spindle motor rotates, it drives the feed screw rod forward and backward. It can set the spindle rotation speed, depth and feed rate freely by touch screen within the program, ideal for hole tapping. Furthermore, as cycle time can be greatly reduced using a second home position, accuracy and efficiency of tapping dramatically improves. It is possible to attach multi spindle head & automatic fixture to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:
MODELPR-DST3PR-DST5
Machine tool dimension300×450×900mm300×450×1000mm
Working table effective size230×230mm230×230mm
Column diameterΦ74mmΦ104mm
Spindle diameterΦ50mmΦ70mm
Spindle taperJT6B18
Spindle nose to table180mm220mm
Spindle full stroke80mm80mm
Spindle speed0-3000rpm0-3000rpm
Spindle Motor power1.8Kw2.3Kw
Tapping capacityS45C/M12S45C/M16
Fixture systemOptionalOptional
Control systemPLCPLC
Control panelTouch ScreenTouch Screen
Total weight70Kg100Kg


Desktop Servo Tapping Machine With 4 Spindles Tappnig Head


Subscribe to PURROS YouTube channels and see more special purpose machine videos


Purros can designs and builds a wide variety of Multiaspect Special Purpose drilling & tapping chamfering Machines to suit customer's product needs.
If you also want to know whether the special purpose machine is suitable for your product, please send drawings or product pictures to our email (sale@purros.com) or Send Inquiry to us, and the engineer will reply to you at the first time and provide machine design, consultation and quotation of the scheme for free.
