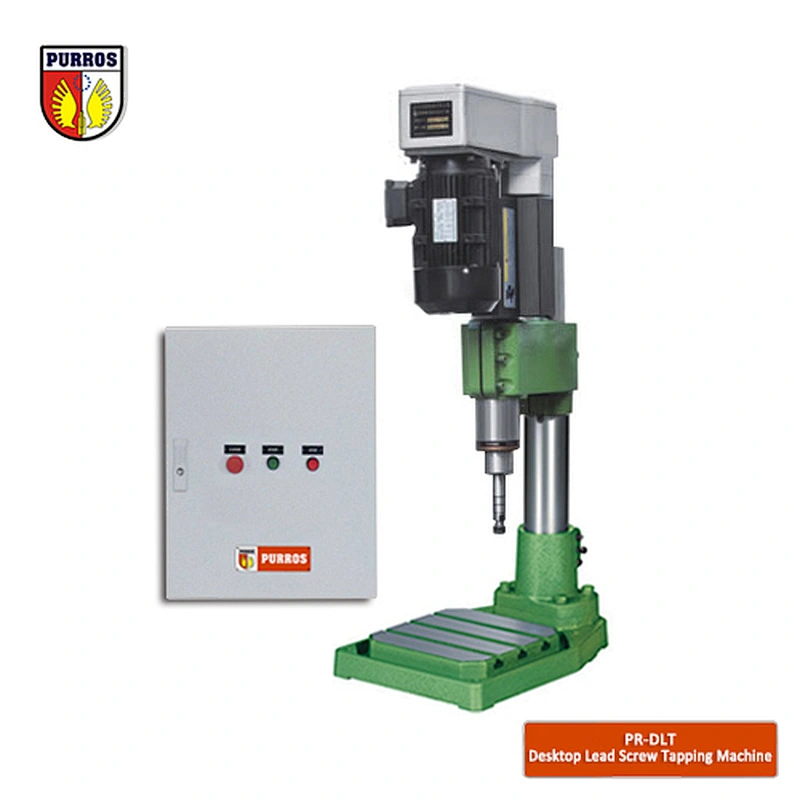

Desktop Lead Screw Tapping Machine

Model NO.: PR-DLT

Spindle motors: 1.1 kw

Standard stroke: 80mm

Processing capacity: S45C/M16

Product description: PR-DLT Desktop Lead Screw Tapping Machine uses the spindle motor to drive the screw rod forward and backward through the belt pulley, To change the speed and pitch of the spindle, it needs to be adj

Quantity:

Product Description
Application Description

Description:
PR-DLT Desktop Lead Screw Tapping Machine uses the spindle motor to drive the screw rod forward and backward through the belt pulley, To change the speed and pitch of the spindle, it needs to be adjusted by the pulley and gear. It is possible to attach multi spindle head & automatic fixture to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:

MODEL	PR-DLT3	PR-DLT5
Machine tool dimension	300×450×900mm	300×450×1000mm
Working table effective size	230×230mm	230×230mm
Column diameter	Φ74mm	Φ104mm
Spindle diameter	Φ50mm	Φ70mm
Spindle taper	JT6	B18
Spindle nose to table	180mm	220mm
Spindle full stroke	80mm	80mm
Spindle speed	Optional	Optional
Spindle Motor power	0.75Kw	1.1Kw
Tapping capacity	S45C/M12	S45C/M16
Fixture system	Optional	Optional
Total weight	70Kg	100Kg
