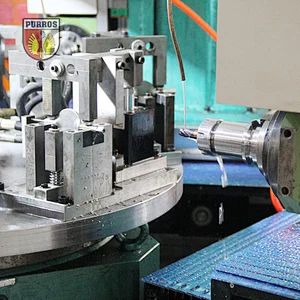

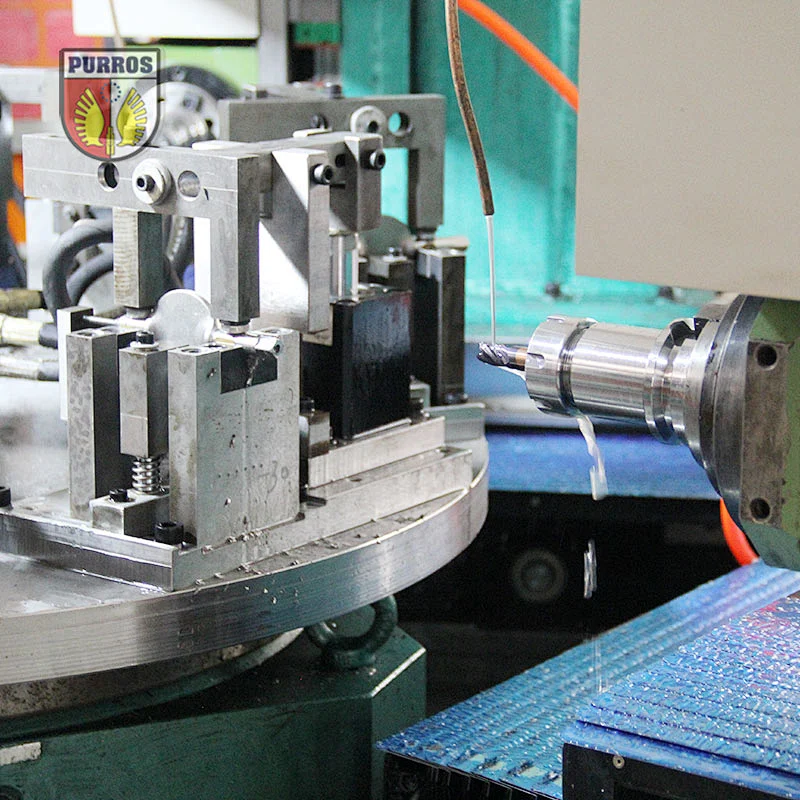

Rotary auto drilling & milling machine for steel butterfly disc
Rotary auto drilling & milling machine for steel butterfly disc
Rotary auto drilling & milling machine for steel butterfly disc
Rotary auto drilling & milling machine for steel butterfly disc
Rotary auto drilling & milling machine for steel butterfly disc

Rotary auto drilling & milling machine for steel butterfly disc

Model NO.
PR-CA95

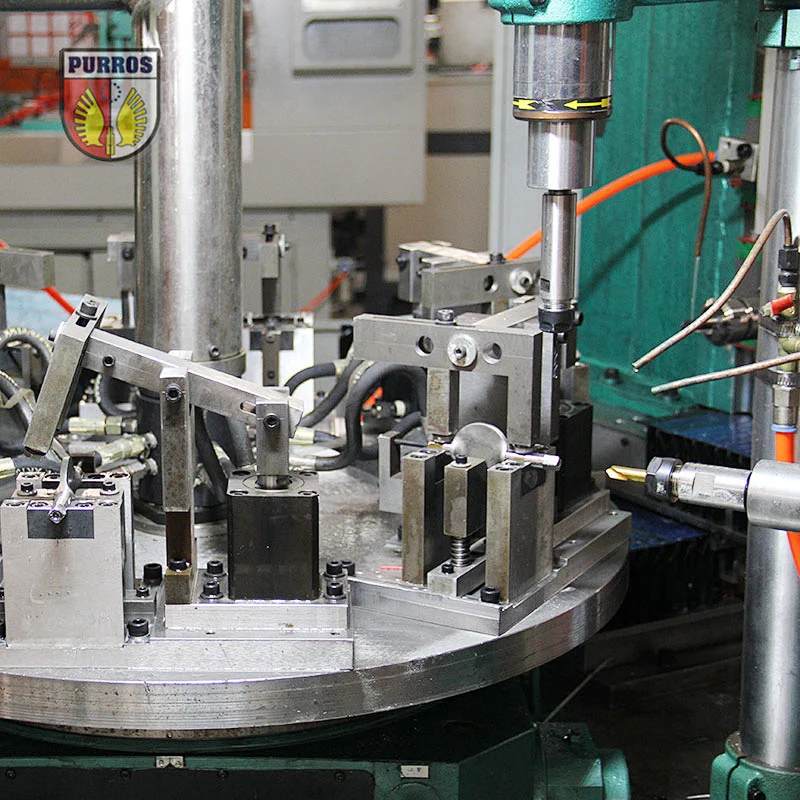

Rotary auto drilling & milling machine for steel butterfly disc adopts self feed drilling machine, milling spindle head with servo slide table, oil pressure rotary table, one-time clamping and PLC control. Ordinary people can quickly use the machine to complete the drilling & milling processing of products with high efficiency and high precision
Quantity:

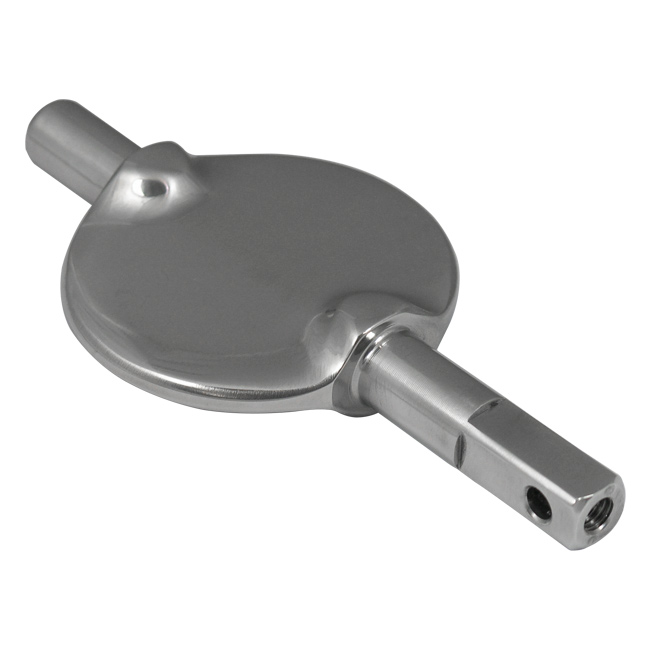

This is the 316 stainless steel butterfly disc. The product requires milling 4 faces and drilling, Please see the figure below.

The specific processing steps are as follows:

Put the butterfly valve disc into the automatic fixture, the fixture will clamp automatically, milling spindle head with servo slide table will start drilling, rotary table rotation, then milling spindle head with servo slide table will start milling, rotary table rotation, milling spindle head with servo slide table will start milling, rotary table rotation, auto feed drilling machine will start chamfering, rotary table rotation and the fixture will open automatically.


Rotary auto drilling & milling machine for steel butterfly disc Processing video




Subscribe to PURROS YouTube channels and see more special purpose machine videos


Purros can designs and builds a wide variety of Multiaspect Special Purpose drilling & tapping chamfering Machines to suit customer's product needs.
If you also want to know whether the special purpose machine is suitable for your product, please send drawings or product pictures to our email (sale@purros.com) or Send Inquiry to us, and the engineer will reply to you at the first time and provide machine design, consultation and quotation of the scheme for free.

Our Service

1. Before payment
a. Fastly and professional reply to you about your questions for our special purpose machine.
b. Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
c. Free professional design for each customer especially.
d. Welcome to visit our factory.

2. After-Sales Service
We will send engineers / technicians to make commissioning at buyer’s factory, train the machine works well, and also supply the technical support for free and spare parts at good price always.

3. Guarantee Period
One year. During the guarantee period, the seller guarantee to solve all problems may occur due to machine’s quality or wrong design, and to provide all necessary spare parts for repair, Seller can send the technician to buyer’s factory on seller’s account if problem is serious and can’t be solved by Buyer.

4. Payment Terms
30% as deposit, 70% after the machine is ready before delivery.

5. Lead Time
Our delivery time generally it is 30-40 days if the machines are in stock, or it is 70-90 days if the machines are not in stock, it is according to quantity.

Packaging & Shipping
