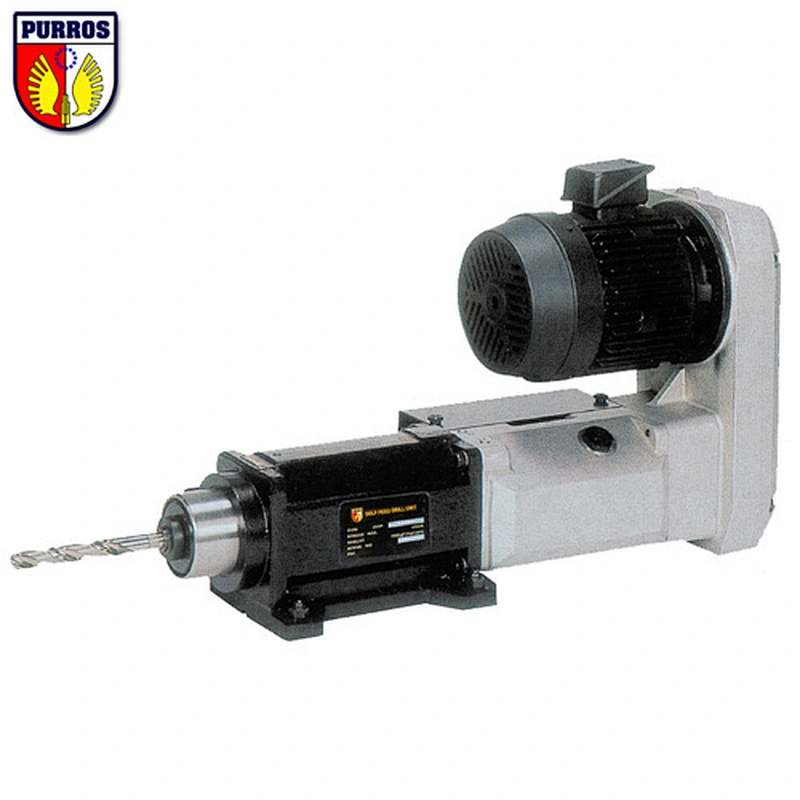

Self Feed Drill Units PR6P
Self Feed Drill Units PR6P

Self Feed Drill Units PR6P

Model NO.
PR6P
Minimum order quantity:
1
Spindle motors: 1.5kw,2.2kw

Spindle speed: 220-3500 rpm

Standard stroke: 150mm

Drilling capacity: Aluminum Φ24, Cast iron Φ21, Steel Φ19

Product description: Drilling capacity: Aluminum Φ24, Cast iron Φ21, Steel Φ19. AutomaticDrill provides pneumatic auto feed drilling heads, 1.5 kw, 220-3500 rpm, 150mm Stroke, automated drill equipment and auto drilling
Quantity:
Self Feed Drill Unit PR6P Application

Self Feed Drill Unit & Tapping Spindle Head

PURROS® Self Feeding Drilling Unit PR6P Parameters

Model: PR6P
No-load speed: 220-3500R/M
Drilling diameter: Aluminum: 9-24mm / Cast iron: 3-21mm / Steel: 3-19mm
Spindle stroke: 150mm
Cutting feed stroke: 40mm, 60mm, 80mm,100mm,130mm
Motor power: 1.5/2.2kw
Feed thrust: 5200N
Air consumption: 14L

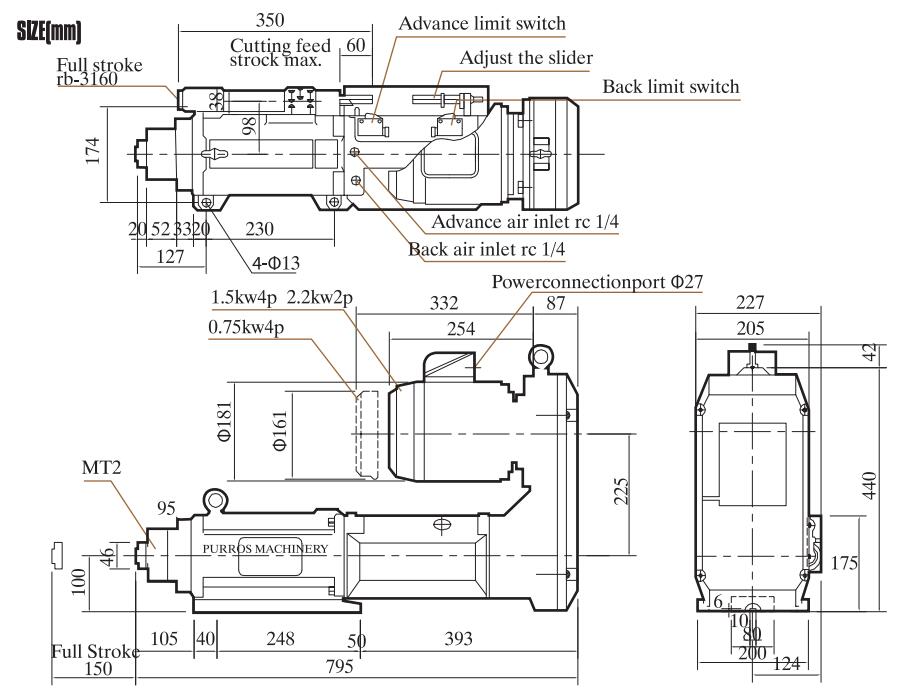

PURROS® Self Feeding Drilling Unit PR6P Size


PURROS® Self Feeding Drilling Unit PR6P Parameters
Model
number
No-Load rotational speedChucking
capacity
Drilling capacityStrokeMotorThrustWeight
50 Hz60 HzAlIronSteelTotal
stroke
Cutting
stroke
OutputPoles
number
min-1mmmmmmmmkwPNkg
PR6P-243535004200139331501301.525200100
PR6P-2422220027001244
PR6P-24141400170016146.56
PR6P-2411110013001698
PR6P-2408850100020181110
PR6P-24077008501914122.24
PR6P-2406550650201615
PR6P-240550060026211716
PR6P-2404400480221817
PR6P-2403350430231918
PR6P-2402220270242119


NOTE:

1. The selection of models should be based on the shape of the work, material, cutting characteristics, diameter and material of tools, rotation speed (cutting speed), etc.
2. The drilling capacity displayed in the above table is based on values representing a drilling depth of two times the diameter of the drill.
3. The standard attachment for the hydro speed regulator is RB-3140. Please specify an optional Hydro Speed Regulator if required. (Optional Hydro Speed Regulator Models: RB-3160, RB-31100, R-3180A, R-31130A)
4. Maximum weight of the attachment that can be mounted when machining downwards is 50 kg.
5. Make sure to use a collet chuck or spindle nose when the hardness of carbide drills and tool shanks is higher than that of general HSS (high-speed steel) drills.

Features:

1. High-precision
Core technology of Electro Pneumatic Drilling Units is played very well, which completely strengthened the versatility of the product and thus made the high precision of Drilling Units reflected extremely.
2. High rigidity
Axial rail structure is used, which greatly improved the overall rigidity and fully guaranteed the stability of the hole machining.
3. High performance
A unique dual sealing structure and round body that is easy and convenient to be installed are available at the end of spindle, which can meet variety of holes machining requirement.


Products can be equipped with Self Feeding Drilling Unit PR6P

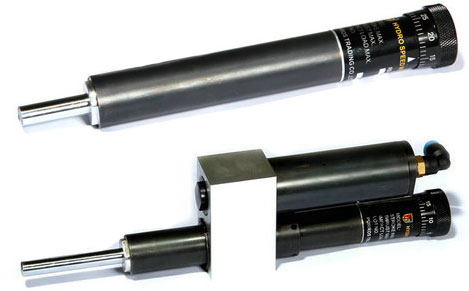

1. Hydro Speed Regulator

Speed can be adjusted arbitrarily from lower to higher by a hydraulic feeding speed control device.

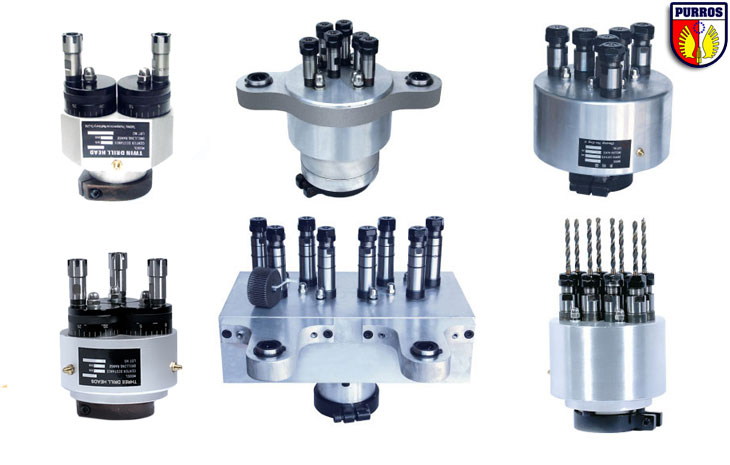

2. Multiple Spindle Heads

Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.

PURROS® Special Purpose Machine

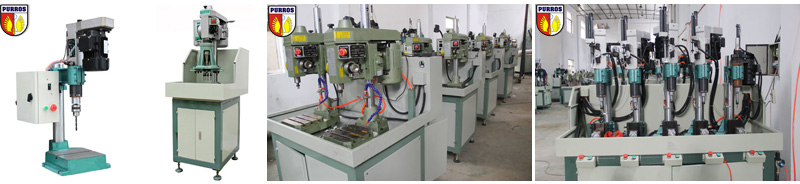

Multiple Drilling or Tapping Machine

Multiple Drilling or Tapping Machine

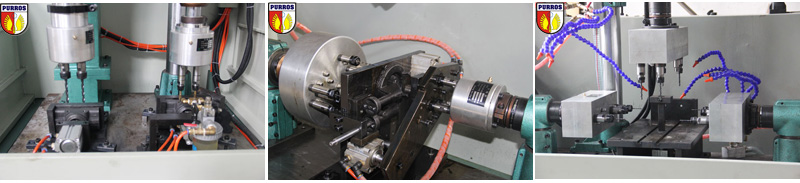

Multi Station Drilling or Tapping Machine

Multi Station Drilling or Tapping Machine

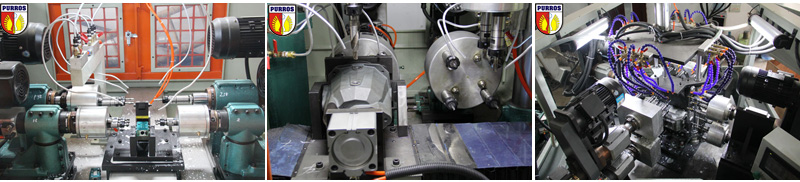

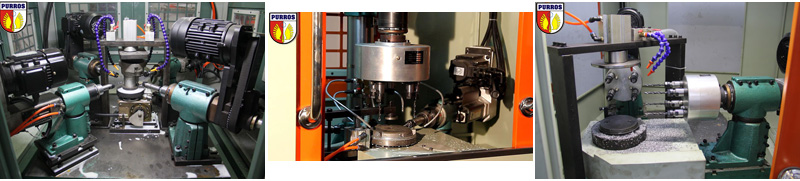

Rotary Index Drives Special Purpose Machine

Rotary Index Drives Special Purpose Machine

Sliding Table Special Purpose Machine

Sliding Table Special Purpose Machine

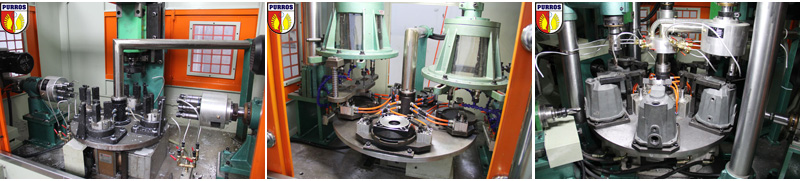

Rotary Table Special Purpose Machine

Rotary Table Special Purpose Machine
