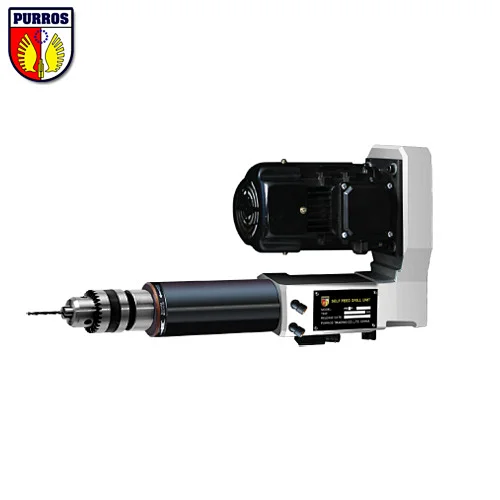

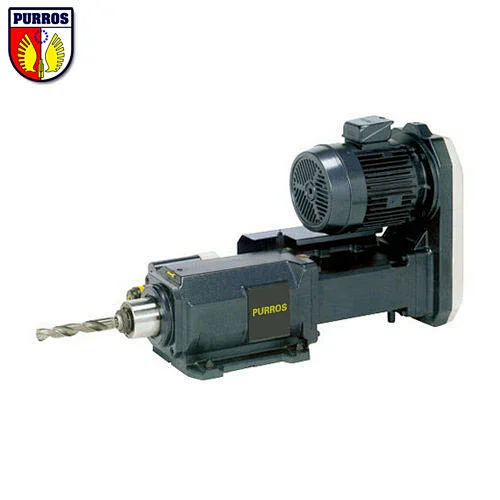

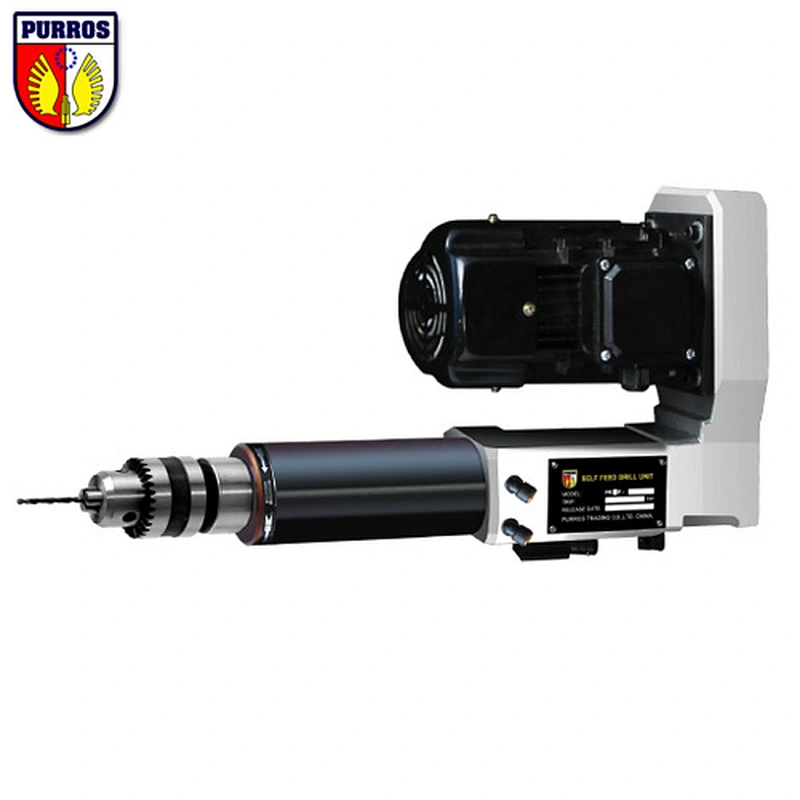

Self Feed Drill Units PR5P
Self Feed Drill Units PR5P

Self Feed Drill Units PR5P

Model NO.
PR5P
Minimum order quantity:
1
Spindle motors: 1.5 kw / 2.2kw

Spindle speed: 400-6100 rpm

Standard stroke: 100mm

Drilling capacity: Aluminum Φ20, Cast iron Φ17, Steel Φ16

Product description: Drilling capacity: Aluminum Φ20, Cast iron Φ17, Steel Φ16. AutomaticDrill provides pneumatic auto feed drilling heads, 1.5 kw/2.2kw, 400-6100 rpm, 100mm Stroke, automated drill equipment and auto drilling
Quantity:
PURROS® Self Feeding Drilling Unit PR5P Parameters

Model: PR5P
No-load speed: 400-6100R/M
Drilling diameter: Aluminum: 3-20mm / Cast iron: 2-17mm / Steel: 2-16mm
Spindle stroke: 100mm
Cutting feed stroke: 40mm, 60mm, 80mm, 100mm
Motor power: 1.5kw/2.2kw
Feed driving: 2700N

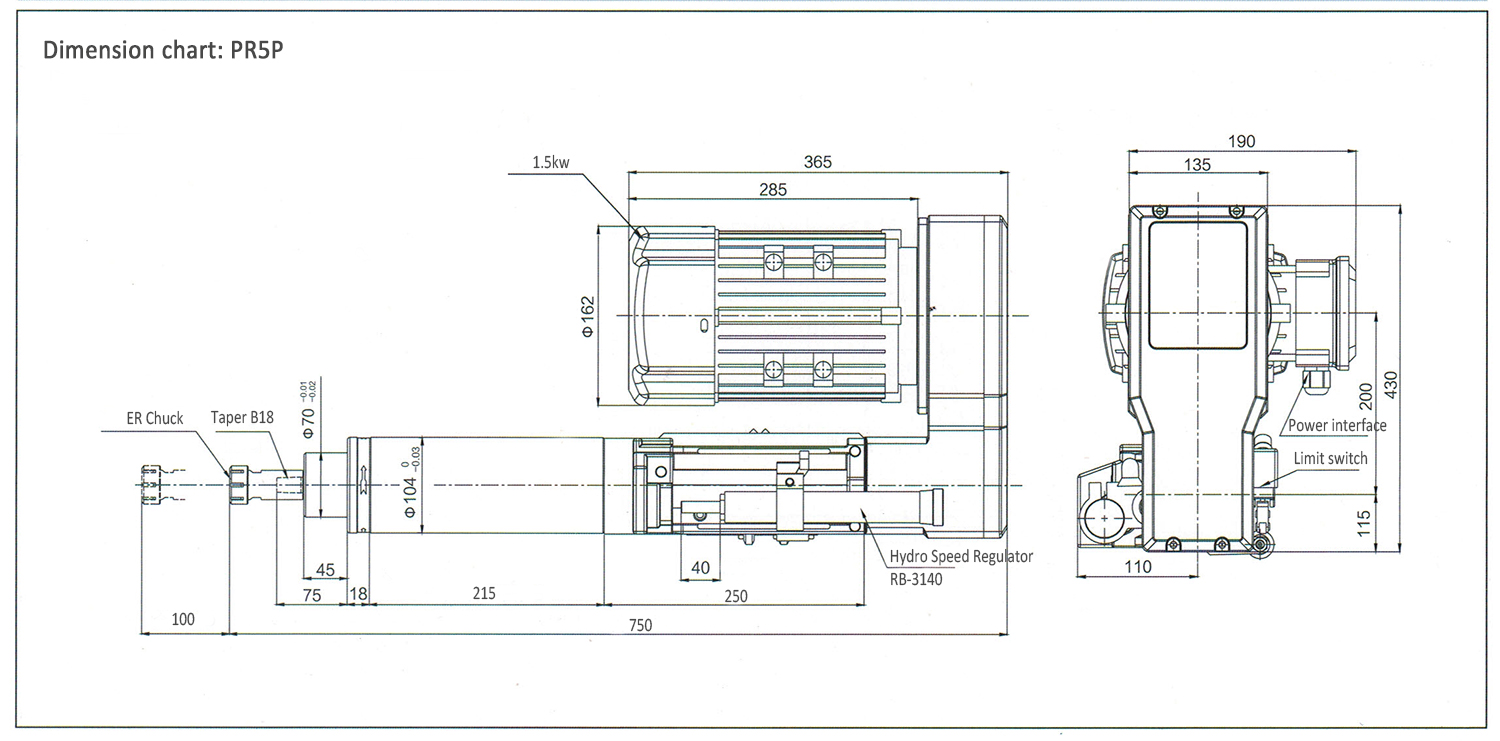

PURROS® Self Feeding Drilling Unit PR5P Size


PURROS® Self Feeding Drilling Unit PR5P Parameters

Model
number
No-Load rotational speedChucking
capacity
Drilling capacityStrokeMotorThrustWeight
50 Hz60 HzAlIronSteelTotal
stroke
Cutting
stroke
OutputPoles
number
min-1mmmmmmmmkwPNkg
PR5P-60616100730013mm3.52.51.5100801.52270038
PR5P-6061L15013045
PR5P-6045450054005.5421008038
PR5P-6045L15013045
PR5P-1330300036009631008038
PR5P-1330L15013045
PR5P-13202000240010741008038
PR5P-1320L15013045
PR5P-13141480180011971008038
PR5P-1314L15013045
PR5P-13111100130020mm13119100802.2438
PR5P-1311L15013045
PR5P-13077509001614121008038
PR5P-1307L15013045
PR5P-13066007001816141008038
PR5P-1306L15013045
PR5P-13044005002017161008038
PR5P-1304L15013045


NOTE:
1. The selection of models should be based on the shape of the work, material, cutting characteristics, diameter and material of tools, rotation speed (cutting speed), etc.
2. The drilling capacity displayed in the above table is based on values representing a drilling depth of two times the diameter of the drill.
3. The standard attachment for the hydro speed regulator is RB-3140. Please specify an optional Hydro Speed Regulator if required. (Optional Hydro Speed Regulator Models: RB-3160, R-3180A)
4. Maximum weight of the attachment that can be mounted when machining downwards is 15 kg.
5. Make sure to use a collet chuck or spindle nose when the hardness of carbide drills and tool shanks is higher than that of general HSS (high-speed steel) drills.

1. High-precision
Core technology of Electro Pneumatic Drilling Units is played very well, which completely strengthened the versatility of the product and thus made the high precision of Drilling Units reflected extremely.
2. High rigidity
Axial rail structure is used, which greatly improved the overall rigidity and fully guaranteed the stability of the hole machining.
3. High performance
A unique dual sealing structure and round body that is easy and convenient to be installed are available at the end of spindle, which can meet variety of holes machining requirement.

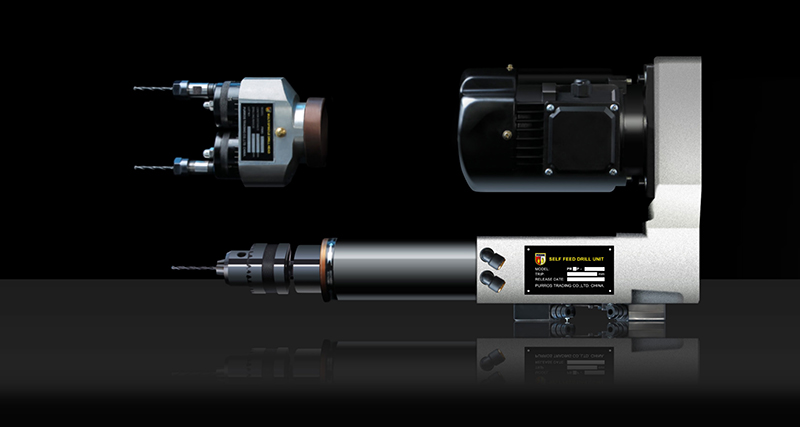

Products can be equipped with Self Feeding Drilling Unit PR5P

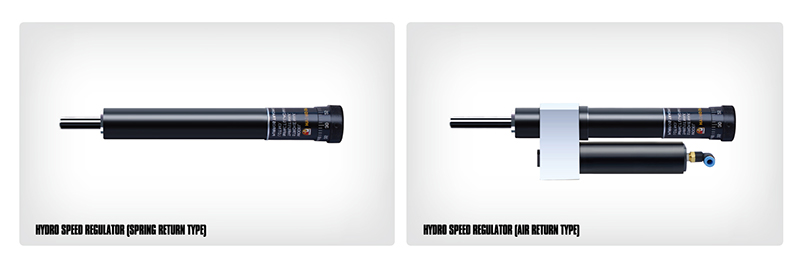

1. Hydro Speed Regulator
Speed can be adjusted arbitrarily from lower to higher by a hydraulic feeding speed control device.

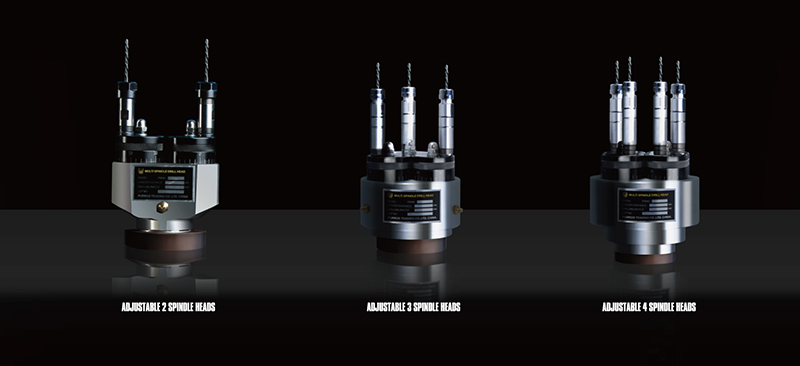

2. Multiple Spindle Heads

Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.



3. Fixed bracket

Such desktop support is suitable for any machining directions, which can fix the Drilling Units angle freely.


PURROS® Self Feed Drilling Unit PR5P Application


PURROS® Special Purpose Machine

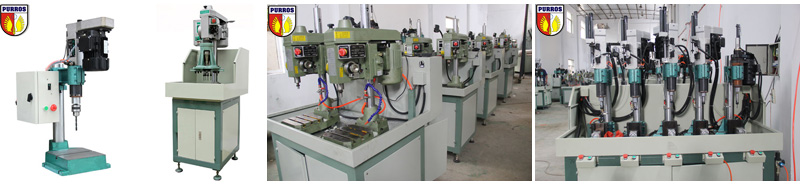

Multiple Drilling or Tapping Machine

Multiple Drilling or Tapping Machine

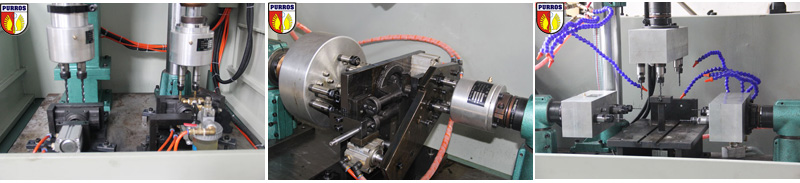

Multi Station Drilling or Tapping Machine

Multi Station Drilling or Tapping Machine

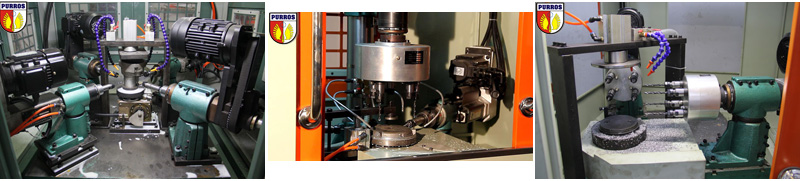

Rotary Index Drives Special Purpose Machine

Rotary Index Drives Special Purpose Machine

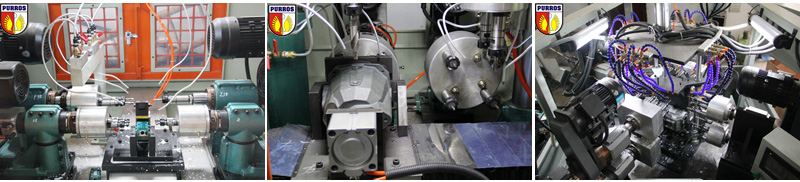

Sliding Table Special Purpose Machine

Sliding Table Special Purpose Machine

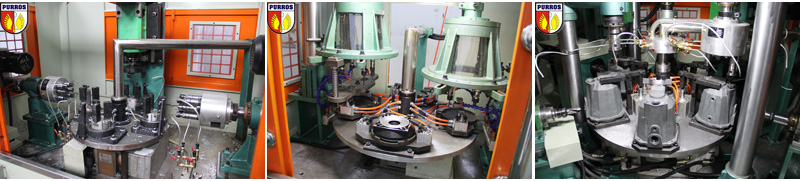

Rotary Table Special Purpose Machine

Rotary Table Special Purpose Machine
