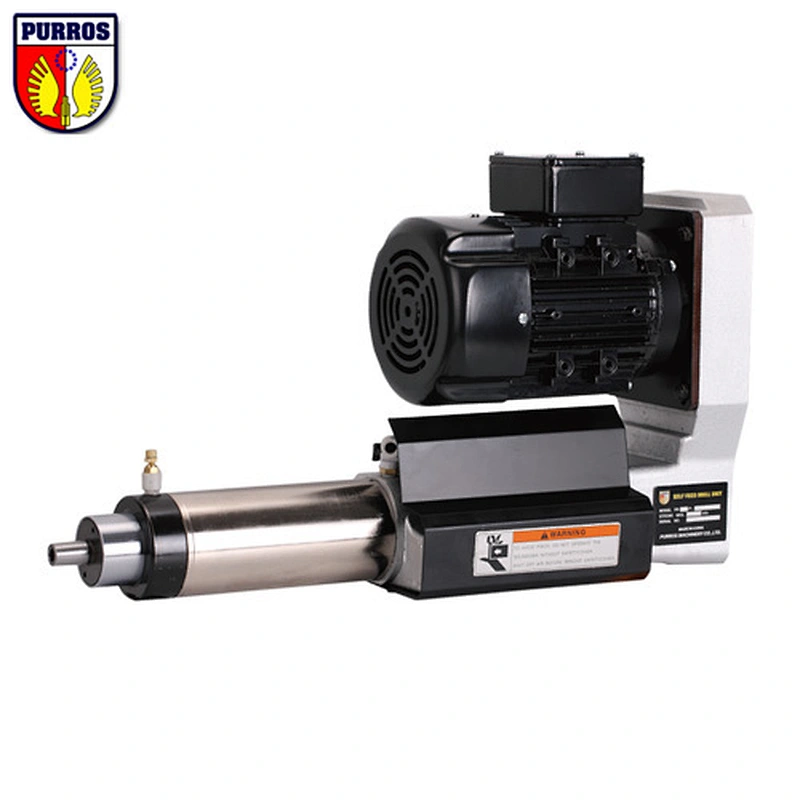

Self Feed Drill Units PR32P
Self Feed Drill Units PR32P

Self Feed Drill Units PR32P

Model NO.
PR32P
Spindle motors: 0.55 kw

Spindle speed: 600-7500 rpm

Standard stroke: 100mm, 150mm

Drilling capacity: Aluminum Φ12.5, Cast iron Φ10, Steel Φ9

Product description: Drilling capacity: Aluminum Φ12.5, Cast iron Φ10, Steel Φ9. AutomaticDrill provides pneumatic auto feed drilling heads, 0.55 kw, 600-7500 rpm, 100mm Stroke, automated drill equipment and auto drilling
Quantity:

PURROS® Self Feed Drilling Unit PR32P Parameters

Model: PR32P
 • No-load speed: 600-7500R/M
 • Drilling diameter: Aluminum: 3-12.5mm / Cast iron: 2-10mm / Steel: 1-9mm
 • Spindle stroke: 100mm/150mm
 • Cutting feed stroke: 40mm, 60mm, 80mm, 100mm, 130mm
 • Motor power: 0.37/0.55kw
 • Feed driving: 1250N
 • Air consumption: 3-5L

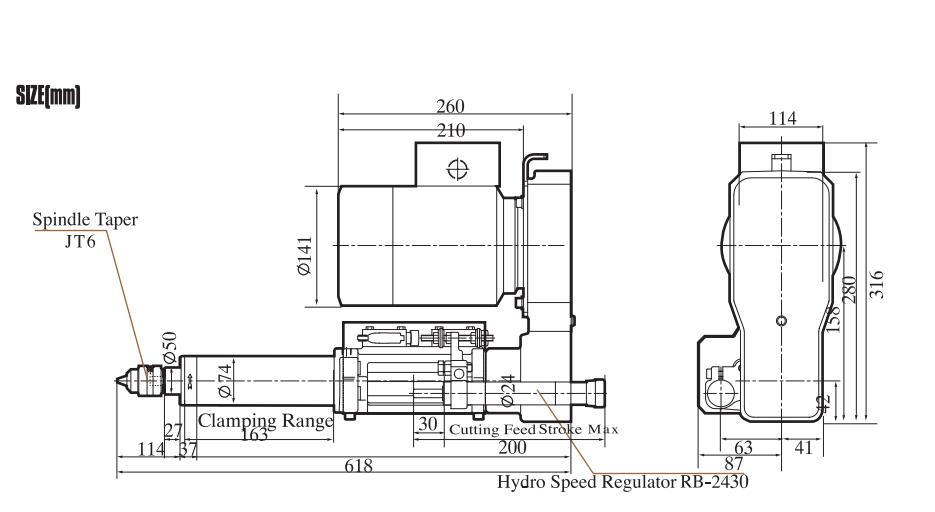

PURROS® Self Feeding Drilling Unit PR32P Size

PURROS® Self Feed Drilling Unit PR32P Parameters

Model
number
No-Load rotational speedChucking
capacity
Drilling capacityStrokeMotorThrustWeight
50 Hz60 HzAlIronSteelTotal
stroke
Cutting
stroke
OutputPoles
number
min-1mmmmmmmmkwPNkg
PR32P-1375750090006.53.31.51.5100800.552125021
PR32P-1375L15010024
PR32P-1355550066004.21.61.61008021
PR32P-1355L15010024
PR32P-1340400048005.52.22.21008021
PR32P-1340L15010024
PR32P-1330300036006.53.23.21008021
PR32P-1330L15010024
PR32P-1325250031001383.83.81008021
PR32P-1325L15010024
PR32P-13181800220095.54.5100800.75421
PR32P-1318L15010024
PR32P-131313001700106.561008021
PR32P-1313L15010024
PR32P-13101000120010.58.57.51008021
PR32P-1310L15010024
PR32P-1306600720129.58.51008021
PR32P-1306L15010024


NOTE:
1. The selection of models should be based on the shape of the work, material, cutting characteristics, diameter and material of tools, rotation speed (cutting speed), etc.
2. The drilling capacity displayed in the above table is based on values representing a drilling depth of two times the diameter of the drill.
3. The standard attachment for the hydro speed regulator is RB-2430. Please specify an optional Hydro Speed Regulator if required. (Optional Hydro Speed Regulator Models: RB-2460, R-2460A)
4. Maximum weight of the attachment that can be mounted when machining downwards is 12 kg.
5. Make sure to use a collet chuck or spindle nose when the hardness of carbide drills and tool shanks is higher than that of general HSS (high-speed steel) drills.

Features:

1. High-precision
Core technology of Electro Pneumatic Drilling Units is played very well, which completely strengthened the versatility of the product and thus made the high precision of Drilling Units reflected extremely.
2. High rigidity
Axial rail structure is used, which greatly improved the overall rigidity and fully guaranteed the stability of the hole machining.
3. High performance
A unique dual sealing structure and round body that is easy and convenient to be installed are available at the end of spindle, which can meet variety of holes machining requirement.


Products can be equipped with Self Feeding Drilling Unit

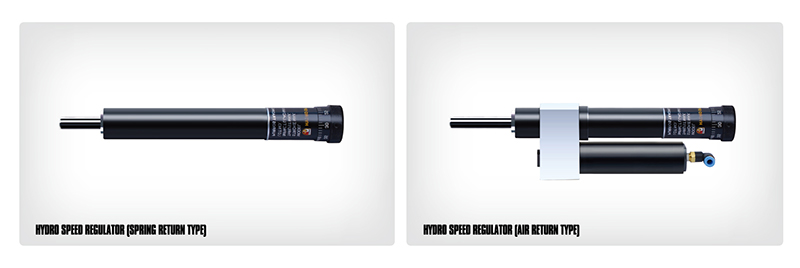

1. Hydro Speed Regulator
Speed can be adjusted arbitrarily from lower to higher by a hydraulic feeding speed control device.

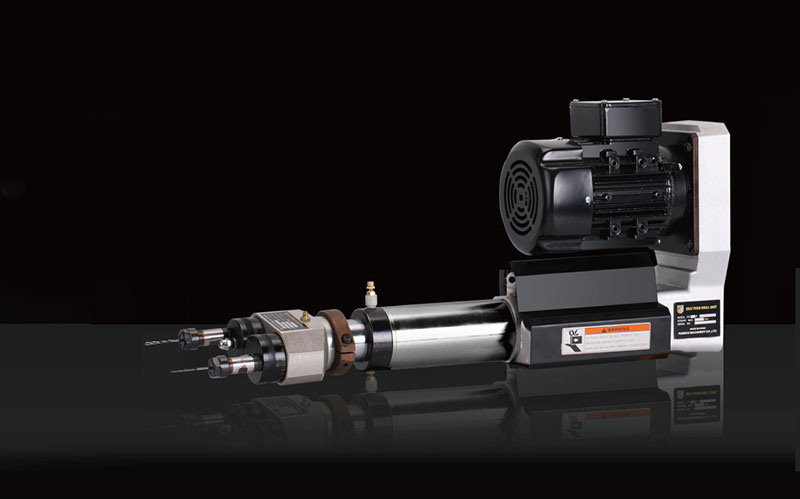

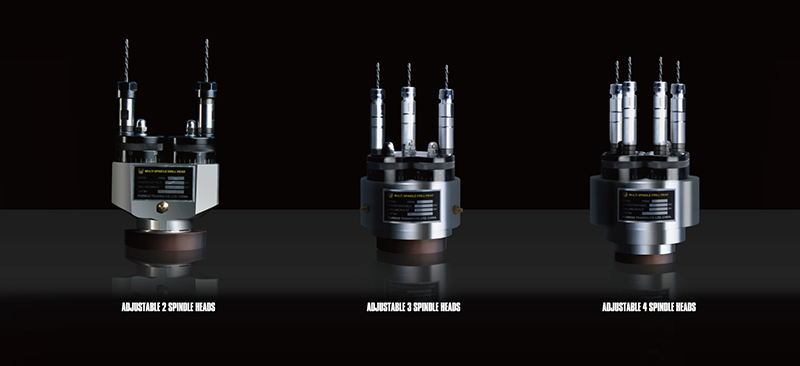

2. Multiple Spindle Heads

Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.

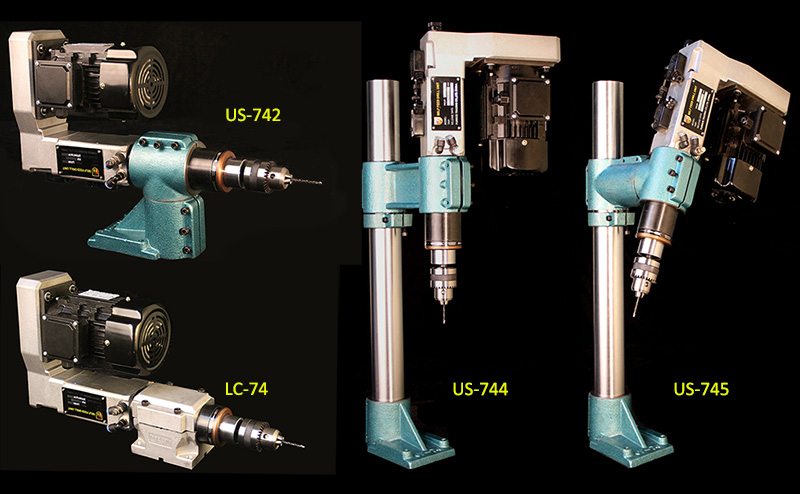

3. Fixed bracket

Such desktop support is suitable for any machining directions, which can fix the Drilling Units angle freely.


PURROS® Self Feed Drilling Unit PR32P Application


PURROS® Special Purpose Machine

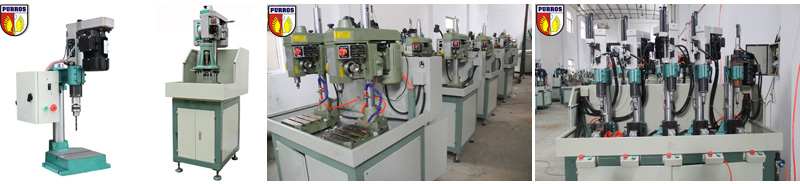

Multiple Drilling or Tapping Machine

Multiple Drilling or Tapping Machine

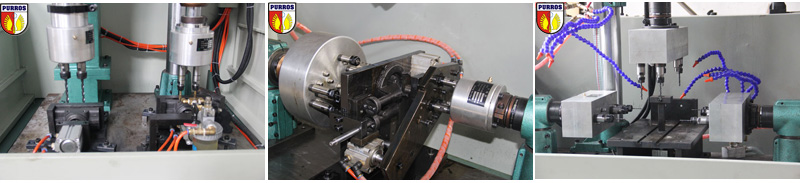

Multi Station Drilling or Tapping Machine

Multi Station Drilling or Tapping Machine

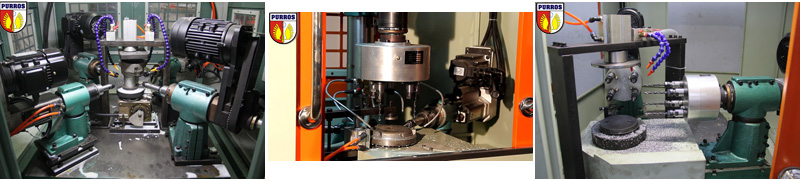

Rotary Index Drives Special Purpose Machine

Rotary Index Drives Special Purpose Machine

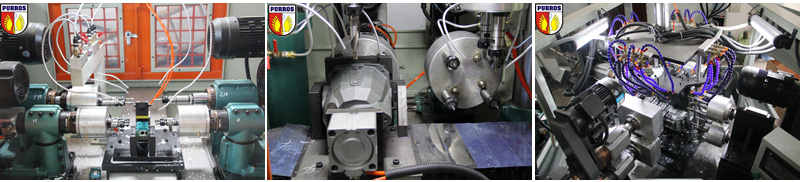

Sliding Table Special Purpose Machine

Sliding Table Special Purpose Machine

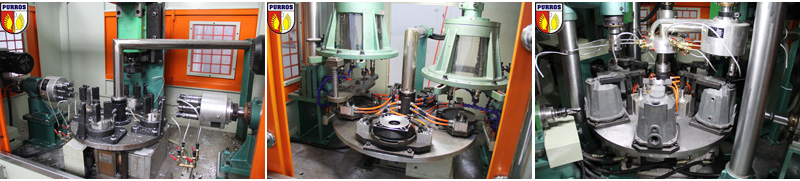

Rotary Table Special Purpose Machine

Rotary Table Special Purpose Machine
