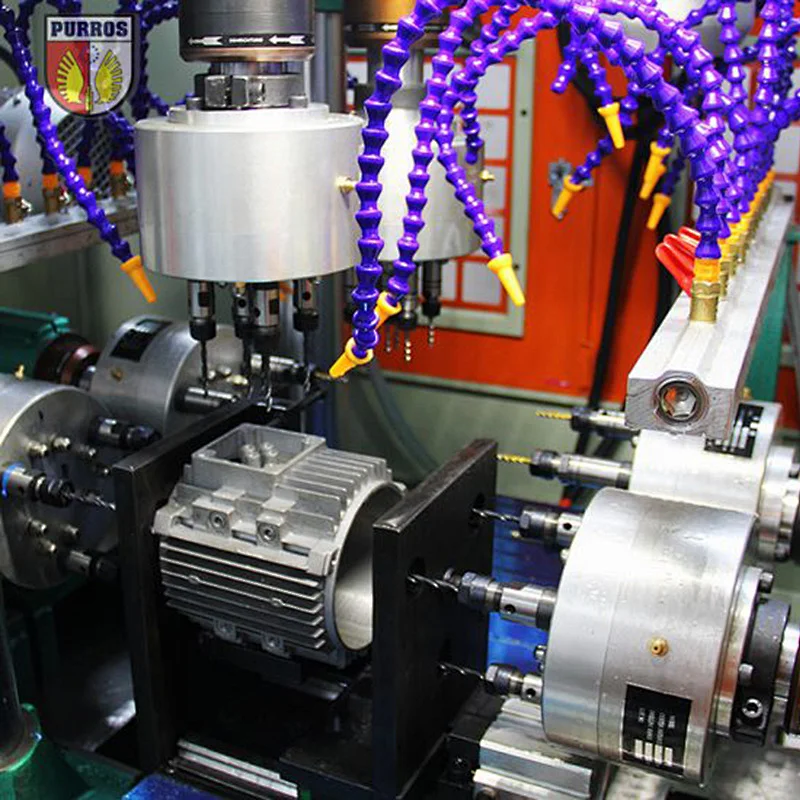

Servo Slide Multi Spindles Drilling & Tapping Machine

Model NO.: PR-CA96
Minimum order quantity:: 1

Product description: Put the motor shell into the automatic pneumatic fixture, the fixture will clamp automatically, 3 pneumatic automatic drilling power heads with 4-spindles drilling head will start drilling, then the servo slide will move automatically, 3 servo tapping machines plus 4-spindles tapping head will start tapping, the servo slide will return automatically and the fixture will open automatically.

Quantity:

Product Description

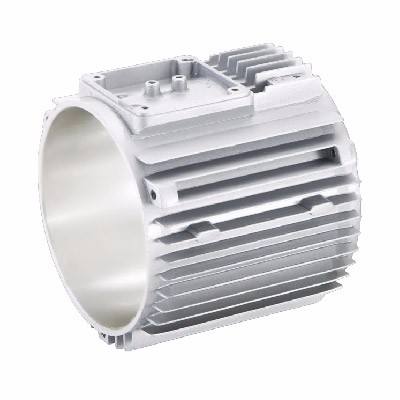

This is a motor shell made of aluminum. There are three holes on the left and right sides to be drilled and tapped, and there are also four holes on the top to be drilled and tapped.

servo slide multi spindles drilling tapping machine for motor shell

Therefore, we have designed the following schemes for customers:

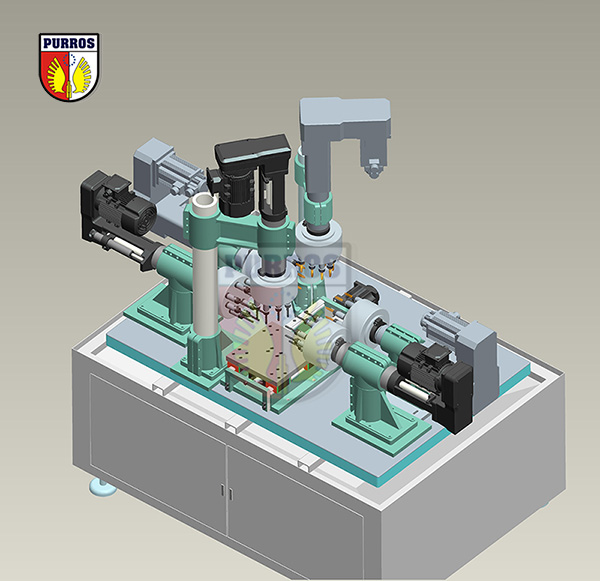

servo slide multi spindles drilling tapping machine 3D design for motor shell

The specific processing steps are as follows:

Put the motor shell into the automatic pneumatic fixture, the fixture will clamp automatically, 3 pneumatic automatic drilling power heads with 3-spindles drilling head & 4-spindles drilling head will start drilling, then the servo slide will move automatically, 3 servo tapping machines with 3-spindles tapping head & 4-spindles tapping head will start tapping, the servo slide will return automatically and the fixture will open automatically.

Servo Slide Multi Spindles Drilling & Tapping Special Purpose Machine Processing video

Subscribe to PURROS YouTube channels and see more special purpose machine videos

Purros can designs and builds a wide variety of Multiaspect Special Purpose drilling & tapping chamfering Machines to suit customer's product needs.
If you also want to know whether the special purpose machine is suitable for your product, please send drawings or product pictures to our email (sale@purros.com) or Send Inquiry to us, and the engineer will reply to you at the first time and provide machine design, consultation and quotation of the scheme for free.

Our Service

1. Before payment
a. Fastly and professional reply to you about your questions for our special purpose machine.
b. Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
c. Free professional design for each customer especially.
d. Welcome to visit our factory.

2. After-Sales Service
We will send engineers / technicians to make commissioning at buyer’s factory, train the machine works well, and also supply the technical support for free and spare parts at good price always.

3. Guarantee Period
One year. During the guarantee period, the seller guarantee to solve all problems may occur due to machine’s quality or wrong design, and to provide all necessary spare parts for repair, Seller can send the technician to buyer’s factory on seller’s account if problem is serious and can’t be solved by Buyer.

4. Payment Terms
30% as deposit, 70% after the machine is ready before delivery.

5. Lead Time
Our delivery time generally it is 30-40 days if the machines are in stock, or it is 70-90 days if the machines are not in stock, it is according to quantity.
